Name: Cast Steel Spring-Loaded Low-Lift Safety Valve A47H-16C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Spring-Loaded Low-Lift Safety Valve A47H-16C

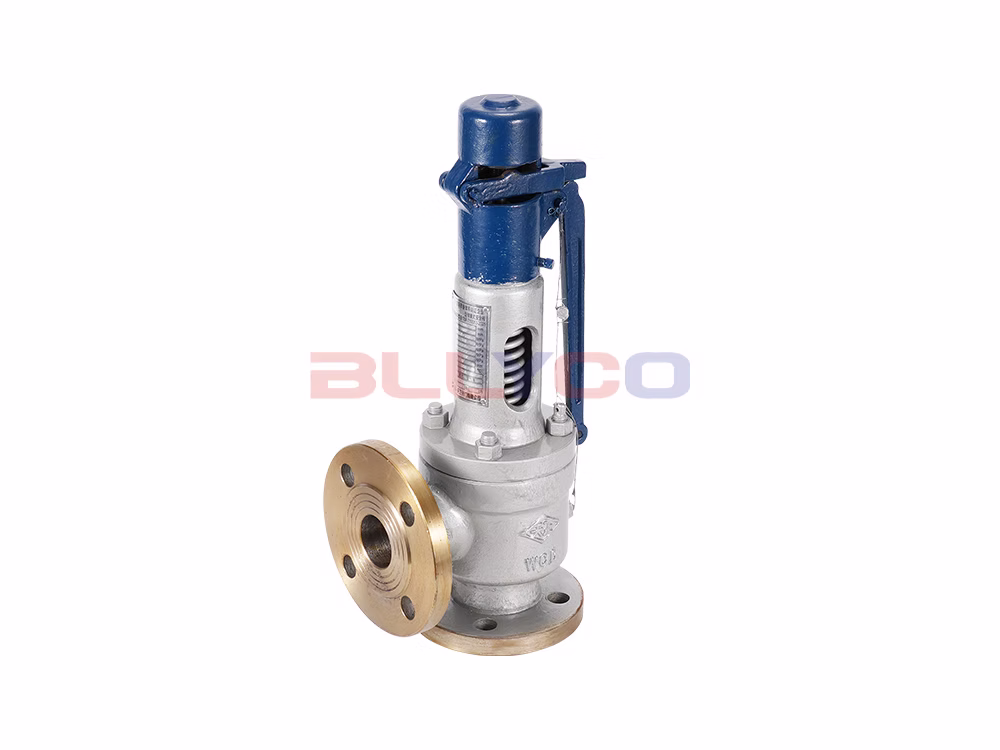

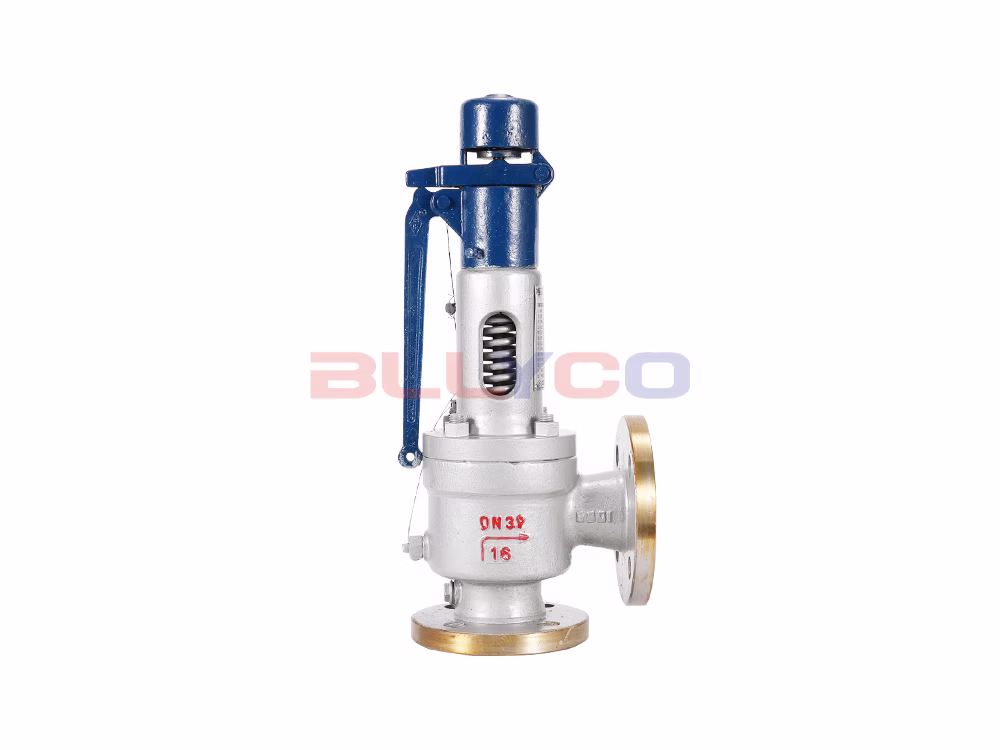

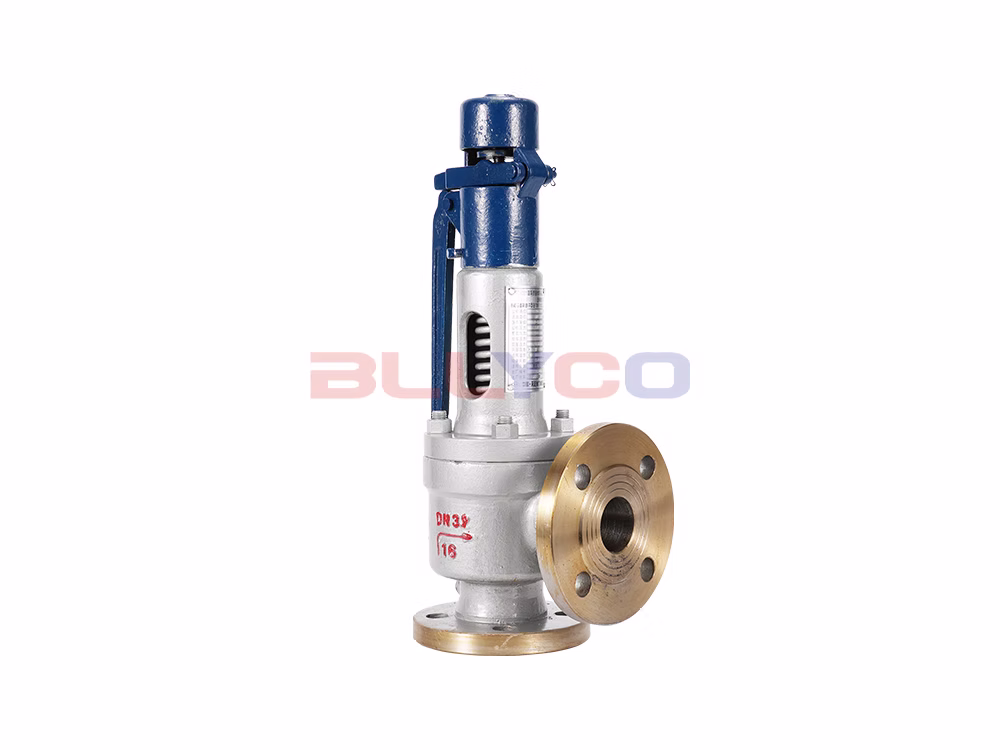

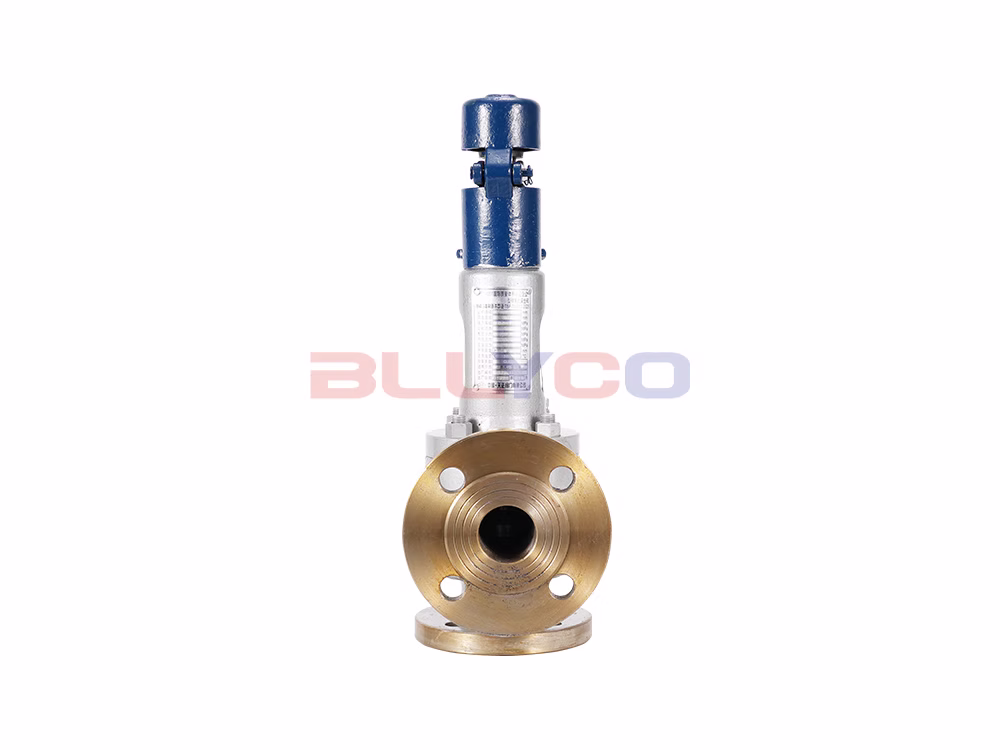

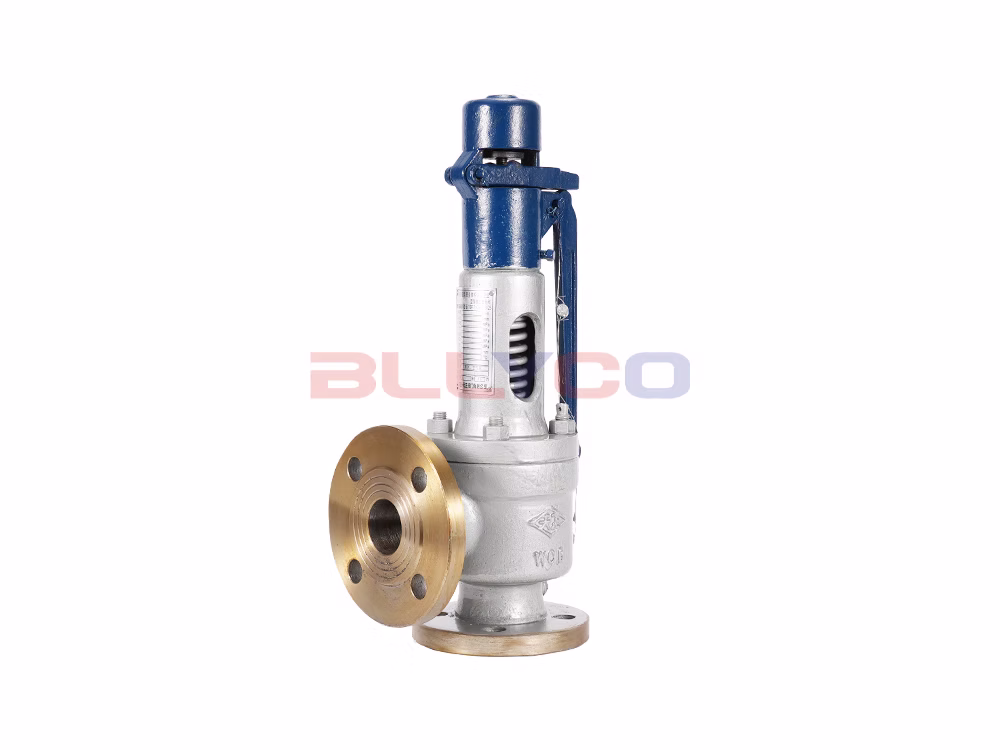

Cast Steel Spring-Loaded Low-Lift Safety Valve A47H-16C

Product Model: A47H-16C
Valve Body Material: Cast Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Air, steam, etc.
Operating Temperature: ≤350℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A47H spring-loaded low-lift safety valve is suitable for use on equipment or pipelines carrying media such as air and steam at operating temperatures of ≤350°C, serving as an overpressure protection device.

How It Works

When the pressure inside the equipment and piping exceeds the allowable limit, the valve opens automatically, allowing the contents to be fully discharged; when the pressure drops to the specified level, the valve closes automatically, ensuring the safe operation of the equipment and piping.

Product Specifications

Product Model	A47H-16C
Valve Body Material	Cast Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Air, steam, etc.
Operating Temperature	≤350℃

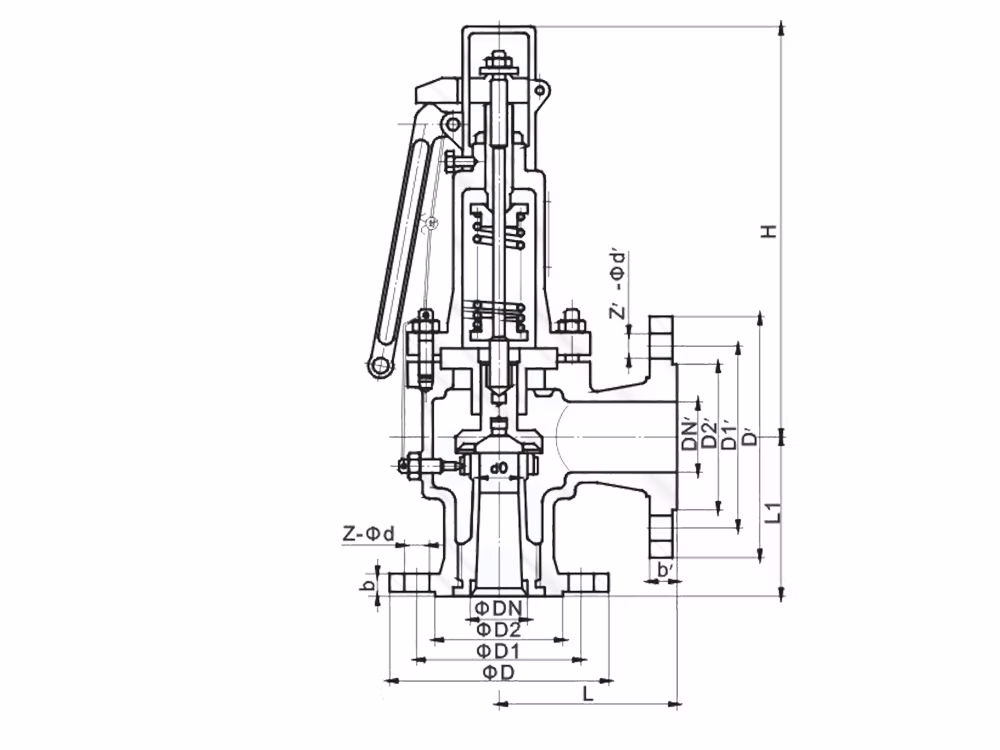

Product Size Guide

Nominal Diameter	do	DN	L	L1	≈H
DN20	15	20	100	85	298
DN25	20	25	100	85	298
DN32	25	32	115	100	310
DN40	32	40	120	110	315
DN50	40	50	135	120	377
DN65	50	65	140	130	415
DN80	65	80	160	135	420
DN100	80	100	170	160	539
DN125	100	125	190	190	624
DN150	125	150	205	195	636
DN200	150	200	240	230	772
DN250	200	250	350	320	970
