Name: Cast Steel Enclosed Spring-Loaded Low-Lift Safety Valve A41H-16C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Enclosed Spring-Loaded Low-Lift Safety Valve A41H-16C

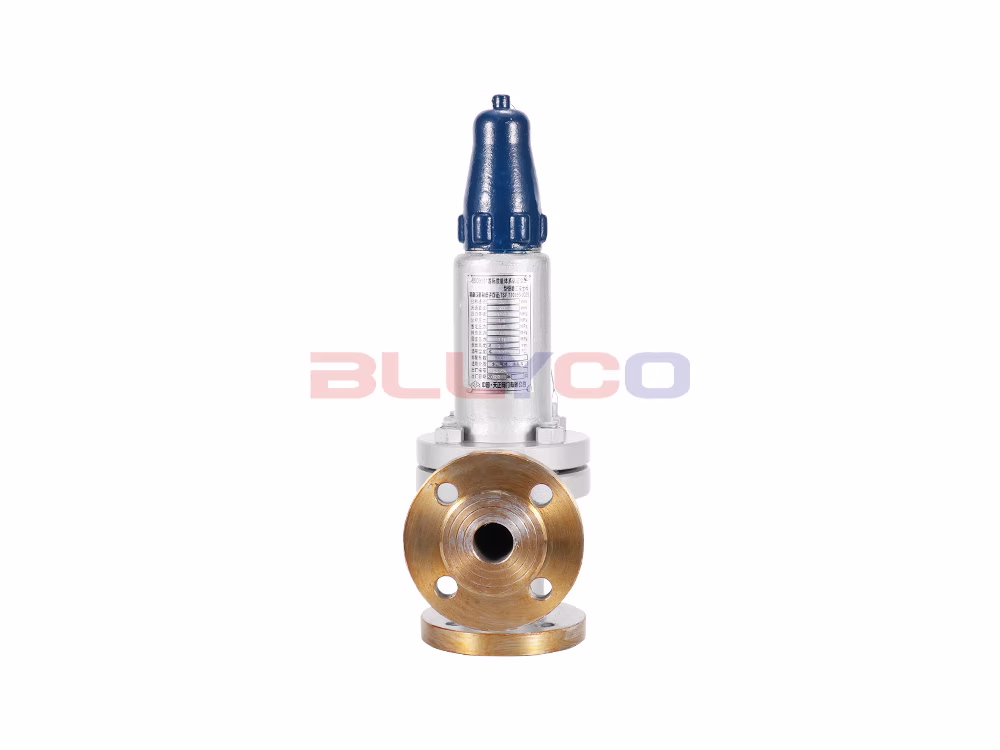

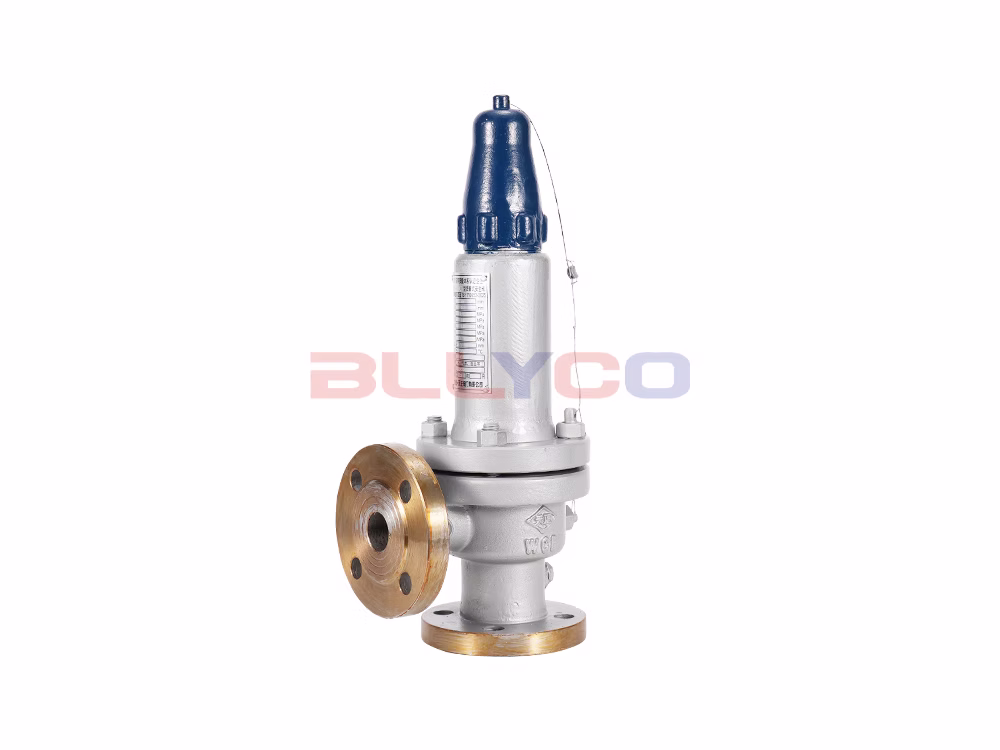

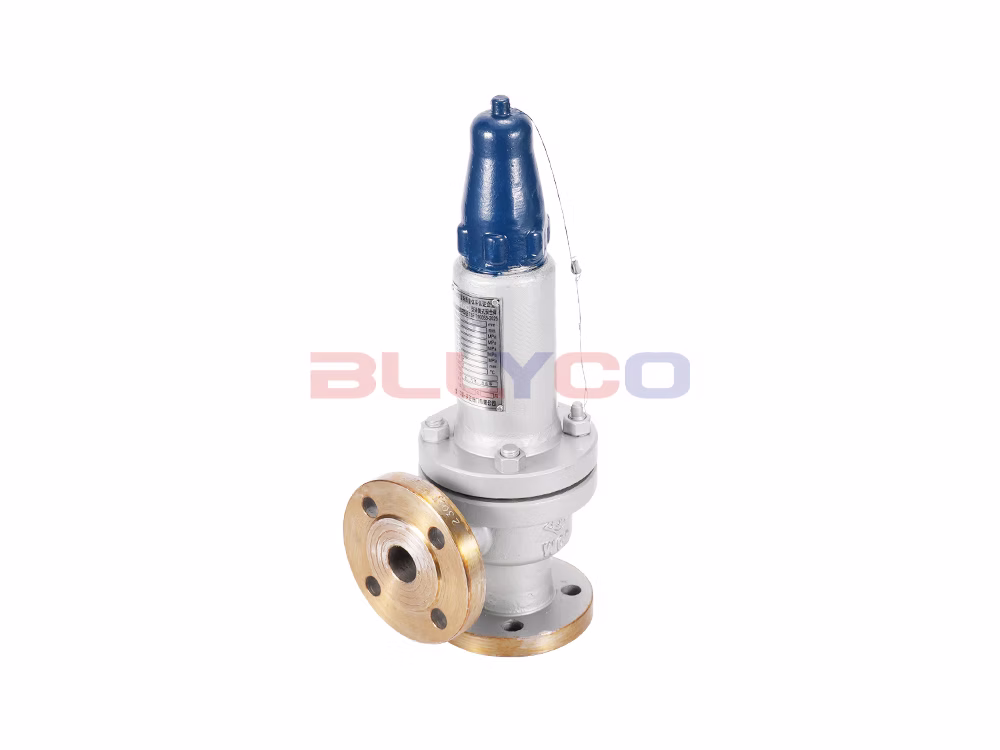

Cast Steel Enclosed Spring-Loaded Low-Lift Safety Valve A41H-16C

Product Model: A41H-16C
Valve Body Material: Cast Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, air, oil, etc.
Operating Temperature: ≤300℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A41H spring-loaded low-lift safety valve is suitable for use as an overpressure protection device on equipment or pipelines carrying media such as oil, air, and water at operating temperatures of ≤300°C.

How It Works

When the pressure inside the equipment and piping exceeds the allowable limit, the valve opens automatically, allowing the contents to be fully discharged; when the pressure drops to the specified level, the valve closes automatically, ensuring the safe operation of the equipment and piping.

Product Specifications

Product Model	A41H-16C
Valve Body Material	Cast Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, air, oil, etc.
Operating Temperature	≤300℃

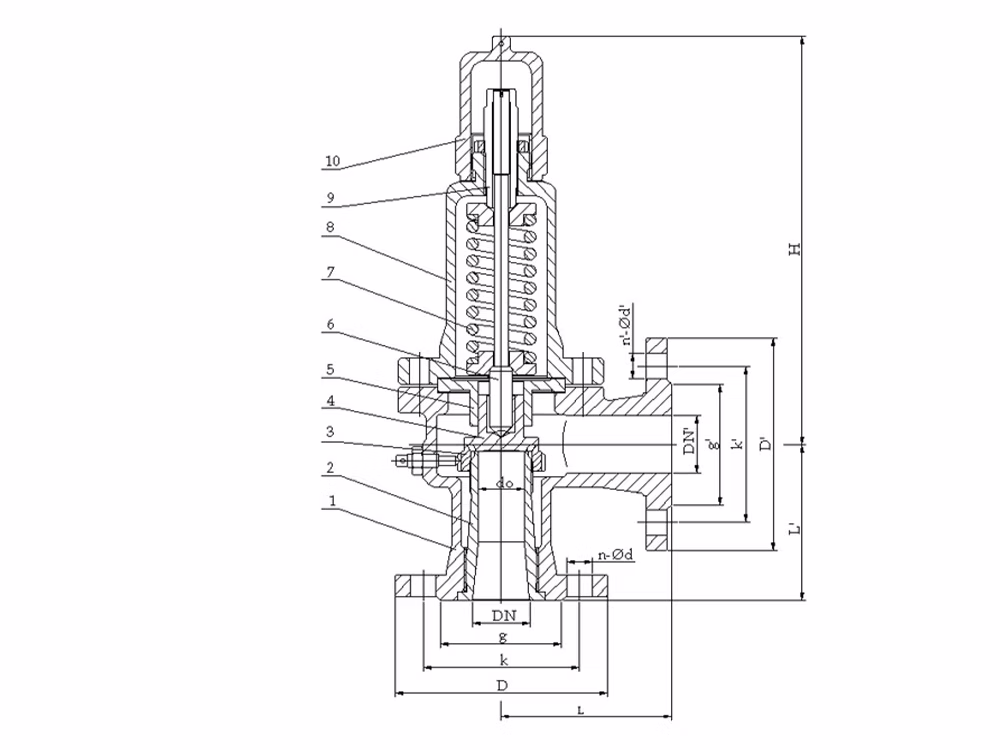

Product Size Guide

Nominal Diameter	do	DN	L	L1	≈H
DN20	15	20	100	85	275
DN25	20	25	100	85	275
DN32	25	32	115	100	285
DN40	32	40	120	110	285
DN50	40	50	135	120	355
DN65	50	65	140	130	390
DN80	65	80	160	135	394
DN100	80	100	170	160	500
DN125	100	125	190	190	570
DN150	125	150	205	195	585
DN200	150	200	240	230	710
DN250	200	250	350	320	905

TagsCast Steel Safety Valve Flanged Safety Valve Low-Lift Safety Valve Safety Valve Spring-Loaded Low-Lift Safety Valve

Consistent Quality

We implement comprehensive quality control throughout the entire process, ensuring meticulous attention to detail and thorough testing!

Reasonably Priced

Efficient internal cost control has reduced expenses, allowing us to pass the savings on to our customers!

Fast Delivery

State-of-the-art production lines and ample inventory have shortened delivery times!

Step 1: Send the purchase list

Please email the purchase list to info@bllyco.com. Phone/WeChat: +86-13382208259; WhatsApp: +852-90445535.

Step 2: Provide a Quote and Assist with Product Selection

Upon receiving the customer’s purchase list, our company will provide a valve quotation 「price list」 and assist with valve selection 「valve models」.

Step 3: Work Out the Details

Finalize the details: Confirm the delivery schedule, special requirements, and other specifics.
