Name: Cast Iron Spring-Loaded Full-Lift Safety Valve A28H-16
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Iron Spring-Loaded Full-Lift Safety Valve A28H-16

Cast Iron Spring-Loaded Full-Lift Safety Valve A28H-16

Product Model: A28H-16
Valve Body Material: Cast Iron（HT200）
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, steam, air, etc.
Operating Temperature: ≤200℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A28H spring-loaded full-lift safety valve is suitable for use on equipment or pipelines carrying media such as air, steam, water, and nitrogen-hydrogen mixtures at operating temperatures of ≤200°C.

How It Works

When the pressure inside the equipment and piping exceeds the allowable limit, the valve opens automatically, allowing the contents to be fully discharged; when the pressure drops to the specified level, the valve closes automatically, ensuring the safe operation of the equipment and piping.

Product Specifications

Product Model	A28H-16
Valve Body Material	Cast Iron（HT200）
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, steam, air, etc.
Operating Temperature	≤200℃

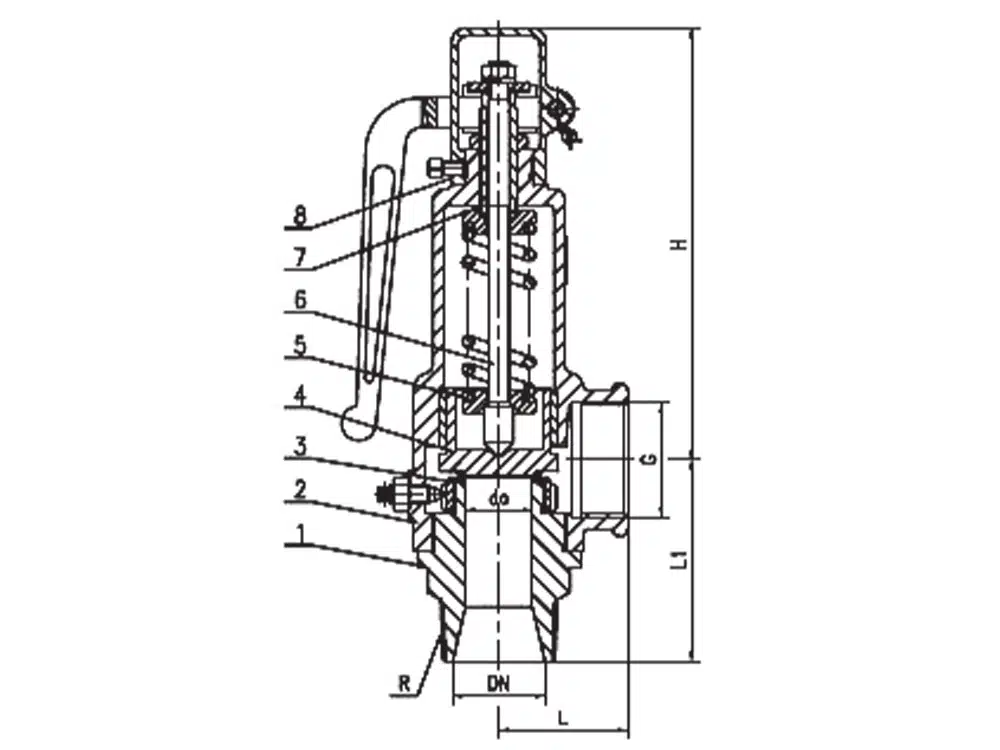

Product Size Guide

Nominal Diameter	do	R	L	L1	G	≈H
DN15	10	1/2	37	65	3/4	196
DN20	12	3/4	40	70	1	215
DN25	15	1	45	78	1-1/4	233
DN32	20	1-1/4	60	90	1-1/2	304
DN40	25	1-1/2	67	105	2	325
DN50	32	2	76	115	2-1/2	346
DN65	40	2-1/2	110	145	3	372
