Cast Iron Air Receiver Safety Valve A28H-16

Product Model: A28H-16
Valve Body Material: Cast Iron
Nominal Pressure: ≤1.6 MPa
Applicable Media: Air, steam, Water, etc.
Operating Temperature: ≤200℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A28H-16 spring-loaded full-lift safety valve is suitable for use on equipment or pipelines carrying media such as air, steam, and water at operating temperatures of ≤200°C, serving as an overpressure protection device.

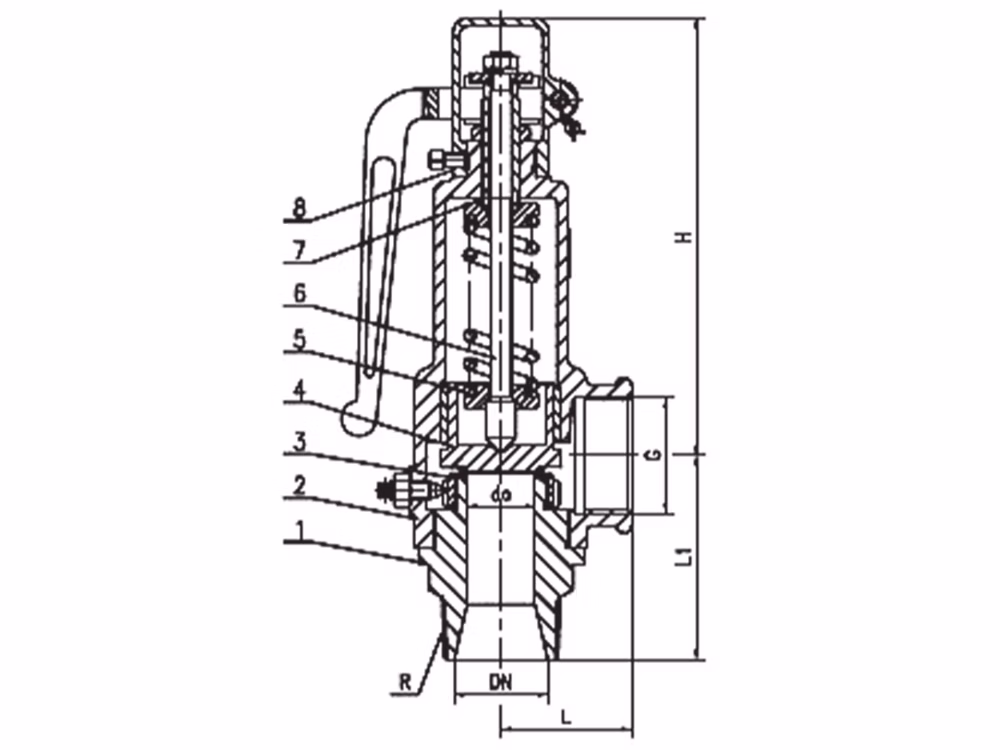

Structure and How It Works

This valve consists of a valve body, valve seat, valve stem, valve disc, spring, and other components.
When this valve is not in operation or has not reached the specified operating pressure, the spring pressure keeps the valve disc tightly pressed against the seat, maintaining a seal. When the operating pressure exceeds the specified operating pressure, the valve disc automatically opens to discharge the medium, preventing the pressure from rising further and ensuring safe operation.

Product Specifications

Product Model	A28H-16
Valve Body Material	Cast Iron
Nominal Pressure	≤1.6 MPa
Applicable Media	Air, steam, water, etc.
Operating Temperature	≤200℃

Product Size Guide

Nominal Diameter	do	R	L	L1	G	≈H
DN15	10	1/2	37	65	3/4	196
DN20	12	3/4	40	70	1	215
DN25	15	1	45	79	1-1/4	233
DN32	20	1-1/4	60	90	1-1/2	304
DN40	25	1-1/2	67	105	2	325
DN50	32	2	76	115	2-1/2	346
DN65	40	2-1/2	110	145	3	372

TagsAir Receiver Safety Valve Full-Lift Safety Valve Safety Valve Spring-Loaded Full-Lift Safety Valve

Consistent Quality

We implement comprehensive quality control throughout the entire process, ensuring meticulous attention to detail and thorough testing!

Reasonably Priced

Efficient internal cost control has reduced expenses, allowing us to pass the savings on to our customers!

Fast Delivery

State-of-the-art production lines and ample inventory have shortened delivery times!

Step 1: Send the purchase list

Please email the purchase list to info@bllyco.com. Phone/WeChat: +86-13382208259; WhatsApp: +852-90445535.

Step 2: Provide a Quote and Assist with Product Selection

Upon receiving the customer’s purchase list, our company will provide a valve quotation 「price list」 and assist with valve selection 「valve models」.

Step 3: Work Out the Details

Finalize the details: Confirm the delivery schedule, special requirements, and other specifics.
