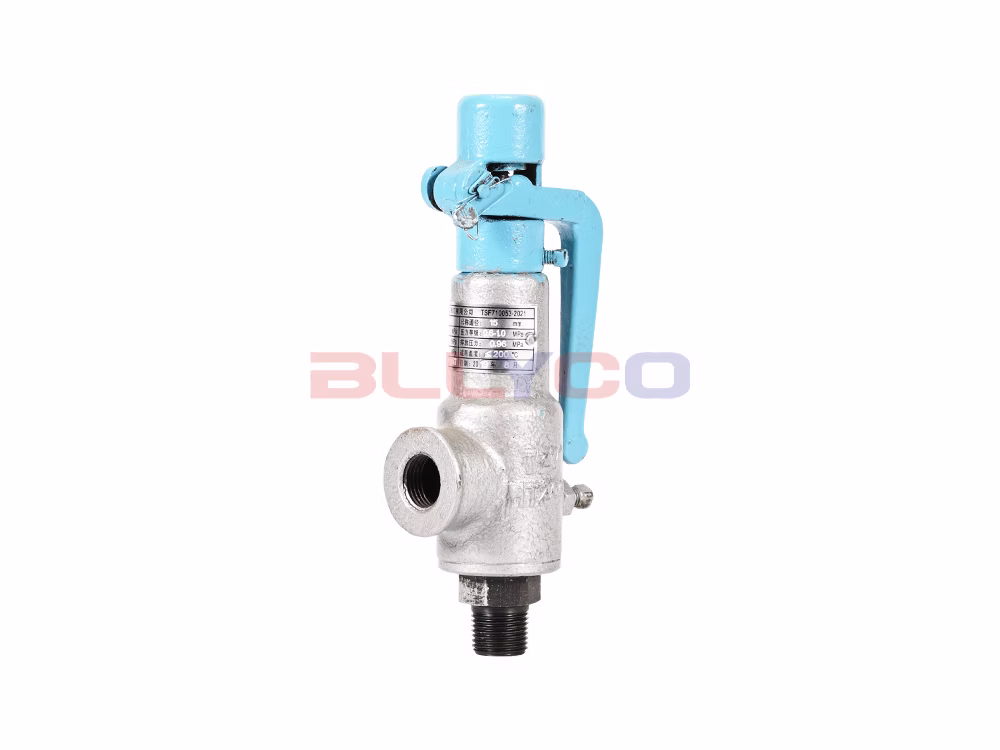

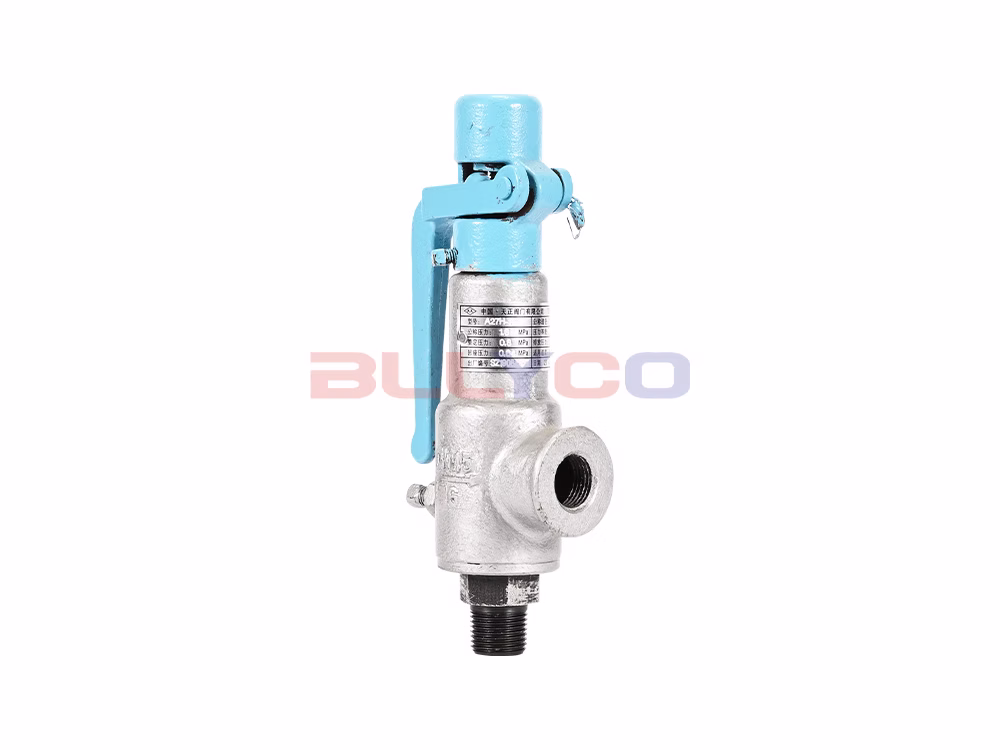

Name: Cast Iron Spring-Loaded Low-Lift Safety Valve with Wrench A27H-16
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Iron Spring-Loaded Low-Lift Safety Valve with Wrench A27H-16

Cast Iron Spring-Loaded Low-Lift Safety Valve with Wrench A27H-16

Product Model: A27H-16
Valve Body Material: Cast Iron（HT200）
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, steam, etc.
Operating Temperature: ≤200℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A27H spring-loaded low-lift safety valve is suitable for use on equipment or pipelines carrying media such as water, air, and steam at operating temperatures of ≤200°C.

How It Works

When the pressure inside the equipment and piping exceeds the allowable limit, the valve opens automatically, allowing the contents to be fully discharged; when the pressure drops to the specified level, the valve closes automatically, ensuring the safe operation of the equipment and piping.

Product Specifications

Product Model	A27H-16
Valve Body Material	Cast Iron（HT200）
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, steam, air, etc.
Operating Temperature	≤200℃

Product Size Guide

Nominal Diameter	do	R	L	L1	G	≈H
DN15	10	1/2	40	65	1/2	135
DN20	15	3/4	45	65	3/4	140
DN25	20	1	45	70	1	155
DN32	25	1-1/4	55	85	1-1/4	170
DN40	32	1-1/2	60	90	1-1/2	310
DN50	40	2	67	105	2	322
DN65	50	2-1/2	76	128	2-1/2	344
DN80	65	3	110	145	3	395

TagsAir Receiver Safety Valve Low-Lift Safety Valve Safety Valve Spring-Loaded Low-Lift Safety Valve

Consistent Quality

We implement comprehensive quality control throughout the entire process, ensuring meticulous attention to detail and thorough testing!

Reasonably Priced

Efficient internal cost control has reduced expenses, allowing us to pass the savings on to our customers!

Fast Delivery

State-of-the-art production lines and ample inventory have shortened delivery times!

Step 1: Send the purchase list

Please email the purchase list to info@bllyco.com. Phone/WeChat: +86-13382208259; WhatsApp: +852-90445535.

Step 2: Provide a Quote and Assist with Product Selection

Upon receiving the customer’s purchase list, our company will provide a valve quotation 「price list」 and assist with valve selection 「valve models」.

Step 3: Work Out the Details

Finalize the details: Confirm the delivery schedule, special requirements, and other specifics.

Cast Iron Spring-Loaded Low-Lift Safety Valve with Wrench A27H-16

Product Description

How It Works

Product Specifications

Product Size Guide

Share

Related Products

Brass Air Compressor Safety Valve A28X-16T

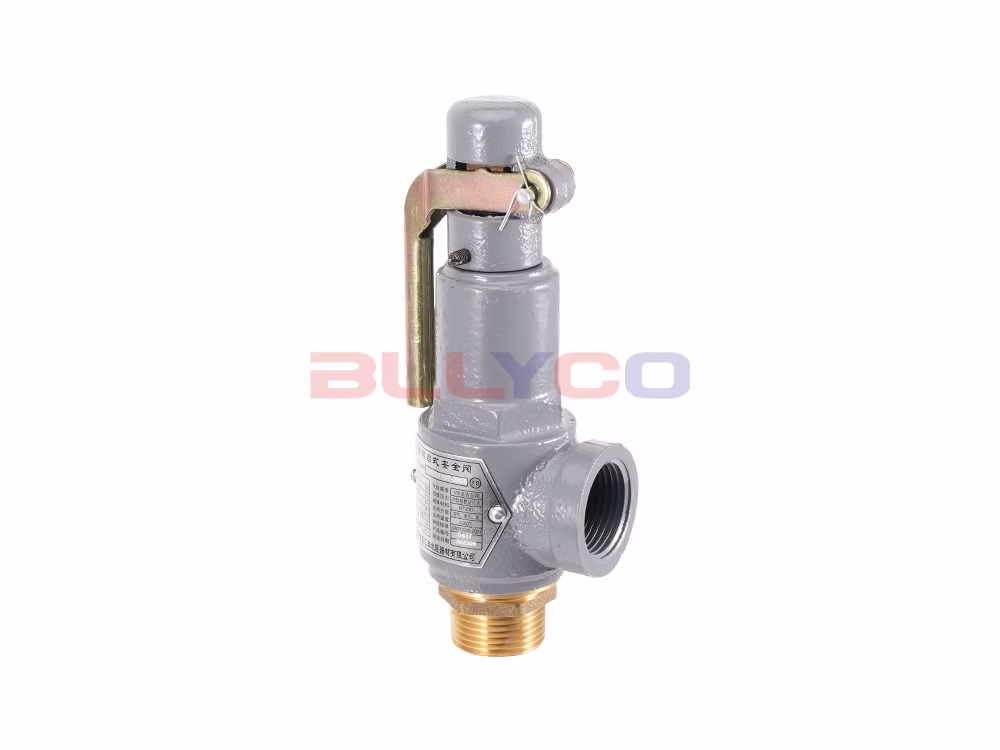

Cast Iron Spring-Loaded Low-Lift Safety Valve A27T-16
