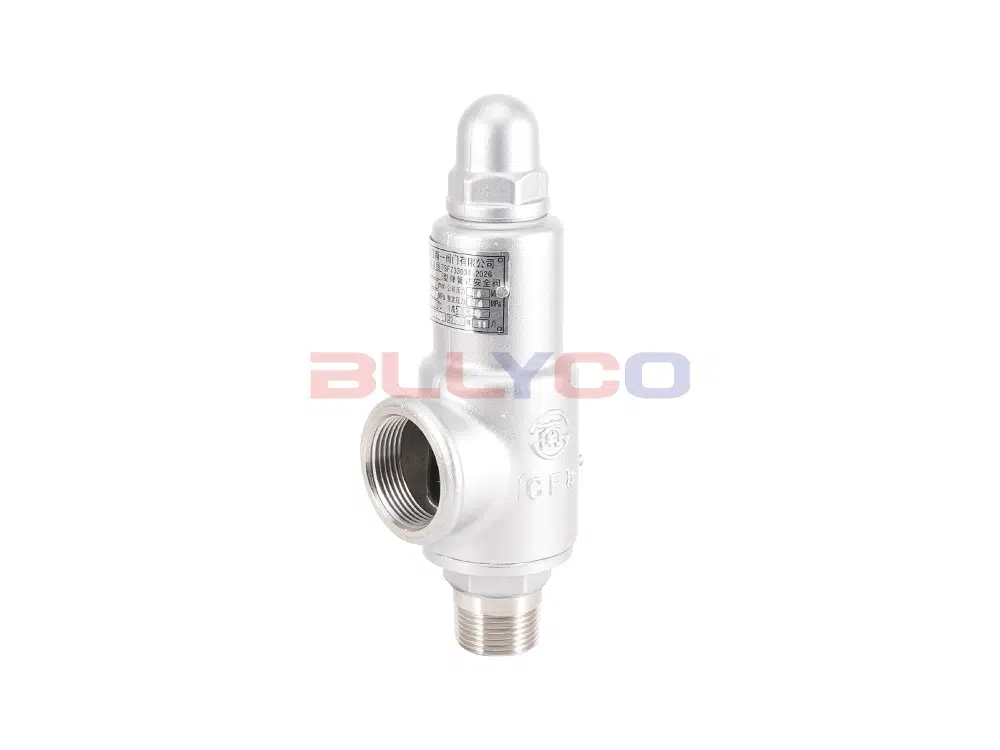

Name: 304 Stainless Steel Spring-Loaded Full-Lift Fully Enclosed Safety Valve with Male Thread A22W-16P
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: 304 Stainless Steel Spring-Loaded Full-Lift Fully Enclosed Safety Valve with Male Thread A22W-16P

304 Stainless Steel Spring-Loaded Full-Lift Fully Enclosed Safety Valve with Male Thread A22W-16P

产品型号：A22W-16P
阀体材质：304不锈钢
公称压力：≤1.6MPa
适用介质：腐蚀性介质
适用温度：≤200℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A22W/Y series spring-loaded full-lift fully enclosed safety valve with male thread is designed for use on equipment or piping systems handling corrosive media at operating temperatures up to 200°C, serving as an overpressure protection device.

Product Features

Full-lift design with high displacement.
Threaded connection for easy installation.
Compact, economical, and practical.

Product Specifications

Product Model	A22W-16P
Valve Body Material	304 Stainless Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Corrosive Media
Operating Temperature	≤200℃

Product Size Guide

Nominal Diameter	do	R	G	L	L1	≈H
DN15	10	1/2	3/4	37	65	140
DN20	12	3/4	1	40	70	150
DN25	15	1	1-1/4	45	78	160
DN32	20	1-1/4	1-1/2	60	90	210
DN40	25	1-1/2	2	67	105	225
DN50	32	2	2-1/2	76	115	235
DN65	40	2-1/2	3	110	145	370
DN80	50	3	4	110	145	410
