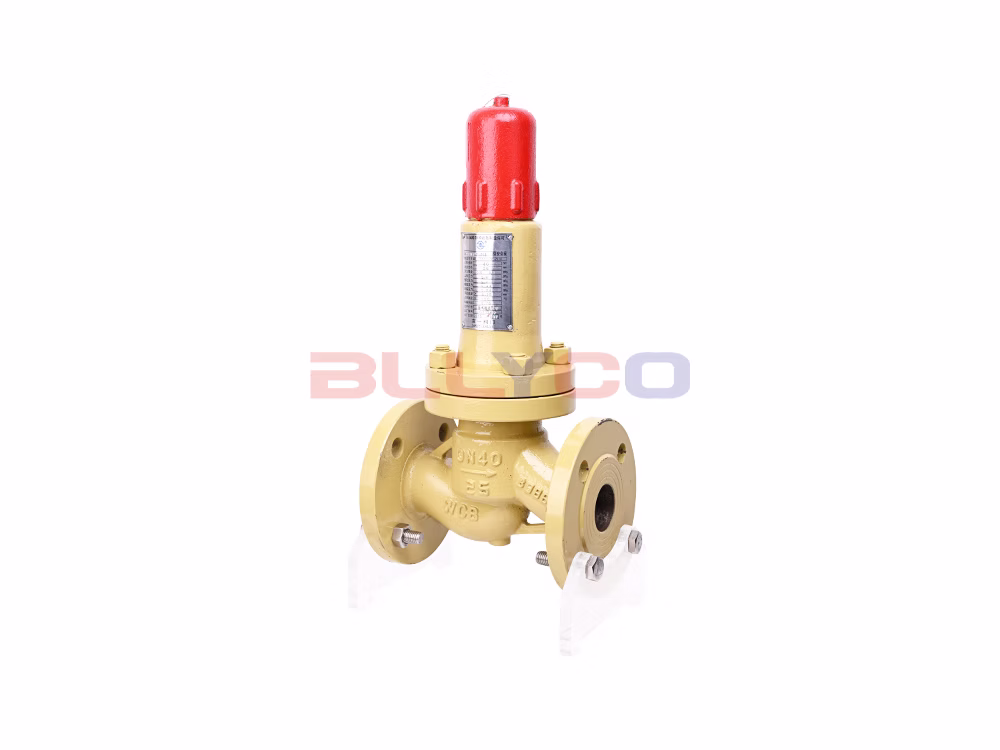

Name: Cast Steel Parallel-Type Liquid-Phase Safety Reflux Valve AHN42F-P18C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Parallel-Type Liquid-Phase Safety Reflux Valve AHN42F-P18C

Cast Steel Parallel-Type Liquid-Phase Safety Reflux Valve AHN42F-P18C

Product Model: AHN42F-P18C
Valve Body Material: Cast Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Liquefied Petroleum Gas (LPG) and similar non-corrosive media
Operating Temperature: -29~80℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The AHN42F parallel-type safety reflux valve is designed for use on the liquid-phase reflux line at the outlet of a LPG tank pump operating at temperatures ranging from -29 to 80 ℃, and is intended for the safe reflux of overpressurized media.

How It Works

When the standard reflux pressure differential exceeds 0.5 MPa, liquefied petroleum gas can automatically reflux back into the tank. The AHN42F parallel-type liquid-phase safety reflux valve allows the reflux pressure differential to be adjusted between 0.3 and 0.8 MPa, or as specified by the user. When the pressure upstream of the pump exceeds the specified value, the valve automatically opens to provide a safety reflux function, ensuring the safe operation of the equipment and piping.

Product Specifications

Product Model	AHN42F-P18C
Valve Body Material	Cast Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Liquefied Petroleum Gas (LPG) and similar non-corrosive media
Operating Temperature	-29~80℃

Product Size Guide

Nominal Diameter	D	D1	D2	b	Z-Φd	L	≈H
DN40	150	110	85	16	4-18	200	236
DN50	165	125	100	16	4-18	230	266
DN65	185	145	120	20	4-18	290	430
DN80	200	160	135	20	8-18	310	490
DN100	215	180	155	22	8-18	350	548
DN150	280	240	210	24	8-23	480	706

TagsLiquefied Petroleum Gas Safety Valve LPG Safety Valve Parallel Liquid-Phase Safety Reflux Valve Parallel-Type Liquid Safety Return Valve Safety Reflux Valve Safety Return Valve Safety Valve
