Name: Cast Steel Spring-Loaded Full-Lift Safety Valve with PTFE Lining A42F46-16C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Spring-Loaded Full-Lift Safety Valve with PTFE Lining A42F46-16C

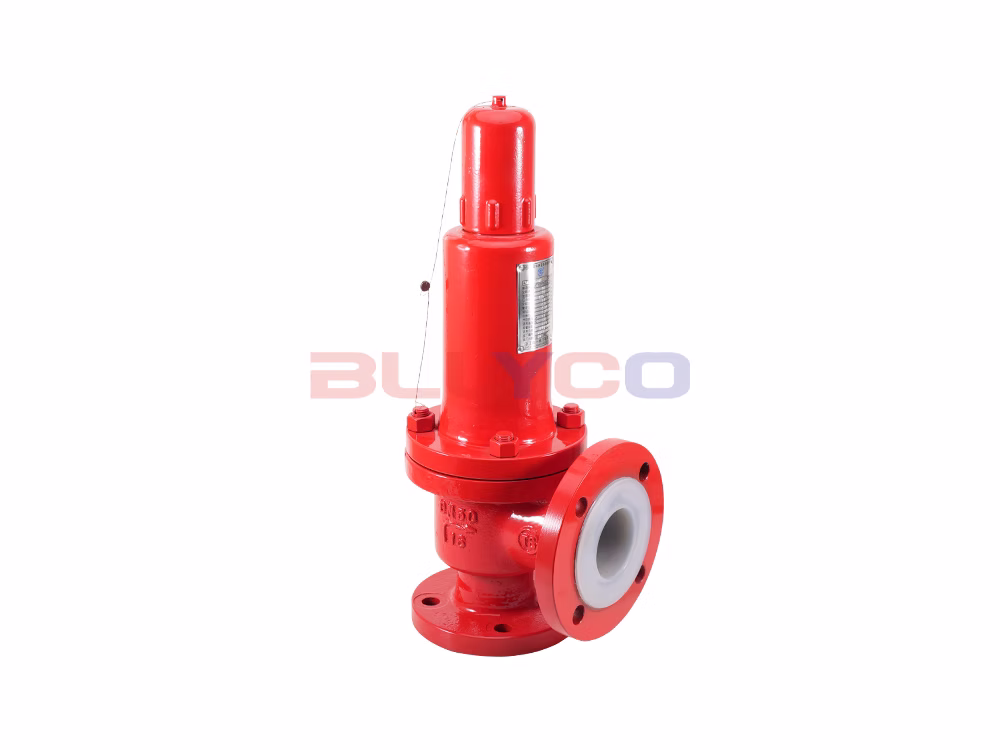

Cast Steel Spring-Loaded Full-Lift Safety Valve with PTFE Lining A42F46-16C

Product Model: A42F46-16C
Valve Body Material: Cast Steel
Lining Material: FEP (F46)
Nominal Pressure: ≤1.6 MPa
Applicable Media: Liquid chlorine, hydrochloric acid, concentrated nitric acid, aqua regia, and other media
Operating Temperature: ≤120℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A42F46-16C PTFE-lined safety valve is primarily used as an automatic pressure relief device on pressurized equipment, pressure vessels, and piping systems handling highly corrosive media such as chlor-alkali chemicals, liquid chlorine, and hydrochloric acid. The valve body is lined with PTFE (F46 or PFA), and critical components are made entirely of PTFE (F46 or PTFE), which enhances corrosion resistance and effectively prevents corrosion caused by corrosive media such as liquid chlorine, hydrochloric acid, and other highly corrosive substances.

Product Features

The interior of the A42F46-16C PTFE-lined safety valve body, as well as the valve core and disc, are fully lined with 2.5–3 mm thick F46 and PFA, making them resistant to corrosive media such as liquid chlorine, hydrochloric acid, concentrated nitric acid, and aqua regia.

Product Specifications

Product Model	A42F46-16C
Valve Body Material	Cast Steel
Lining Material	FEP (F46)
Nominal Pressure	≤1.6 MPa
Applicable Media	Liquid chlorine, hydrochloric acid, concentrated nitric acid, aqua regia, and other media
Operating Temperature	≤120℃

Product Size Guide

DN	D	K	g1	b	f	f1	Z-Φd	DN´	D1	K1	g2	b1	Z1-Φd1	L	L1
DN25	115	85	65	16	2	2	4-14	32	140	100	78	18	4-18	110	95
DN40	150	110	85	18	3	3	4-18	50	165	125	100	18	4-18	120	110
DN50	165	125	100	20	3	3	4-18	65	185	145	120	20	4-18	135	120
DN80	200	160	135	20	3	3	8-18	100	220	180	155	22	8-18	170	140
DN100	220	180	155	22	3	3	8-18	125	250	210	185	22	8-18	195	175
DN150	285	240	210	24	3	3	8-23	175	310	270	240	26	8-23	255	230
