Name: Cast Steel Spring-Loaded Low-Lift Safety Valve with Wrench A27H-16C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Spring-Loaded Low-Lift Safety Valve with Wrench A27H-16C

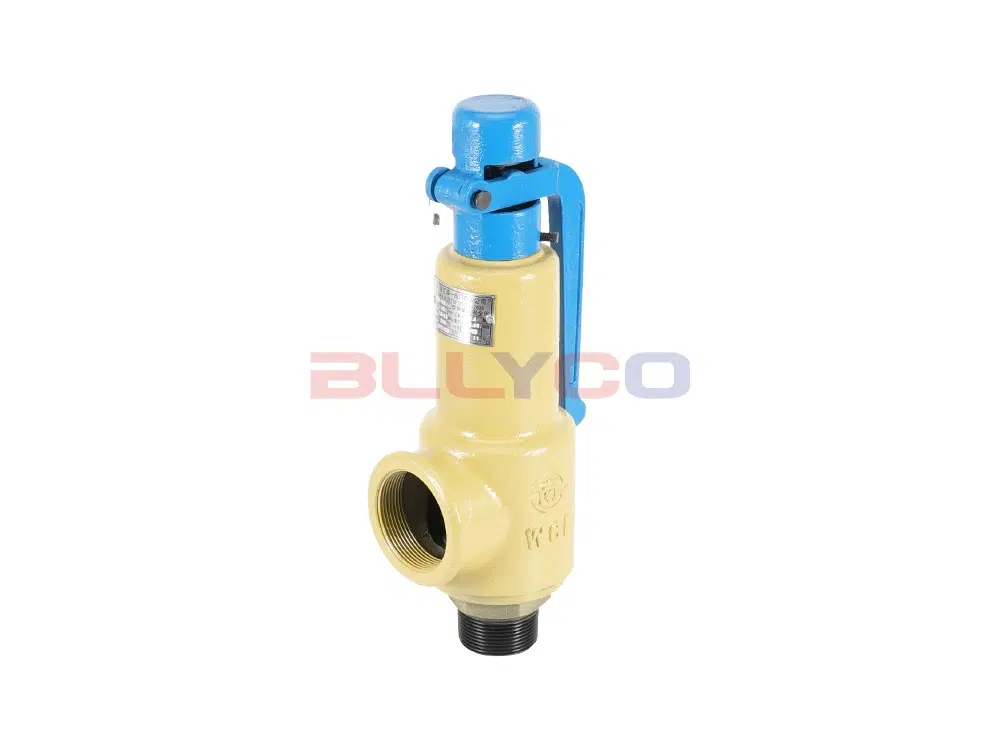

Cast Steel Spring-Loaded Low-Lift Safety Valve with Wrench A27H-16C

Product Model: A27H-16C
Valve Body Material: Cast Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, air, steam, etc.
Operating Temperature: ≤200℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A27H spring-loaded low-lift safety valve is suitable for use as an overpressure protection device on equipment or pipelines carrying media such as water, air, steam, etc. at operating temperatures of ≤200°C.

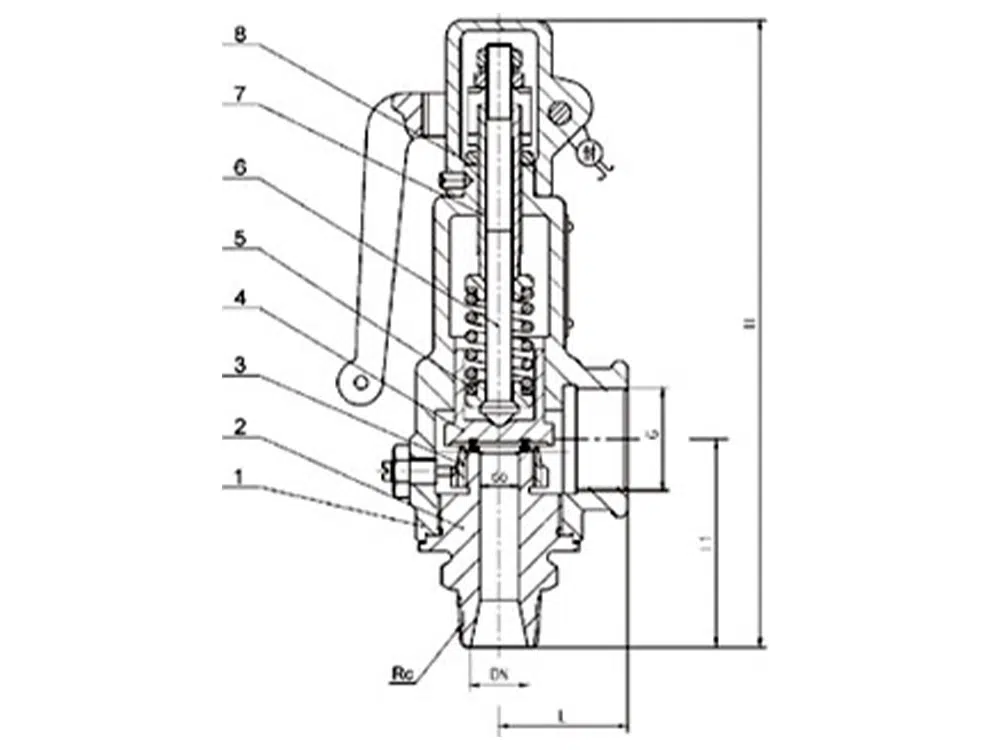

Structure and How It Works

This valve consists of a valve body, valve seat, valve stem, valve disc, spring, and other components.
When this valve is not in operation or has not reached the specified operating pressure, the spring pressure keeps the valve disc tightly pressed against the valve seat, maintaining a seal. When the operating pressure exceeds the specified operating pressure, the valve disc automatically opens to discharge the medium, preventing the pressure from rising further and ensuring safe operation.

Product Specifications

Product Model	A27H-16C
Valve Body Material	Cast Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, air, steam, etc.
Operating Temperature	≤200℃

Product Size Guide

Nominal Diameter	do	R	L	L1	G	≈H
DN15	10	1/2	40	65	1/2	135
DN20	15	3/4	45	65	3/4	140
DN25	20	1	45	70	1	155
DN32	25	1-1/4	55	85	1-1/4	170
DN40	32	1-1/2	60	90	1-1/2	310
DN50	40	2	67	105	2	322
DN65	50	2-1/2	76	128	2-1/2	344
DN80	65	3	110	145	3	395
