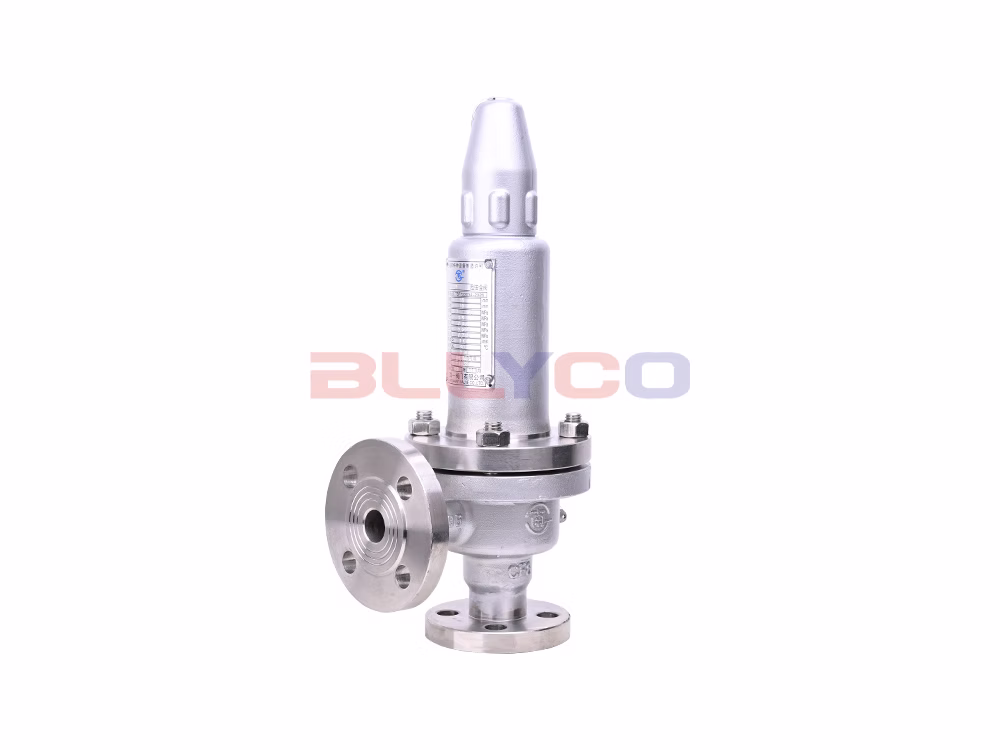

Name: 304 Stainless Steel Enclosed Spring-Loaded Low-Lift Safety Valve A41Y-16P
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: 304 Stainless Steel Enclosed Spring-Loaded Low-Lift Safety Valve A41Y-16P

304 Stainless Steel Enclosed Spring-Loaded Low-Lift Safety Valve A41Y-16P

产品型号：A41Y-16P
阀体材质：304不锈钢
公称压力：≤1.6MPa
适用介质：腐蚀性介质
适用温度：≤200℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A41W/Y spring-loaded low-lift safety valve is suitable for use as an overpressure protection device on equipment or pipelines carrying corrosive media at operating temperatures of ≤200°C.

How It Works

When the pressure inside the equipment and piping exceeds the allowable limit, the valve opens automatically, allowing the contents to be fully discharged; when the pressure drops to the specified level, the valve closes automatically, ensuring the safe operation of the equipment and piping.

Product Specifications

Product Model	A41Y-16P
Valve Body Material	304 Stainless Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Corrosive Media
Operating Temperature	≤200℃

Product Size Guide

Nominal Diameter	do	DN	L	L1	≈H
DN20	15	20	100	85	275
DN25	20	25	100	85	275
DN32	25	32	115	100	285
DN40	32	40	120	110	285
DN50	40	50	135	120	355
DN65	50	65	140	130	390
DN80	65	80	160	135	394
DN100	80	100	170	160	500
DN125	100	125	190	190	570
DN150	125	150	205	195	585
DN200	150	200	240	230	710
DN250	200	250	350	320	905

TagsFlanged Safety Valve Low-Lift Safety Valve Safety Valve Spring-Loaded Low-Lift Safety Valve
