Name: Brass Two-Position Two-Way High-Pressure Solenoid Valve JT22-02
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Brass Two-Position Two-Way High-Pressure Solenoid Valve JT22-02

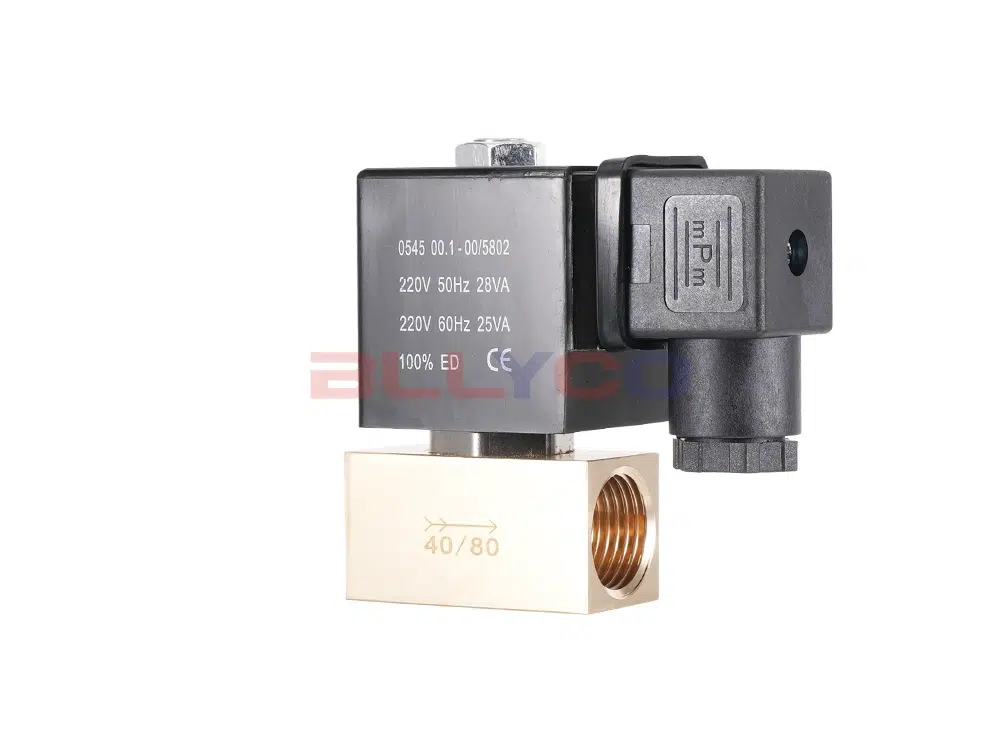

Brass Two-Position Two-Way High-Pressure Solenoid Valve JT22-02

Product Model: JT22-02
Valve Body Material: Brass
Control Type: Normally Closed
Available Voltage: AC220V / DC24V / DC12V
Connection Method: Female Thread
Nominal Pressure: ≤8.0 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤80℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The JT22-02 is a compact two-position, two-way high-pressure solenoid valve with a normally closed design and a pressure rating of 8 MPa. It is suitable for various applications requiring high-pressure control, such as the control of water and air valves. It features a compact size, high flow capacity, and a wide scope of application. It is widely used in control systems for disinfection sprinklers, fire sprinklers, as well as in the petroleum, chemical, shipbuilding, power, steel, electroplating and coating, environmental protection equipment, soot blowing and dust removal, textile printing and dyeing, HVAC, cleaning equipment, landscape irrigation, and food industries.

Product Specifications

Product Model	JT22-02
Valve Body Material	Brass
Control Type	Normally Closed
Available Voltage	AC220V / DC24V / DC12V
Connection Method	Female Thread
Nominal Pressure	≤8.0MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤80℃

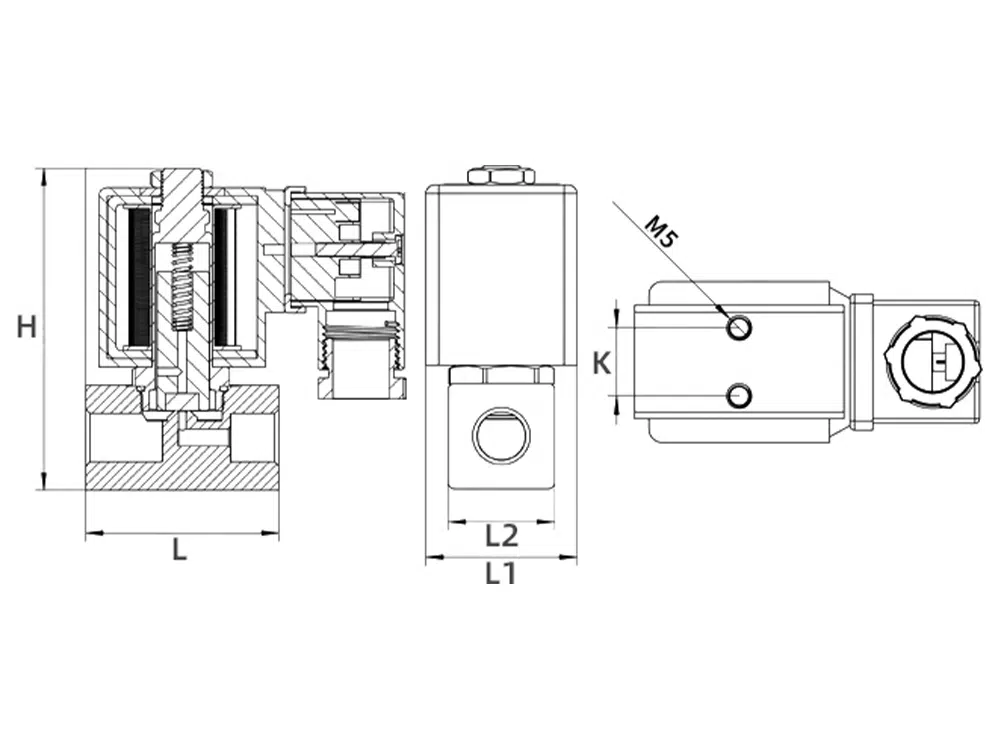

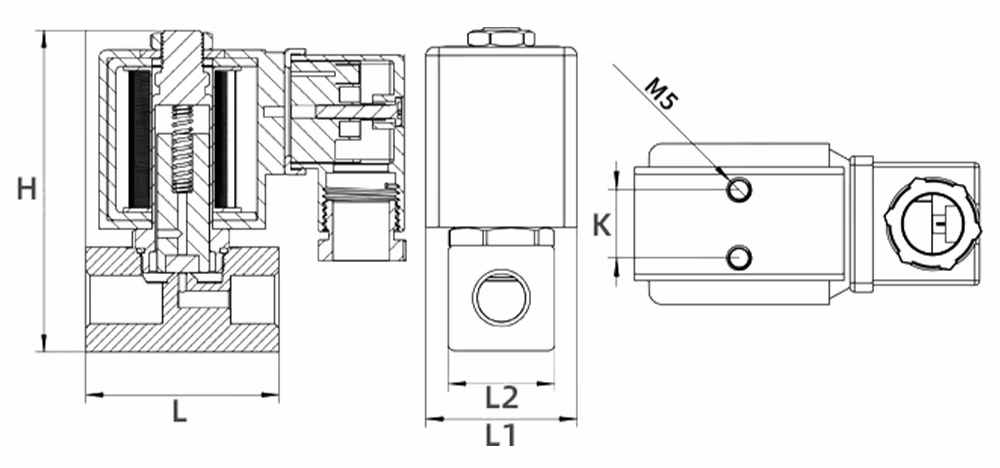

Product Size Guide

Nominal Diameter	Female Thread	H	L	L1	L2	K
DN6	G1/8	77	40	35.5	25	15
DN8	G1/4	77	40	35.5	25	15
DN10	G3/8	77	40	35.5	25	15
DN15	G1/2	77	46	35.5	25	15
