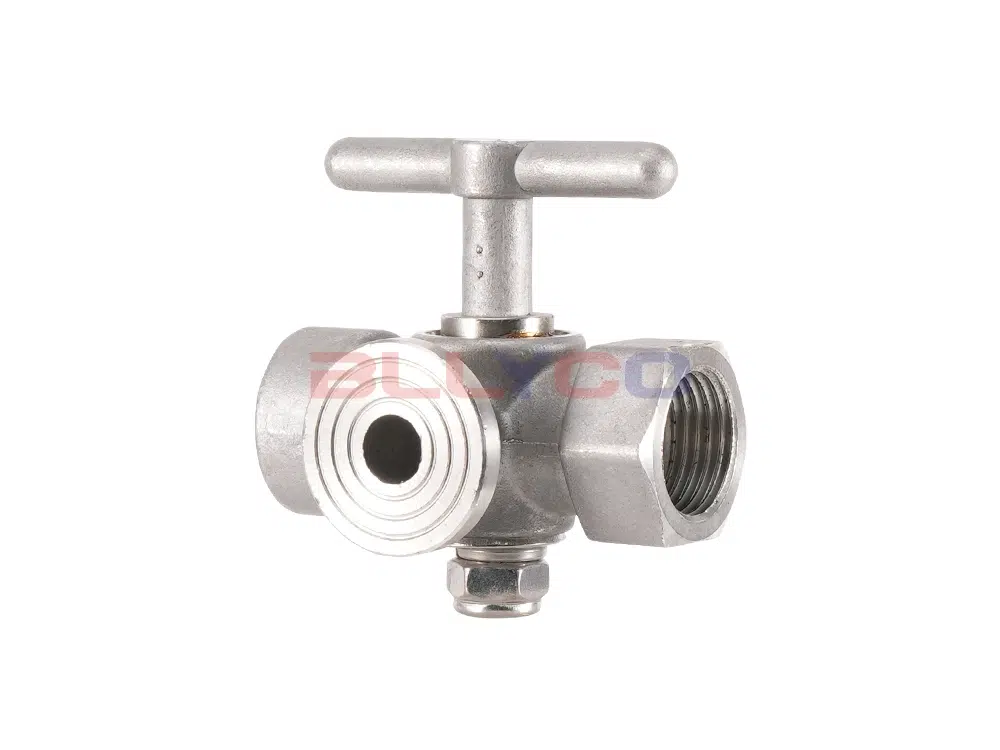

304 Stainless Steel Three-Way Plug Valve X14F-16P

Product Description

The 304 stainless steel three-way plug valve is a piston-type rotary valve primarily used to connect to a pressure gauge. The bottom features an easily adjustable nut-locking mechanism; one end has a 1/2" connection for piping, while the other end has an M20×1.5 connection for the pressure gauge. A three-way plug valve is installed between the pressure gauge and the p-trap. It is used to flush the p-trap, switch between the hydrostatic test gauge and the operating pressure gauge, and facilitate the calibration of standard and operating pressure gauges. It is also an essential accessory for installing and removing pressure gauges. The movement between the plug’s sealing surfaces provides a wiping action, and when fully open, it prevents contact with the flowing medium; therefore, it is typically suitable for media containing suspended particles. By rotating 90°, the passageway on the valve plug aligns with or separates from the passageway on the valve body, thereby opening or closing the valve. Plug valves are characterized by their simple structure, rapid opening and closing, and low fluid resistance.

Applications

Widely used for pressure gauge measurements in fields such as thermal power, power plants, water supply, urban construction, municipal engineering, petroleum, petrochemicals, new energy, papermaking, mining, natural gas, chemical engineering, pharmaceuticals, vacuum systems, metallurgy, smelting, automation, food processing, oil and gas recovery, water treatment, HVAC, and building automation, as well as in general industrial applications.

Product Specifications

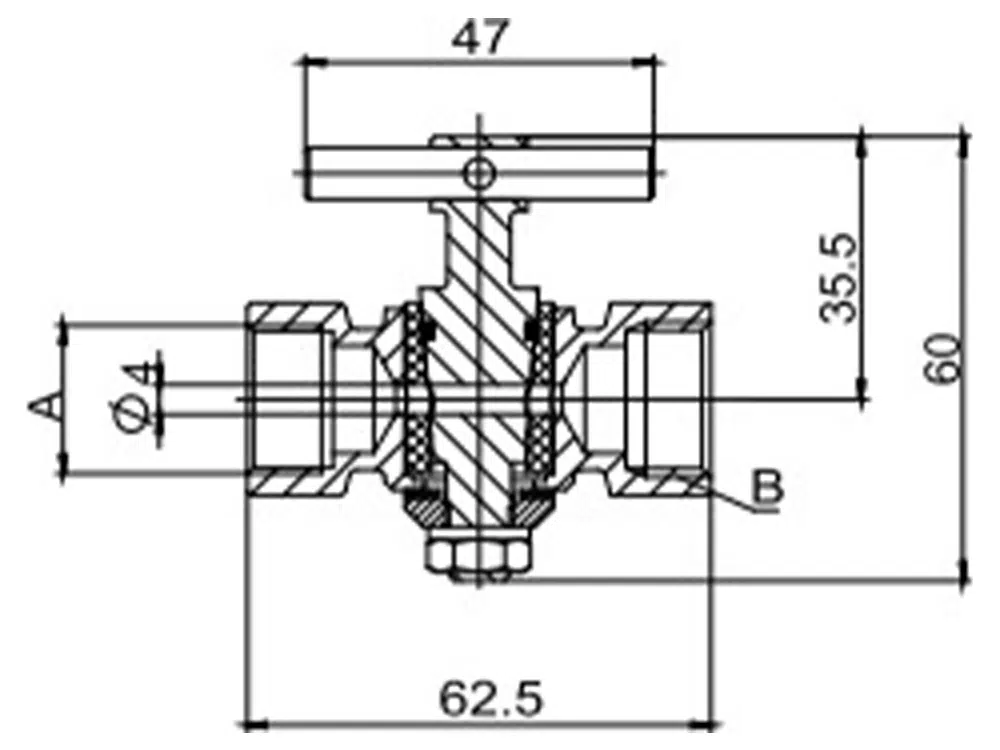

Product Size Guide
