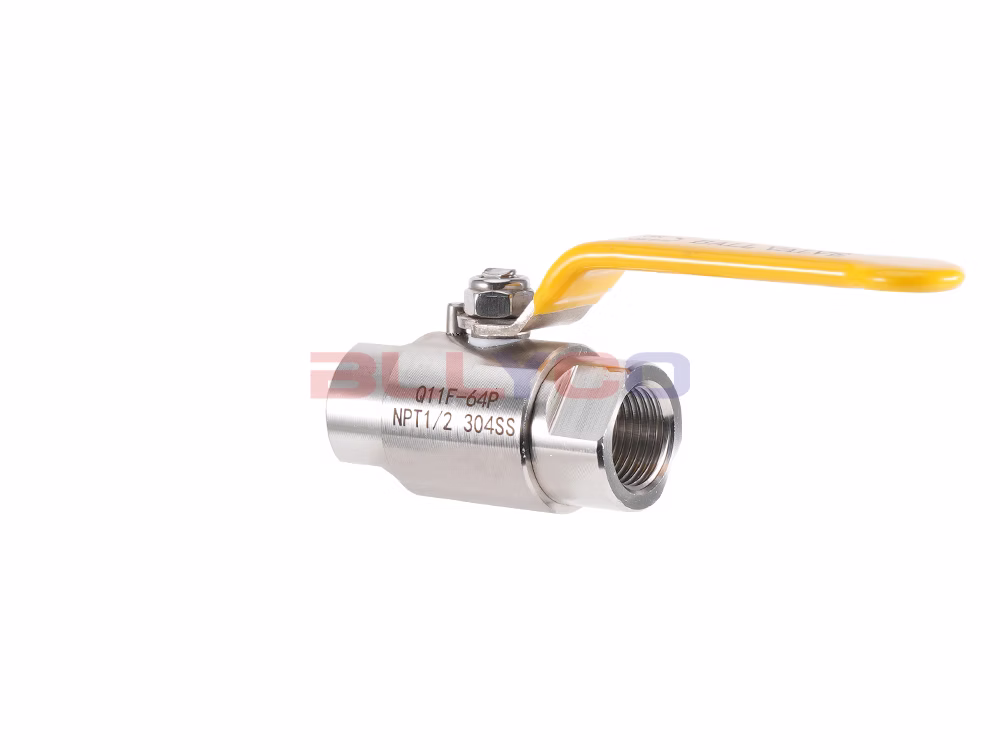

Name: 304 Stainless Steel Female‑Threaded Air Source Ball Valve Q11F-64P
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: 304 Stainless Steel Female‑Threaded Air Source Ball Valve Q11F-64P

304 Stainless Steel Female‑Threaded Air Source Ball Valve Q11F-64P

Product Model: Q11F-64P
Valve Body Material: 304 Stainless Steel
Nominal Pressure: ≤6.4 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤120℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The Q11F-64P stainless steel air source ball valve is a valve that uses a ball with a circular passage as its operating element to open and close the flow path. It is primarily used to shut off or connect media, and can also be used for fluid regulation and control. It features low fluid resistance, a simple structure, compact size, light weight, tight and reliable sealing, easy operation and maintenance, and does not cause erosion of the valve sealing surfaces. It is widely used in industrial sectors such as chemicals, petroleum, metallurgy, water and heating, food, and pharmaceuticals.

Product Specifications

Product Model	Q11F-64P
Valve Body Material	304 Stainless Steel
Nominal Pressure	≤6.4 MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤120℃

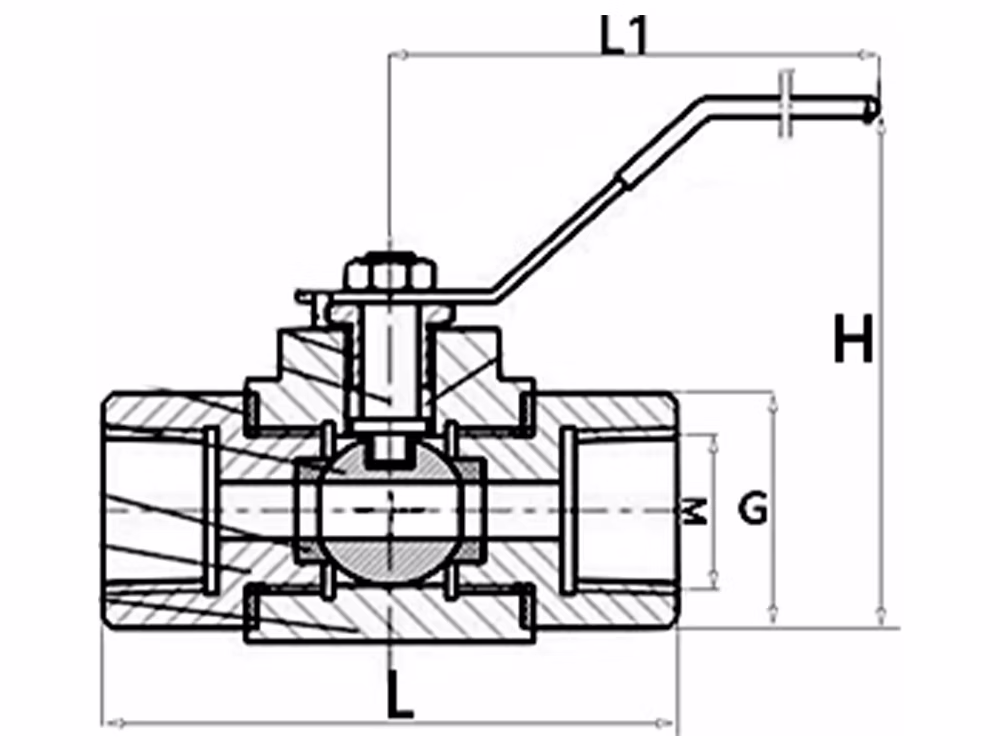

Product Size Guide

Nominal Diameter	M	L	L1	H	W
DN8	G1/4	68	95	40	34
DN10	G3/8	68	95	40	34
DN15	G1/2	68	95	40	34
DN20	G3/4	78	95	40	35
DN25	G1	88	95	40	44
