Name: Ductile Iron High-Temperature Internal Threaded Ball Valve Q11M-25Q
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Ductile Iron High-Temperature Internal Threaded Ball Valve Q11M-25Q

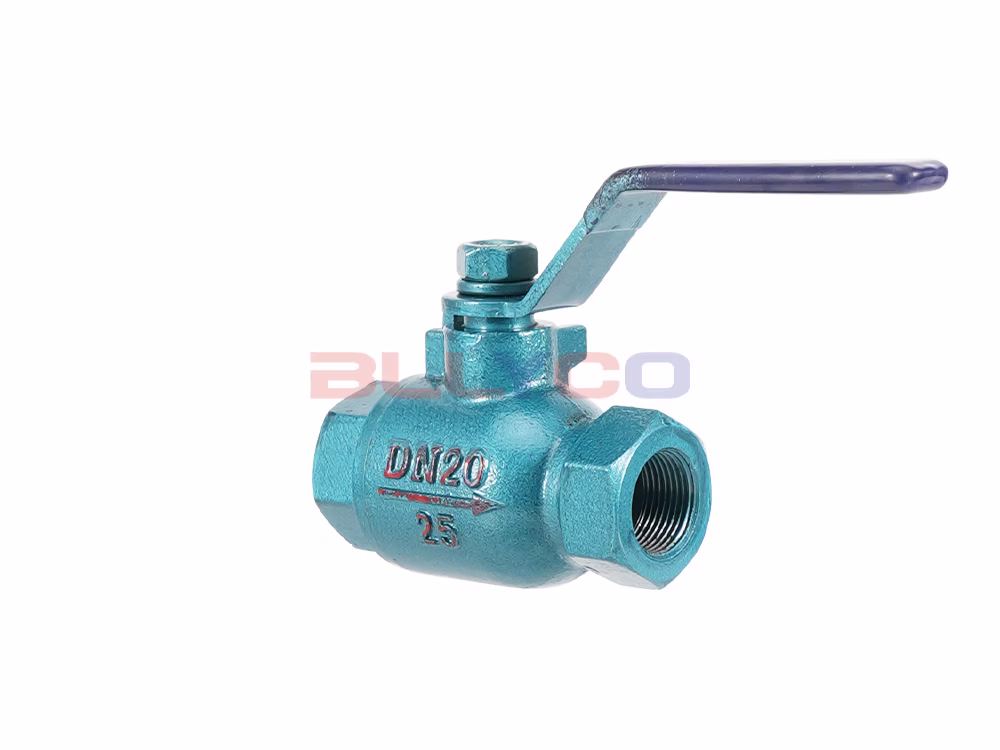

Ductile Iron High-Temperature Internal Threaded Ball Valve Q11M-25Q

Product Model: Q11M-25Q
Valve Body Material: Ductile Iron
Nominal Pressure: ≤2.5 MPa
Applicable Media: Water, steam, oil, etc.
Operating Temperature: ≤250℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The Q11M-25Q high-temperature internal threaded ball valve has an internal threaded connection and is primarily designed for use in high-temperature environments. It features a compact design, stable performance, excellent sealing, low friction, smooth operation, high-temperature resistance, wear resistance, oil resistance, corrosion resistance, and a long service life. It is widely used in the petroleum, chemical, rubber, and paper industries, and is particularly suitable for steam boilers and thermal oil systems.

Product Specifications

Product Model	Q11M-25Q
Valve Body Material	Ductile Iron
Nominal Pressure	≤2.5 MPa
Applicable Media	Water, steam, oil, etc.
Operating Temperature	≤250℃

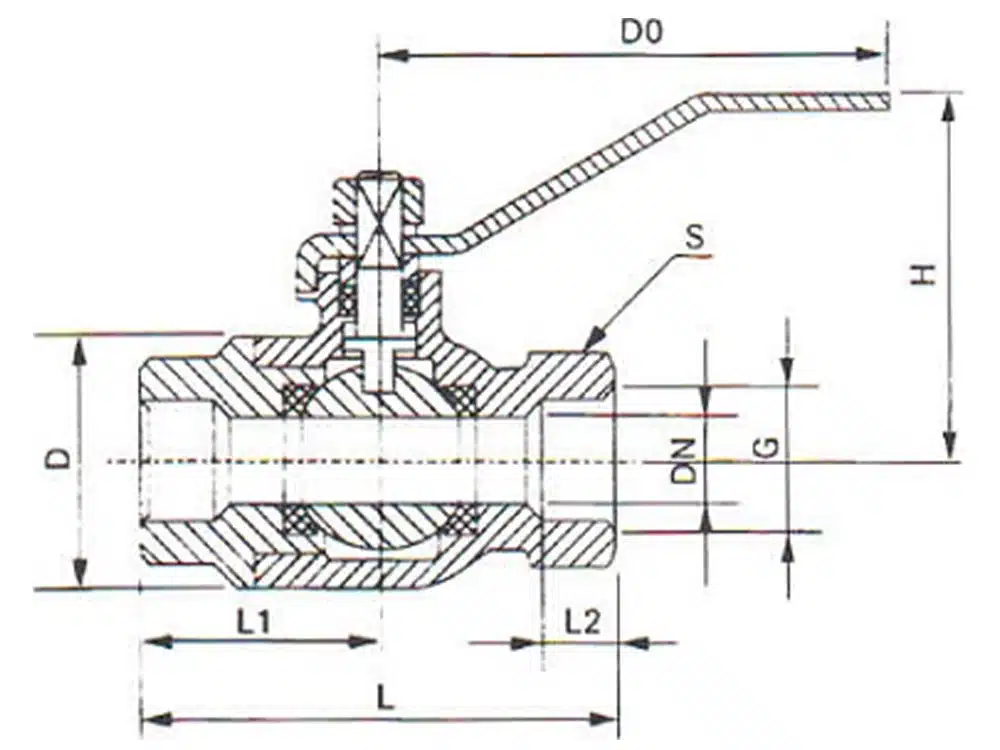

Product Size Guide

DN	G	L	L1	L2	S	D	H	D0
15	1/2	90	45	14	32	48	82	170
20	3/4	100	50	16	36	55	85	170
25	1	115	58	18	46	62	90	170
32	1-1/4	130	66	20	55	80	120	250
40	1-1/2	150	77	22	61	90	145	250
50	2	180	91	24	75	112	150	300

TagsHigh-Temperature Ball Valve High-Temperature Internal Threaded Ball Valve Internal Threaded Ball Valve Manual Ball Valve

Consistent Quality

We implement comprehensive quality control throughout the entire process, ensuring meticulous attention to detail and thorough testing!

Reasonably Priced

Efficient internal cost control has reduced expenses, allowing us to pass the savings on to our customers!

Fast Delivery

State-of-the-art production lines and ample inventory have shortened delivery times!

Step 1: Send the purchase list

Please email the purchase list to info@bllyco.com. Phone/WeChat: +86-13382208259; WhatsApp: +852-90445535.

Step 2: Provide a Quote and Assist with Product Selection

Upon receiving the customer’s purchase list, our company will provide a valve quotation 「price list」 and assist with valve selection 「valve models」.

Step 3: Work Out the Details

Finalize the details: Confirm the delivery schedule, special requirements, and other specifics.
