Product Description

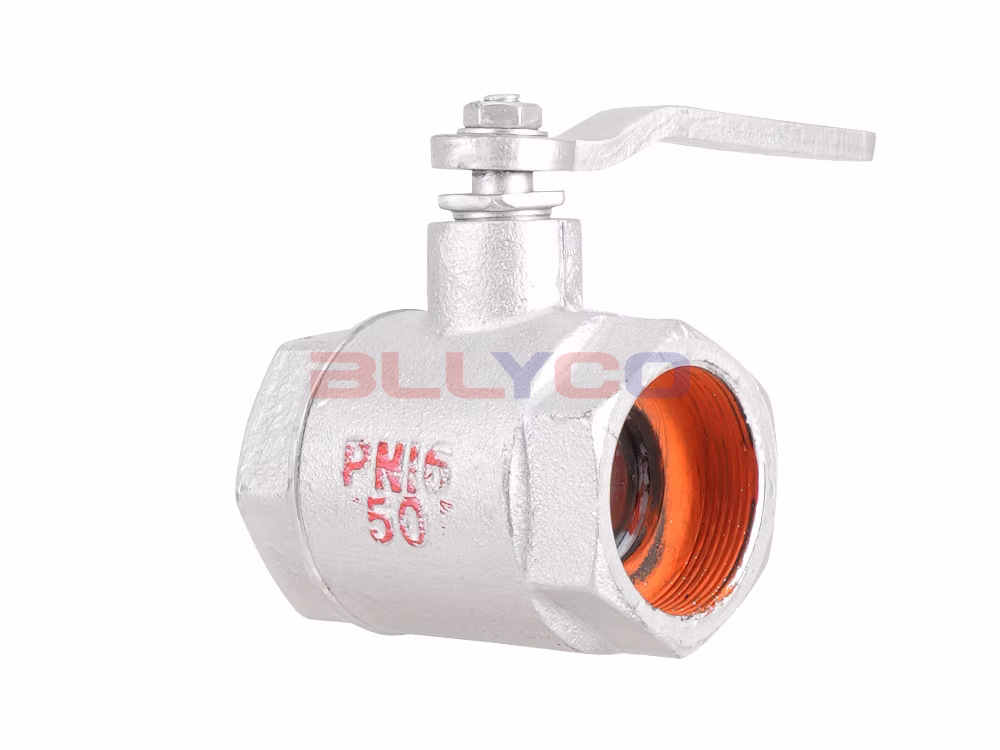

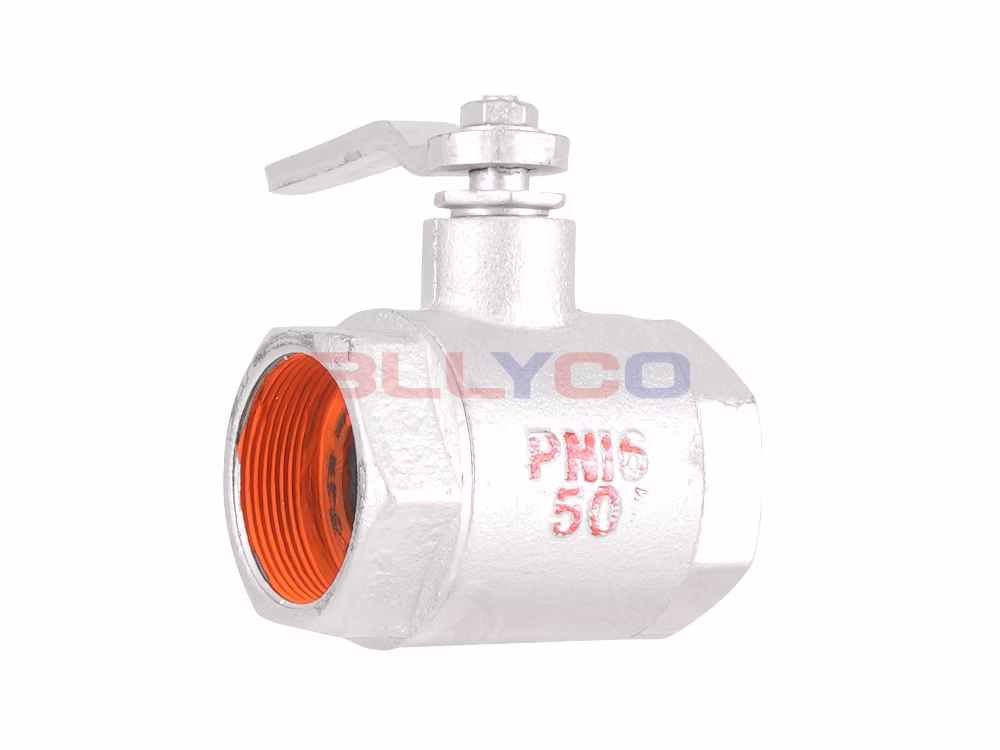

The Q11F-16 Cast Iron Internal Threaded Ball Valve is used in fluid pipelines in the water supply, sewage, construction, food, power, pharmaceutical, metallurgy, light industry and textiles, and energy sectors as a device for connecting and shutting off flow.
Product Features
- Made from HT200 material, it offers excellent castability, resistance to friction and wear, and vibration damping.
- The sealing material is polytetrafluoroethylene (PTFE), which ensures excellent sealing performance.
- The use of a disc-type valve stem significantly extends service life.
- Simple structure, easy to operate, quick opening and closing, and low fluid resistance.
Product Specifications
Product Model | Q11F-16 |
Valve Body Material | Cast Iron（HT200） |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, etc. |
Operating Temperature | ≤80℃ |
Product Size Guide
Nominal Diameter | L | D | A | H |
DN15 | 54 | 14 | 77 | 43 |
DN20 | 62 | 16 | 77 | 43 |
DN25 | 71.5 | 24 | 100 | 70 |
DN32 | 89 | 28 | 115 | 75 |
DN40 | 97 | 33 | 130 | 80 |
DN50 | 110 | 40 | 150 | 80 |
DN65 | 136 | 53 | 190 | 105 |
DN80 | 161 | 64 | 190 | 120 |
DN100 | 192 | / | / | / |
