Product Description

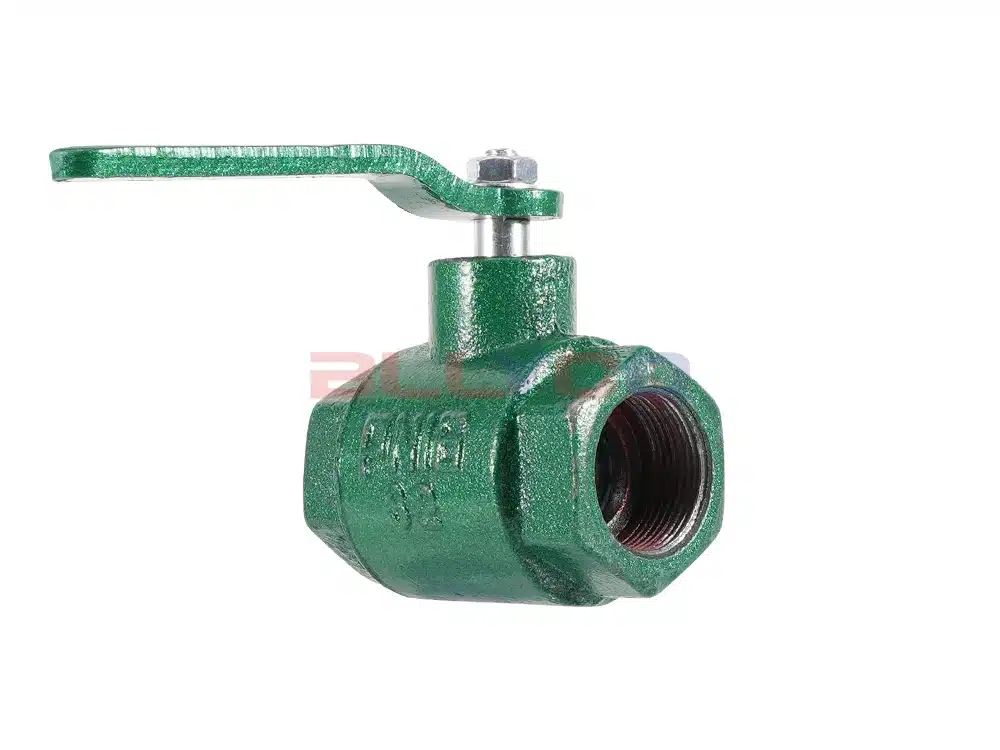

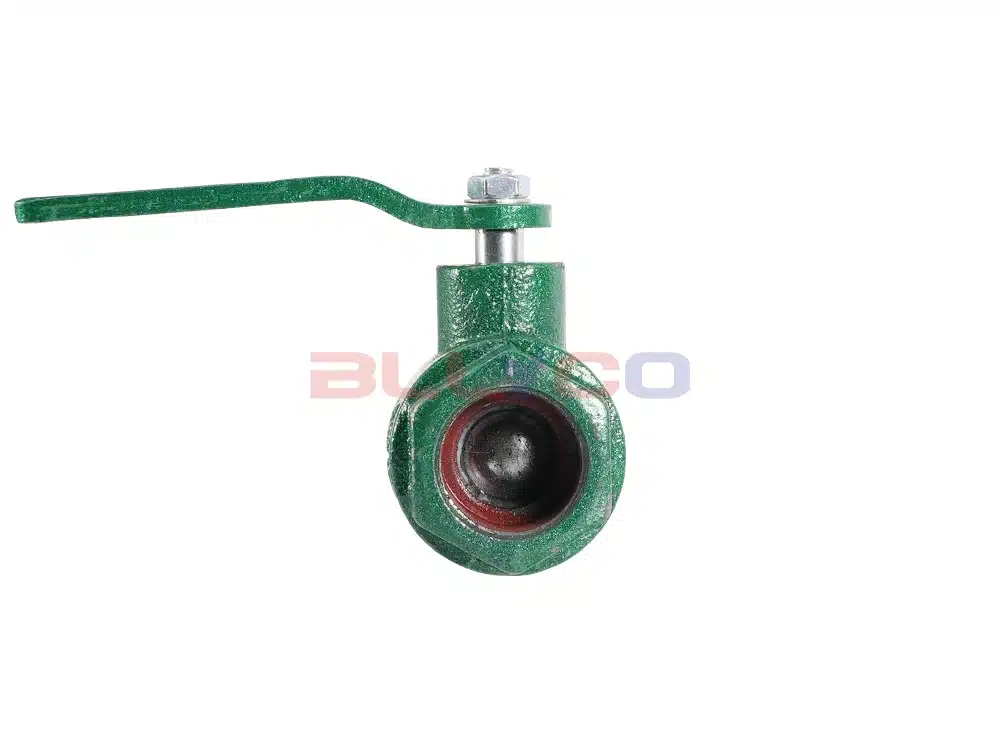

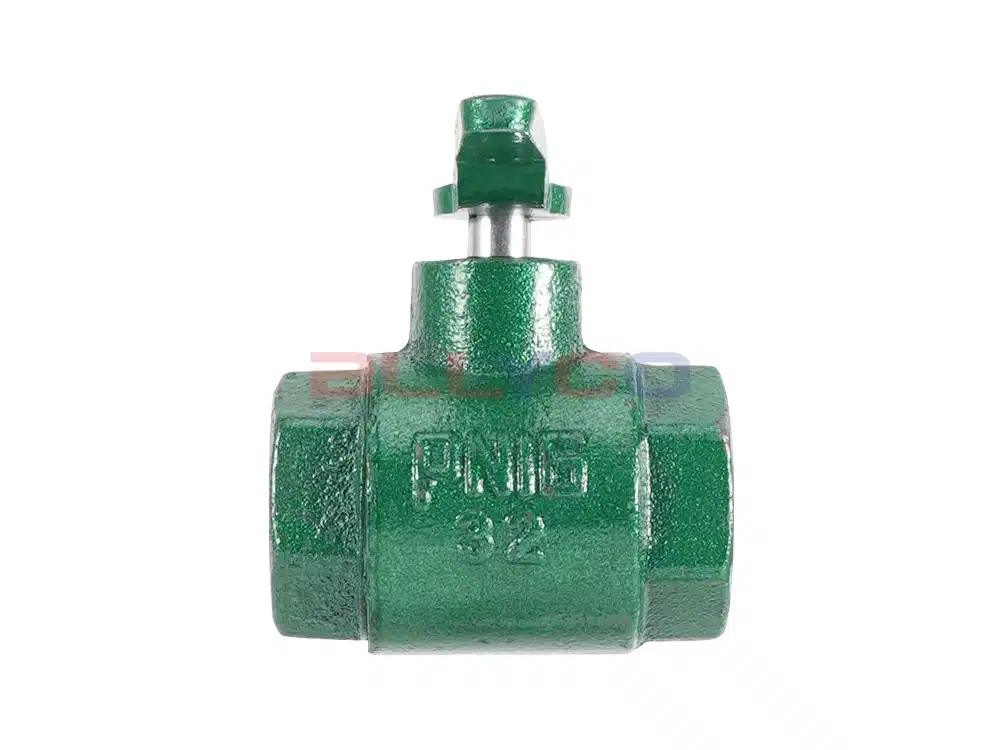

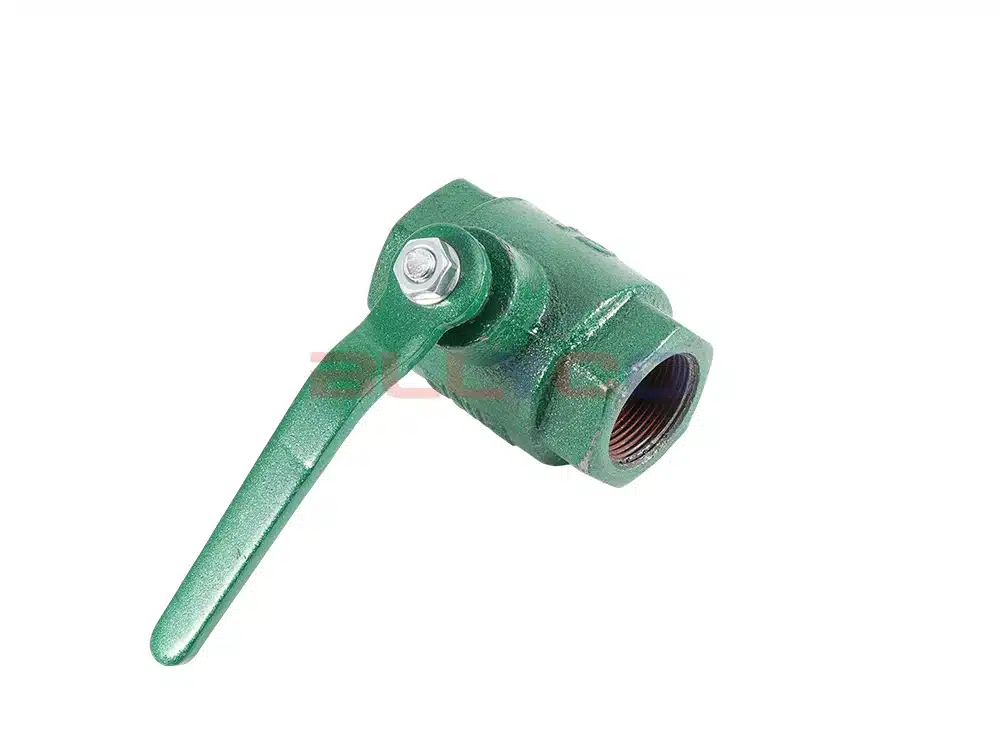

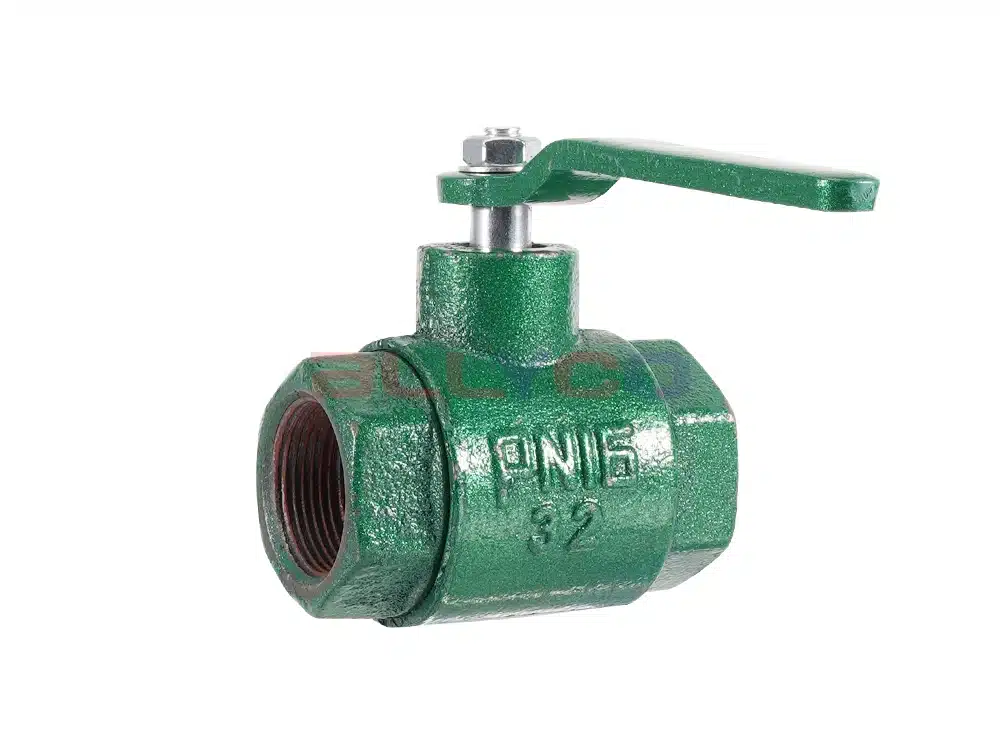

The Q11F-16 Cast Iron Internal Threaded Ball Valve is used in fluid pipelines in the water supply, sewage, construction, food, power, pharmaceutical, metallurgy, light industry and textiles, and energy sectors as a device for connecting and shutting off flow.
Product Features
- Made from HT200 material, it offers excellent castability, resistance to friction and wear, and vibration damping.
- The sealing material is polytetrafluoroethylene (PTFE), which ensures excellent sealing performance.
- The use of a disc-type valve stem significantly extends service life.
- Simple structure, easy to operate, quick opening and closing, and low fluid resistance.
Product Specifications
Product Model | Q11F-16 |
Valve Body Material | Cast Iron（HT200） |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, etc. |
Operating Temperature | ≤80℃ |
Product Size Guide
Nominal Diameter | L | D | A | H |
DN15 | 56 | 13 | 87 | 45 |
DN20 | 67 | 16 | 93 | 50 |
DN25 | 76 | 20 | 108 | 69 |
DN32 | 85 | 28 | 120 | 72 |
DN40 | 98 | 33 | 147 | 70 |
DN50 | 107 | 40 | 159 | 85 |
