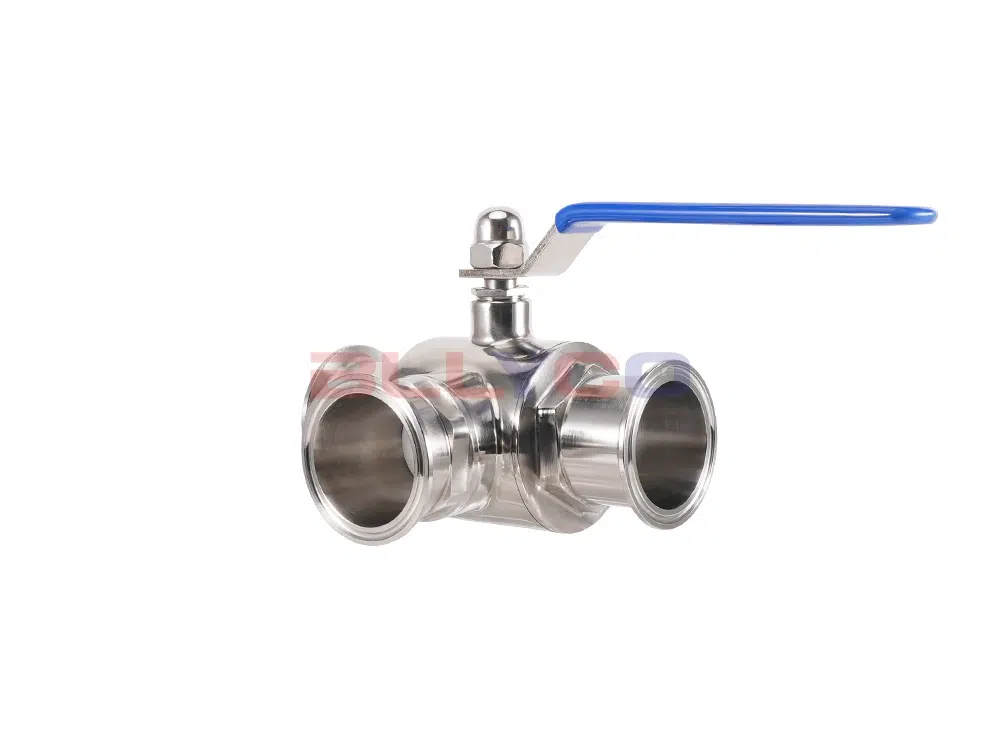

Name: 304 Stainless Steel Tri-Clamp Three-Way Ball Valve Q85F-10P
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: 304 Stainless Steel Tri-Clamp Three-Way Ball Valve Q85F-10P

304 Stainless Steel Tri-Clamp Three-Way Ball Valve Q85F-10P

Product Model: Q85F-10P
Valve Body Material: 304 Stainless Steel
Forms of Circulation: T-Type
Nominal Pressure: ≤1.0 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤120℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The Q85F-10P tri-clamp three-way ball valve features a T-shaped three-way configuration and primarily serves to merge or diverge flow in piping systems. The seal ring is fully enclosed, with no gaps or dead corners, and the sealing element is made of PTFE, ensuring excellent sealing performance. The three ends feature clamp connections, facilitating disassembly, cleaning, and maintenance. It is widely used in the coal chemical, petrochemical, rubber, paper, and pharmaceutical industries.

Product Features

It has low fluid resistance, and its resistance coefficient is equal to that of a pipe section of the same length.
Simple in design, compact, and lightweight.
The seals are made of polytetrafluoroethylene (PTFE) and provide excellent sealing performance.
The three ends are connected with clamps for easy disassembly, cleaning, and maintenance.

Product Specifications

Product Model	Q85F-10P
Valve Body Material	304 Stainless Steel
Forms of Circulation	T-Type
Nominal Pressure	≤1.0 MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤120℃

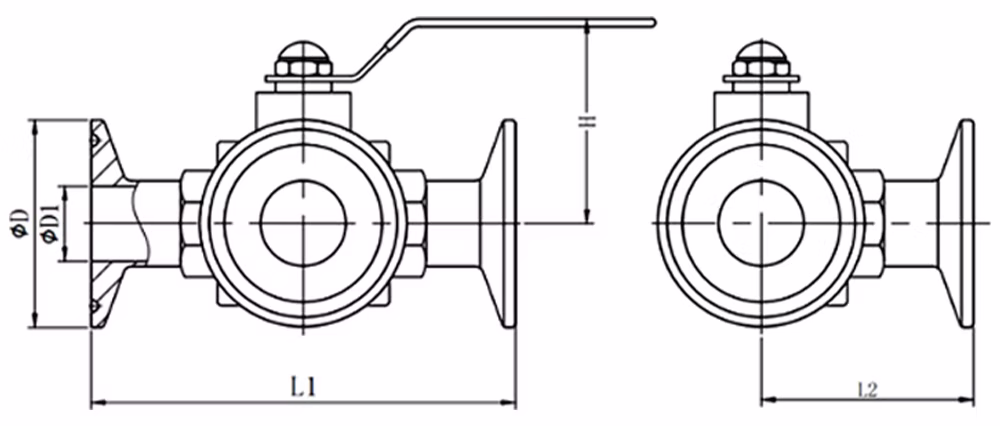

Product Size Guide

Pipe Outer Diameter	D	D1	L1	L2	H
Ф19	50.5	16	106	60	58
Ф25	50.5	22.4	126	61	62
Ф32	50.5	28.8	137	68	71
Ф38	50.5	35.1	154.5	76.2	81
Ф45	64	41.7	165.5	81	90
Ф51	64	47.8	168	83.4	90
Ф57	77.5	53	171	86	103
Ф63	77.5	59.5	185	94.5	103
Ф76	91	72.2	220	122	110
Ф89	106	85	240	134.5	118
Ф102	119	97.6	266	151	130

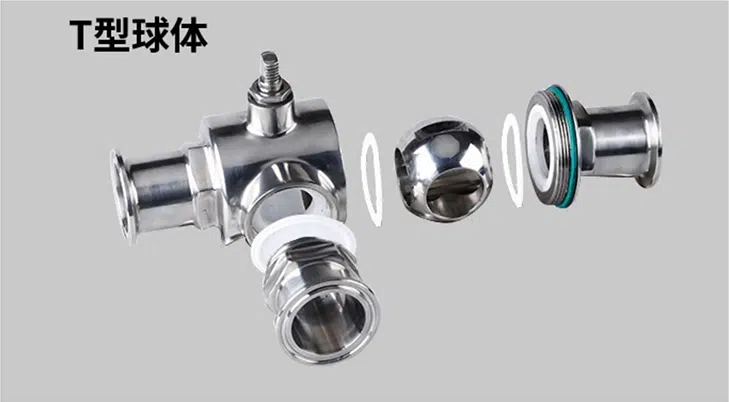

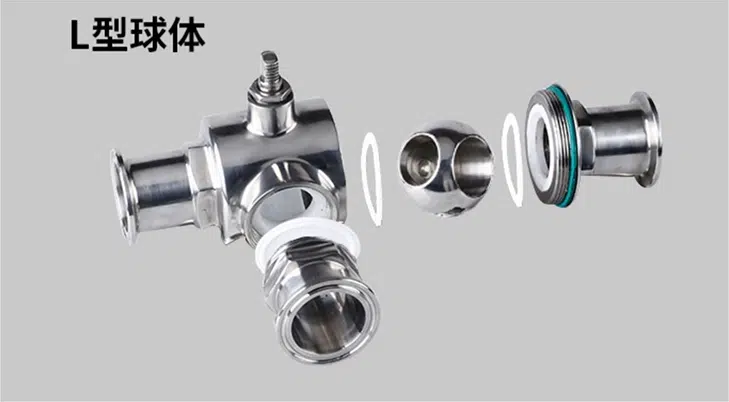

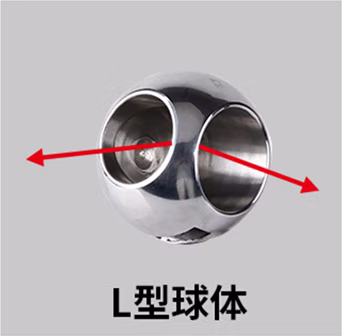

T-Type and L-Type Spheres

Installation Diagram
