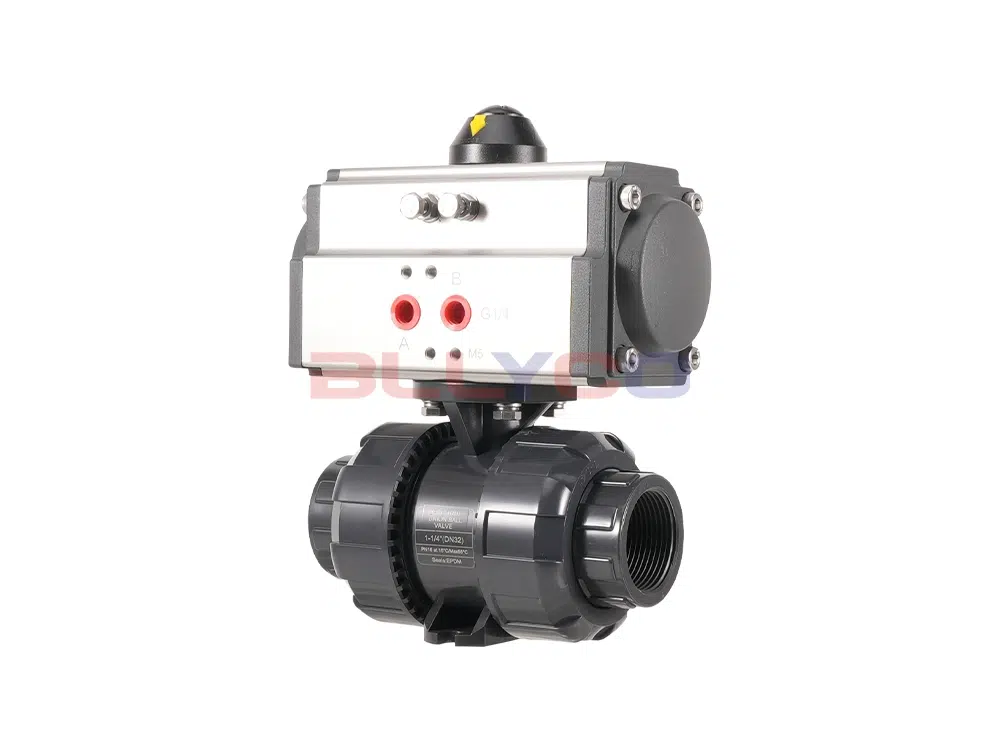

Name: UPVC Pneumatic Internal Threaded Double Union Ball Valve Q611F-10S
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: UPVC Pneumatic Internal Threaded Double Union Ball Valve Q611F-10S

UPVC Pneumatic Internal Threaded Double Union Ball Valve Q611F-10S

Product Model: Q611F-10S
Valve Body Material: UPVC
Cylinder Material: Aluminum Alloy
Cylinder Type: AT Series Double-Acting
Nominal Pressure: ≤1.0 MPa
Applicable Media: Clean water, wastewater, seawater, acidic and alkaline liquids, etc.
Operating Temperature: ≤55℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Send InquiryChat Now

Product Description

The UPVC pneumatic internal threaded double union ball valve is lightweight and highly corrosion-resistant, making it suitable for use in a wide range of applications, including potable water systems, seawater desalination, wastewater systems, and systems handling acids, alkalis, and conventional chemical solutions. The UPVC pneumatic internal threaded double union ball valve features a double-union connection (internal threaded and solvent cement socket joint), allowing for quick assembly without the need for special tools. It offers numerous advantages, including a compact design, corrosion resistance, ease of disassembly, convenient maintenance, and a long service life.

Product Specifications

Product Model	Q611F-10S
Valve Body Material	UPVC
Cylinder Material	Aluminum Alloy
Cylinder Type	AT Series Double-Acting
Nominal Pressure	≤1.0 MPa
Applicable Media	Clean water, wastewater, seawater, acidic and alkaline liquids, etc.
Operating Temperature	≤55℃

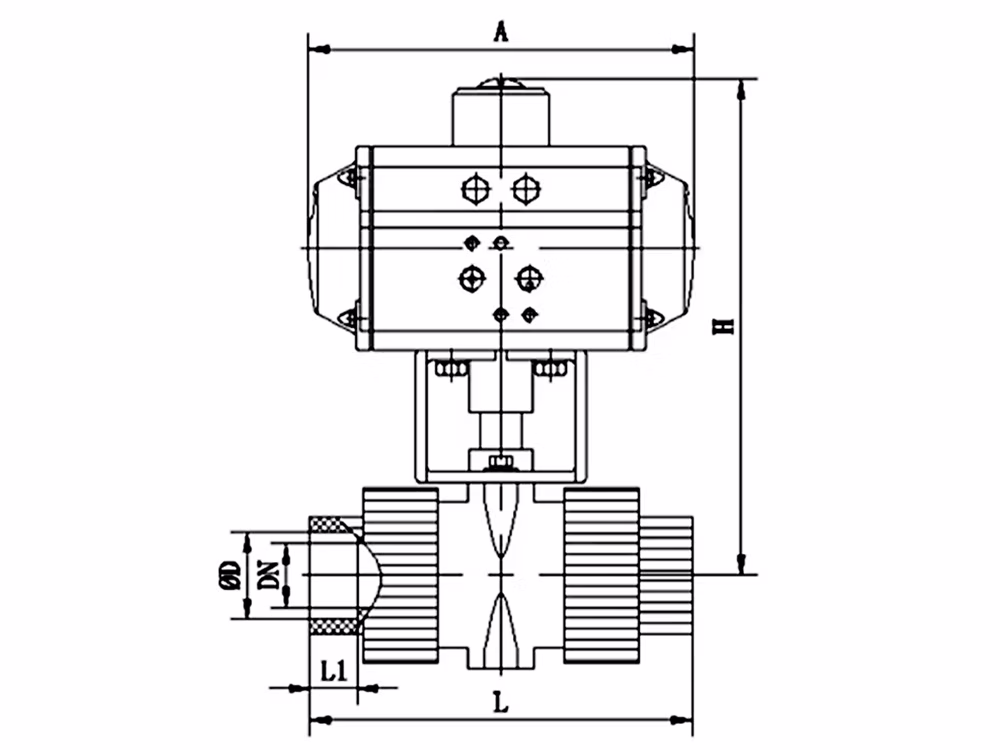

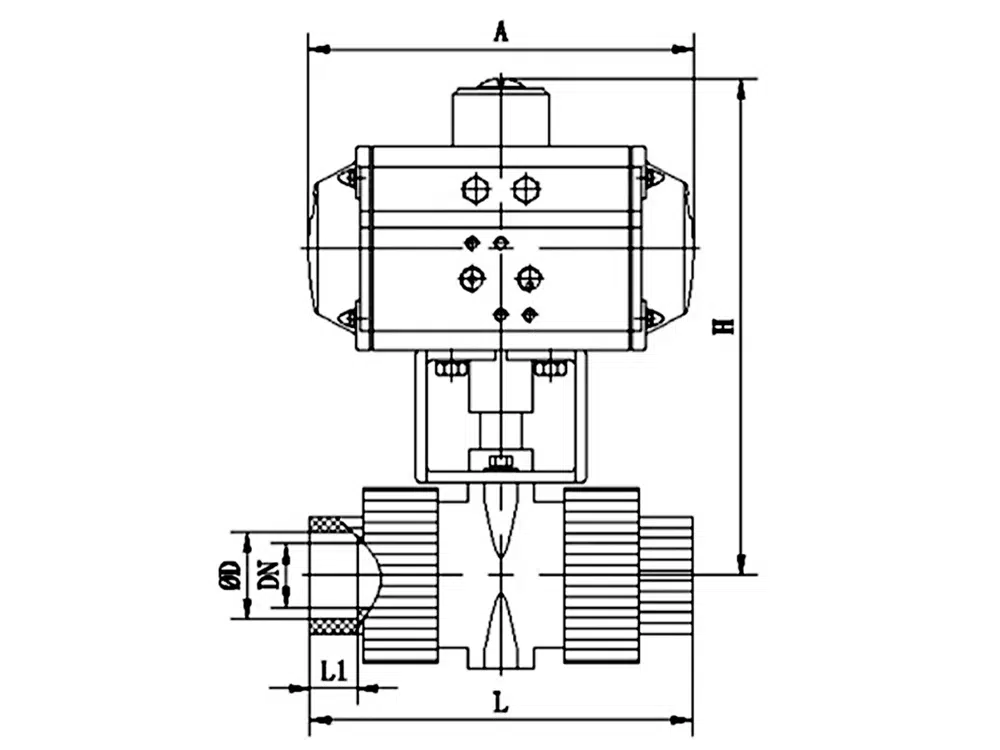

Product Size Guide

DN	D	L1	L	A	H
15	20	15	120	144	175
20	25	17	129	144	180
25	33	20	147	144	187
32	40	23	164	163	220
40	50	25	182	214	245
50	63	28	209	214	250
65	75	32	247	252	300
80	90	35	288	252	332
100	110	45	340	270	387
