Name: Ductile Iron Flanged Plunger Valve U41S-16Q
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Ductile Iron Flanged Plunger Valve U41S-16Q

Ductile Iron Flanged Plunger Valve U41S-16Q

Product Model: U41S-16Q
Valve Body Material: Ductile Iron
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, steam, oil, etc.
Operating Temperature: ≤250℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The U41S-16Q flanged plunger valve is a commonly used fluid control valve that regulates the flow of the medium through the movement of the piston within the valve body, thereby enabling functions such as fluid connection and shutoff. This valve features a simple structure, easy maintenance, good sealing performance, and a long service life. The plunger valve has a longer control stroke than a globe valve, so throttling control is more difficult than with a globe valve. It is not suitable for applications with specific regulation requirements. It is widely used in pipelines under various operating conditions in industries such as petroleum, chemicals, pharmaceuticals, fertilizer, and power generation.

Product Specifications

Product Model	U41S-16Q
Valve Body Material	Ductile Iron
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, steam, oil, etc.
Operating Temperature	≤250℃

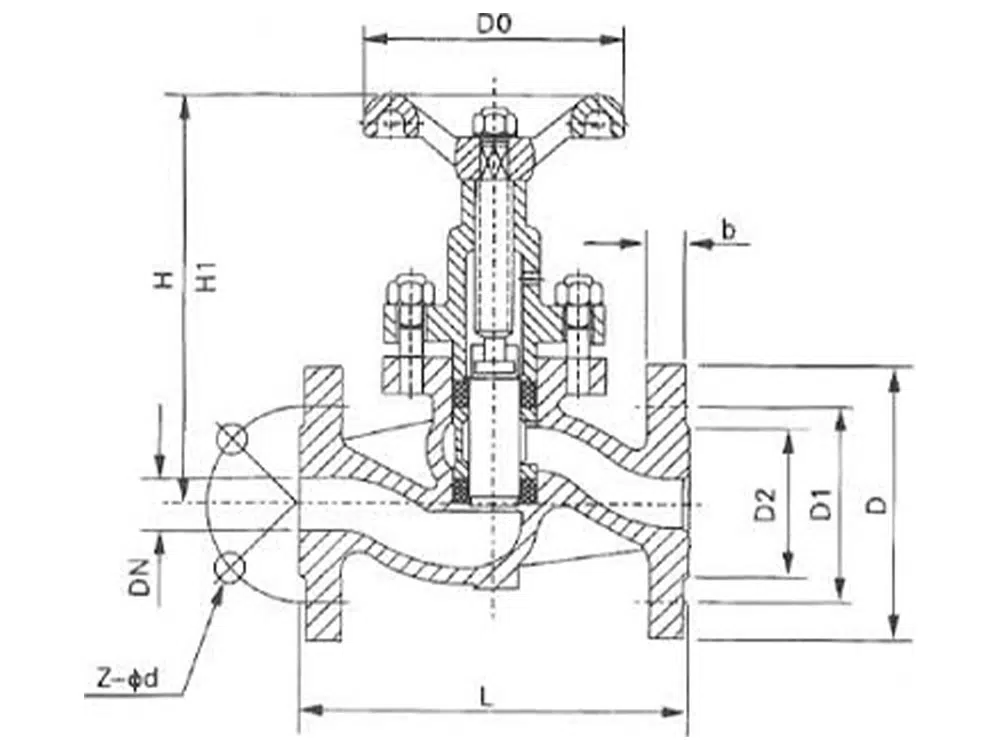

Product Size Guide

DN	L	D	D1	D2	b	z-Φd	H	H1	D0
15	130	95	65	45	14	4-14	116	144	85
20	150	105	75	55	16	4-14	142	176	85
25	160	115	85	65	16	4-14	163	205	100
32	180	135	100	78	18	4-18	182	227	120
40	200	145	110	85	18	4-18	210	260	140
50	230	160	125	100	20	4-18	230	286	160
65	290	180	145	120	20	4-18	250	310	180
80	310	195	160	135	22	8-18	269	340	200
100	350	215	180	155	24	8-18	278	356	240
125	400	245	210	185	26	8-18	332	440	375
150	480	280	240	210	28	8-23	434	562	375
200	600	335	295	265	30	12-23	498	660	460
250	700	405	355	320	38	12-23	540	660	460
300	750	460	410	360	38	12-23	650	680	460
