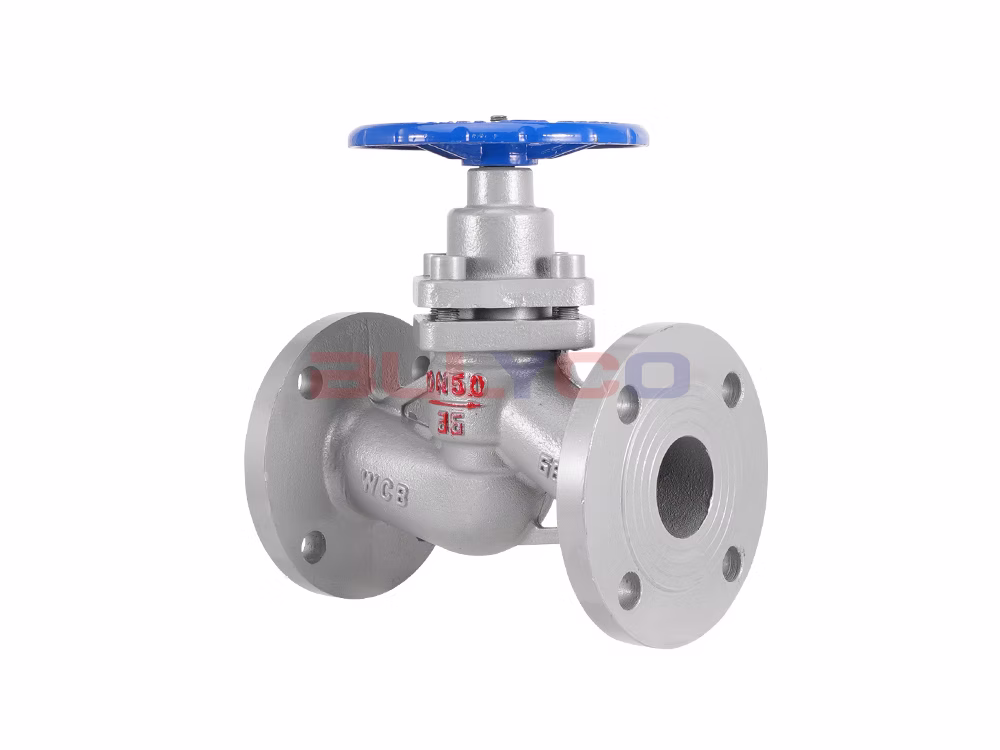

Product Description

The U41S-16C cast steel flanged plunger valve features a plunger surface machined using a high-precision external cylindrical grinder, and its sealing ring is made of a new type of non-toxic sealing material with high elasticity and wear resistance. This ensures reliable sealing and durability, thereby extending the service life of the plunger valve. Flanged plunger valves can be manufactured in accordance with ANSI, Japanese, or Chinese standards. When installed on steam pipelines, these valves ensure zero leakage at the stem, making them one of the most commonly used valves in boiler steam systems. The absence of fluid loss improves energy efficiency, enhances the safety of production equipment, reduces maintenance costs and frequency, lowers operating costs, and provides a clean and safe working environment.

How It Works

In a cast steel plunger valve, when the handwheel is turned, the valve stem drives the plug to move up and down reciprocally within the bore frame, thereby opening and closing the valve. The plug and the sealing ring are designed with an interference fit. By adjusting the flanged bolts in the gland, the sealing ring is compressed, generating a lateral force that seals against the bore surface of the valve body and the outer circumference of the plug, thereby ensuring the valve’s tightness.

Product Features

When opening or closing a plunger valve, the plug moves slowly within the seal ring, resulting in virtually no wear on the contact surfaces.
The sealing ring is made of a new type of non-toxic sealing material with high elasticity and excellent wear resistance, ensuring reliable sealing and long-lasting durability.
An interference fit is used between the plunger and the sealing ring in the valve, ensuring the valve’s seal integrity and eliminating both internal and external leakage.
When closed, the plunger engages with the lower seal, blocking the flow path; when open, although the plunger disengages from the lower seal, it remains within the upper seal, maintaining isolation from the outside environment and preventing leakage.

Product Specifications

Product Model	U41S-16C
Valve Body Material	Cast Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, steam, oil, etc.
Operating Temperature	≤250℃

Product Size Guide

DN	L	D	D1	D2	b	z-Φd	H	H1	D0
15	130	95	65	45	14	4-14	116	144	85
20	150	105	75	55	16	4-14	142	176	85
25	160	115	85	65	16	4-14	163	205	100
32	180	135	100	78	18	4-18	182	227	120
40	200	145	110	85	18	4-18	210	260	140
50	230	160	125	100	20	4-18	230	286	160
65	290	180	145	120	20	4-18	250	310	180
80	310	195	160	135	22	8-18	269	340	200
100	350	215	180	155	24	8-18	278	356	240
125	400	245	210	185	26	8-18	332	440	375
150	480	280	240	210	28	8-23	434	562	375
200	600	335	295	265	30	12-23	498	660	460
250	700	405	355	320	38	12-23	540	660	460
300	750	460	410	360	38	12-23	650	680	460
