Product Description

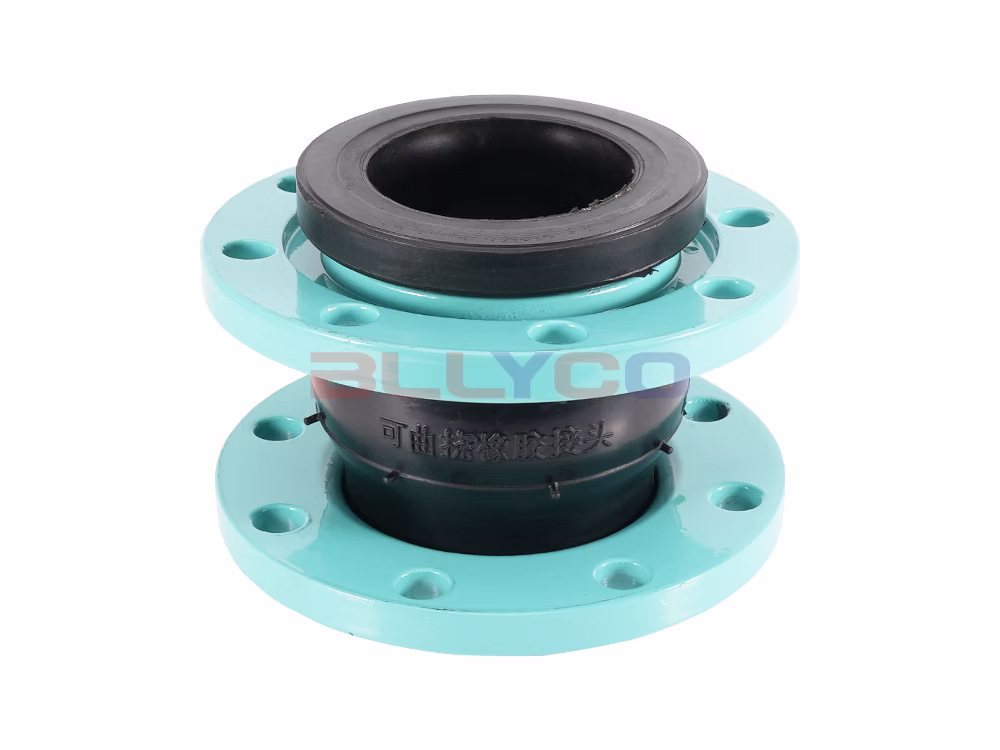

Rubber Flexible Joint, also known as rubber joint, shock absorber, pipe shock absorber, shock absorber hose, flexible joint, etc., is a kind of pipeline joint with high elasticity, high airtightness, resistance to medium and weather. Flexible rubber joint is a hollow rubber product that plays the role of flexible connection between metal pipes. Since the flexible rubber joint has good comprehensive performance, it is widely used in chemical industry, construction, water supply, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire fighting, electric power and other basic engineering.
Product Features
- Compact, lightweight, highly flexible, and easy to install and maintain.
- During installation, it can accommodate lateral, axial, and angular displacement without being restricted by misalignment of the pipes or parallelism of the flanges.
- It reduces noise transmitted through the structure during operation and has strong vibration-damping capabilities.
Product Specifications
Product Model | KXT-16C |
Rubber Material | NBR / EPDM |
Flanged Material | Carbon Steel |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, gas, oil, etc. |
Operating Temperature | ≤80℃ |
Product Size Guide
Nominal Diameter | L | M | N |
DN25 | 95 | 85 | 4 |
DN32 | 95 | 100 | 4 |
DN40 | 95 | 110 | 4 |
DN50 | 105 | 125 | 4 |
DN65 | 115 | 145 | 4 |
DN80 | 135 | 160 | 8 |
DN100 | 150 | 180 | 8 |
DN125 | 165 | 210 | 8 |
DN150 | 180 | 240 | 8 |
DN200 | 210 | 295 | 12 |
DN250 | 230 | 355 | 12 |
DN300 | 245 | 410 | 12 |
DN350 | 255 | 470 | 16 |
DN400 | 255 | 525 | 16 |
DN450 | 255 | 585 | 20 |
DN500 | 260 | 650 | 20 |
DN600 | 260 | 770 | 20 |
