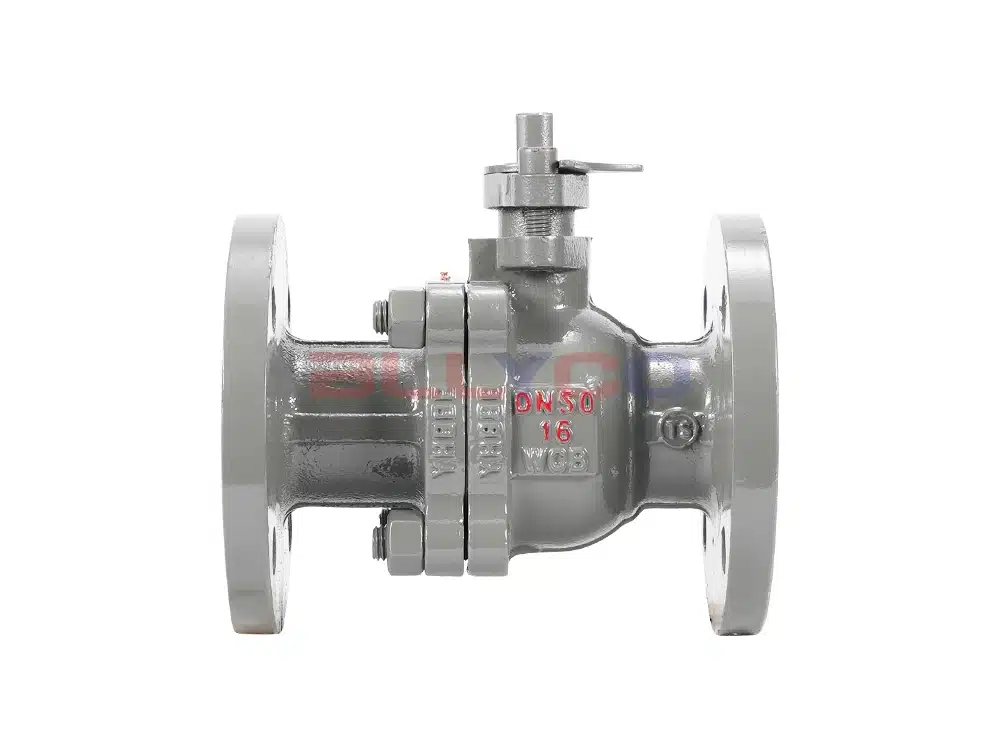

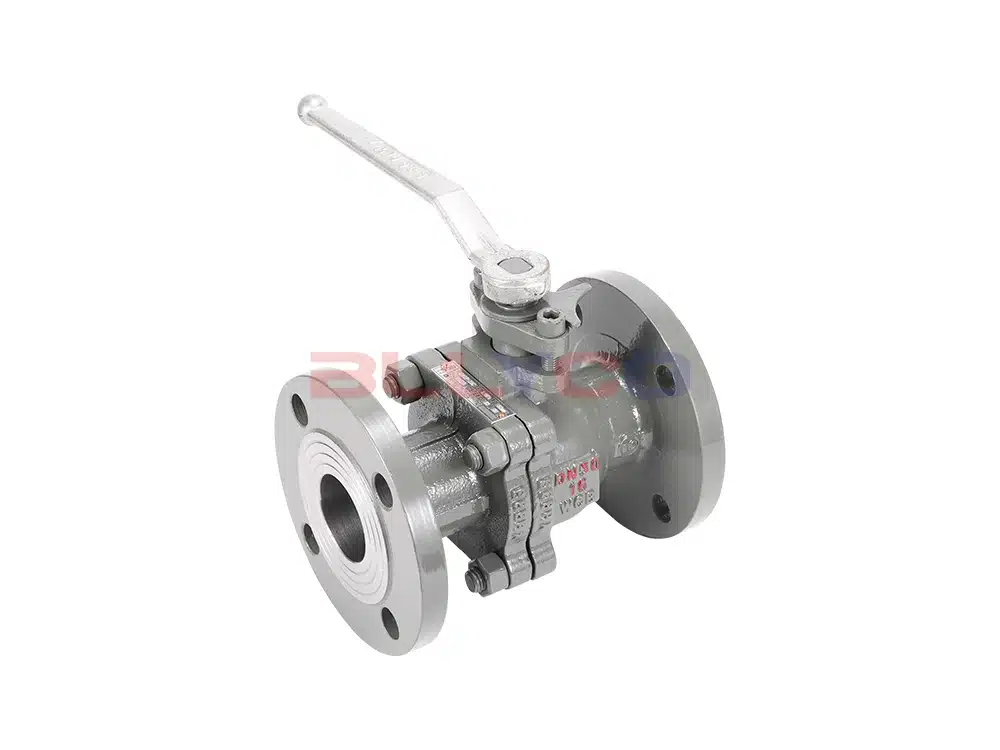

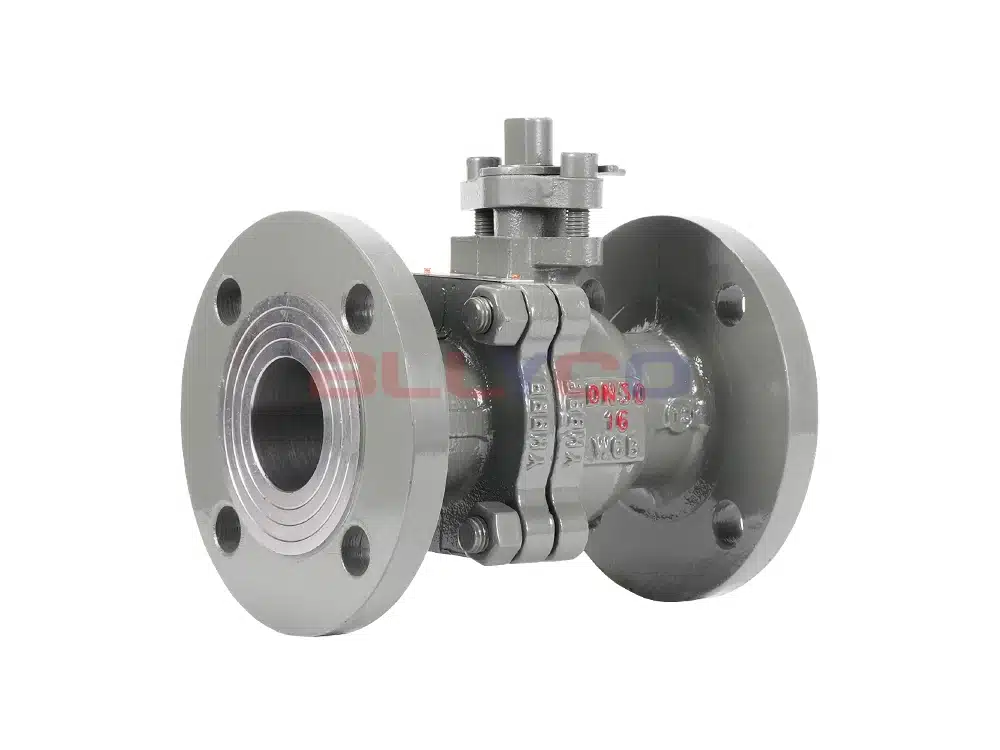

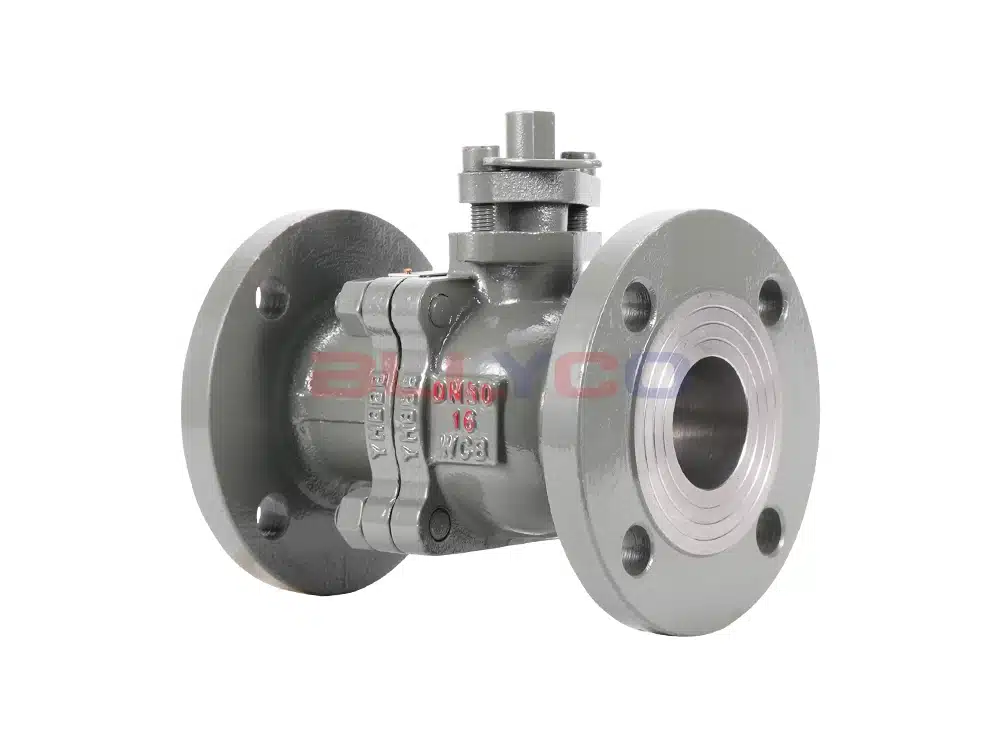

Product Description
The Q41F-16C Cast Steel Flanged Ball Valve is primarily used to shut off or open the flow of media in pipelines; it can also be used for regulating and controlling fluid flow. Cast steel ball valves are applicable to a wide range of media, including water, steam, oil, and acidic or alkaline substances.
Product Features
- Among various types of valves, ball valves have low flow resistance. When a full-bore ball valve is open, the ball passage, the valve body passage, and the connecting pipe have the same diameter and form a single, unobstructed path, allowing the medium to flow through with virtually no loss.
- A ball valve can be fully opened or closed with a 90° rotation, allowing for rapid operation. Compared to gate valves and globe valves of the same size, ball valves are smaller and lighter, making them easier to install in piping systems.
Product Specifications
Product Model | Q41F-16C |
Valve Body Material | Cast Steel |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, steam, oil, etc. |
Operating Temperature | ≤150℃ |

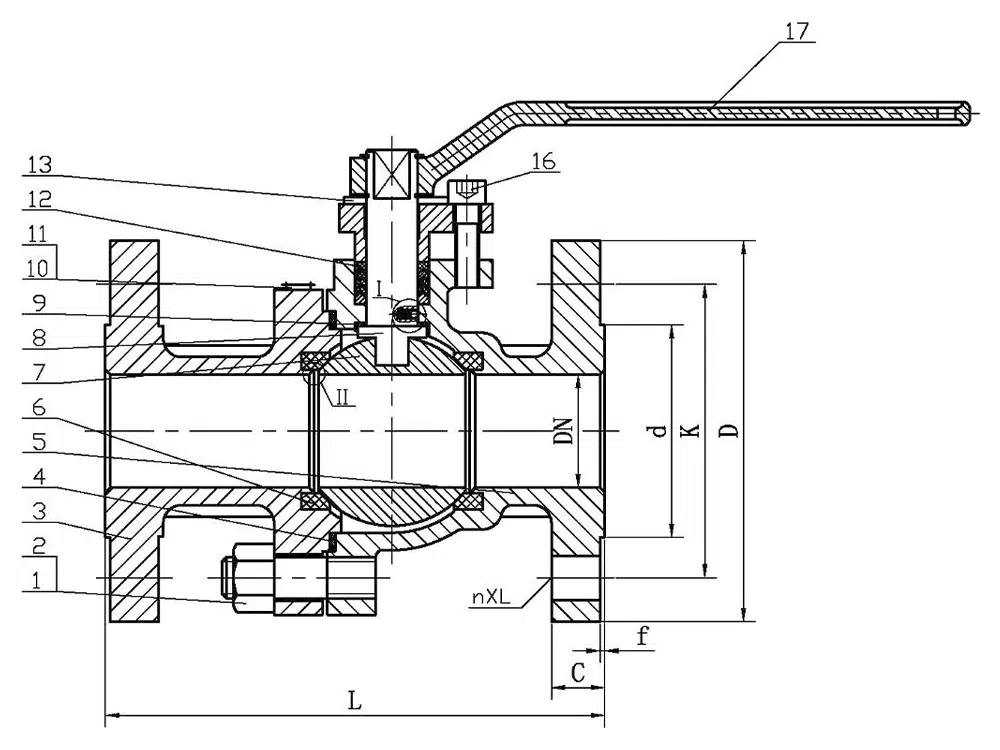

Product Size Guide
Nominal Diameter | L | D | K | d | C | f | nXL |
DN15 | 130 | 95 | 65 | 45 | 14 | 2 | 4-14 |
DN20 | 140 | 105 | 75 | 55 | 14 | 2 | 4-14 |
DN25 | 150 | 115 | 85 | 65 | 14 | 2 | 4-14 |
DN32 | 165 | 135 | 100 | 78 | 16 | 2 | 4-18 |
DN40 | 180 | 145 | 110 | 85 | 16 | 3 | 4-18 |
DN50 | 200 | 160 | 125 | 100 | 16 | 3 | 4-18 |
DN65 | 220 | 180 | 145 | 120 | 18 | 3 | 4-18 |
DN80 | 250 | 195 | 160 | 135 | 20 | 3 | 8-18 |
DN100 | 280 | 215 | 180 | 155 | 20 | 3 | 8-18 |
DN125 | 320 | 245 | 210 | 185 | 22 | 3 | 8-18 |
DN150 | 360 | 285 | 240 | 210 | 24 | 3 | 8-23 |
DN200 | 400 | 335 | 295 | 265 | 26 | 3 | 12-23 |
DN250 | 450 | 405 | 355 | 320 | 30 | 3 | 12-23 |
