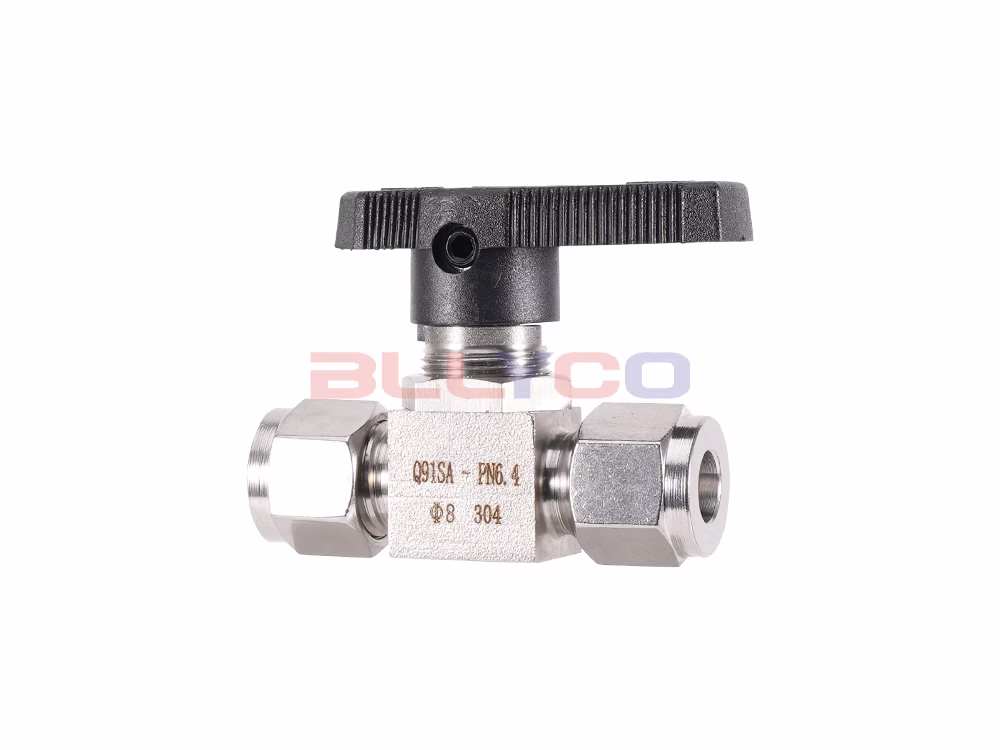

Name: 304 Stainless Steel Ferrule-Type Straight-Through Ball Valve Q91SA-64P
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: 304 Stainless Steel Ferrule-Type Straight-Through Ball Valve Q91SA-64P

304 Stainless Steel Ferrule-Type Straight-Through Ball Valve Q91SA-64P

Product Model: Q91SA-64P
Valve Body Material: 304 Stainless Steel
Nominal Pressure: ≤6.4 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤65℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The 91SA ferrule-type ball valve is a critical component in instrumentation and measurement piping systems. The Q91SA ferrule-type ball valve features a compact design, secure connections, high pressure resistance, excellent sealing performance and repeatability, ease of installation and maintenance, and a long service life. It is widely used in urban construction, chemical, metallurgical, petroleum, pharmaceutical, food, and beverage industries, and is suitable for various industrial piping systems to open or shut off the flow path.

Product Specifications

Product Model	Q91SA-64P
Valve Body Material	304 Stainless Steel
Nominal Pressure	≤6.4 MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤65℃

Product Size Guide

Specifications	Pipe Outer Diameter	D0	L	L1	H	S
Φ3	Φ3mm	3	50	19	44	52
Φ4	Φ4mm	4	53	19	44	52
Φ6	Φ6mm	6	51	18	44	52
Φ8	Φ8mm	8	56	19	46	52
Φ10	Φ10mm	10	61	24	53	64
Φ12	Φ12mm	12	68	25	55	64
Φ14	Φ14mm	14	74	28	60	74
Φ16	Φ16mm	16	75	29	61	74
Φ18	Φ18mm	18	78	30	62	74
Φ20	Φ20mm	20	83	33	72	98
Φ22	Φ22mm	22	88	35	73	98
Φ25	Φ25mm	25	113	42	77	98
Φ1/8	Φ3.17mm	3.17	50	19	44	52
Φ1/4	Φ6.35mm	6.35	54	19	44	52
Φ3/8	Φ9.53mm	9.53	61	24	53	64
Φ1/2	Φ12.7mm	12.7	68	25	55	64
Φ3/4	Φ19.05mm	19.05	83	33	72	98
Φ1"	Φ25.4mm	25.4	113	42	77	98
