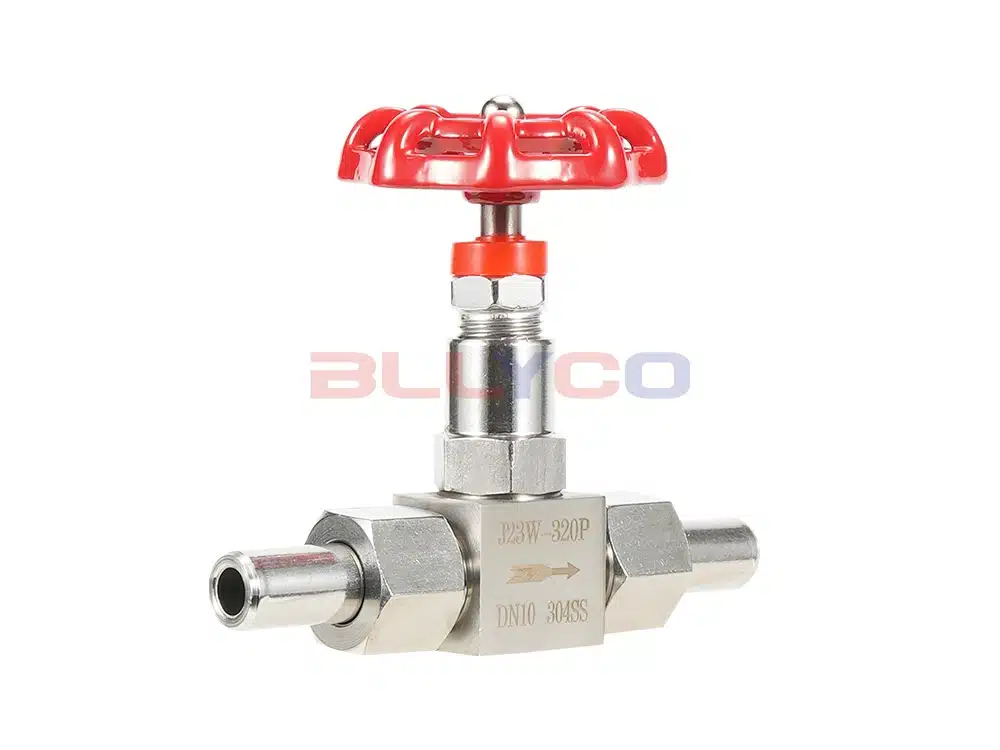

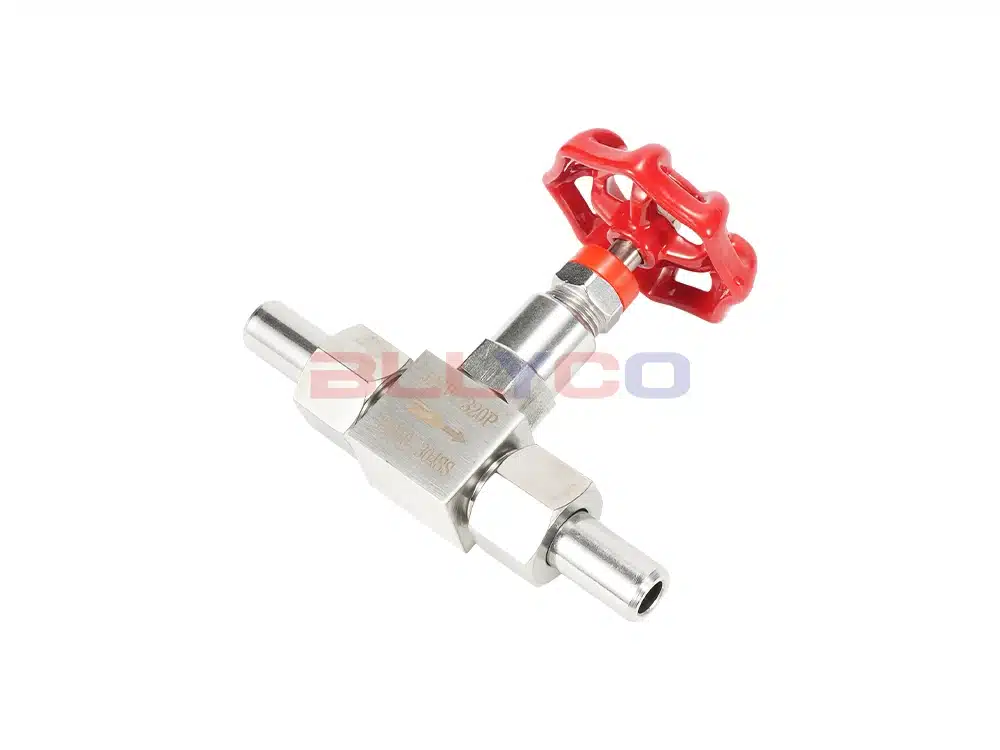

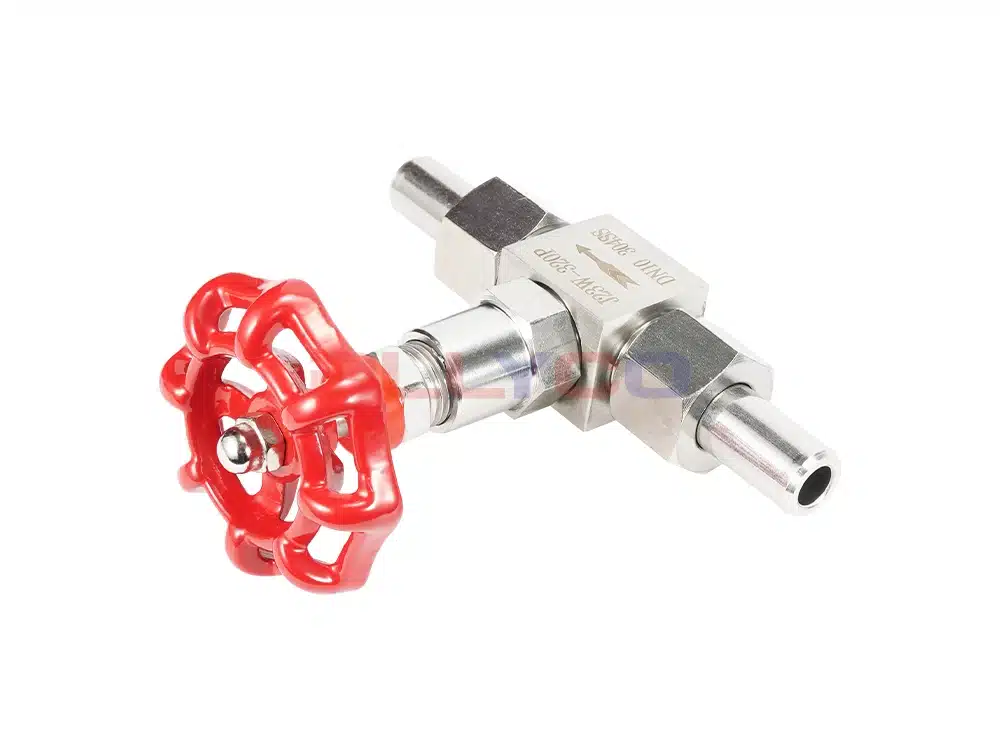

304 Stainless Steel Welded Needle Valve J23W-160P

Product Description

The J23W welded needle valve operates on the same principle as a globe valve; the valve core is a conical needle-shaped body with a conical sealing surface. The valve core moves up and down along the centerline of the fluid flow to control the opening and closing of the valve or adjust the opening degree. Turning the valve clockwise closes it, while turning it counterclockwise opens it. It features a lifting-rotating stem structure (the handwheel rotates and moves up and down with the valve stem, and the locknut is mounted on the valve body). It is widely used in the chemical, petrochemical, petroleum, papermaking, mining, power generation, liquefied gas, food, pharmaceutical, water supply and drainage, municipal, mechanical equipment, electronics, and urban construction sectors, among others.

Product Features

1. The structure is simple, making it relatively easy to manufacture and maintain.
2. Short stroke and fast opening and closing times.
3. It provides excellent sealing performance, low friction between sealing surfaces, and a long service life.

Product Specifications

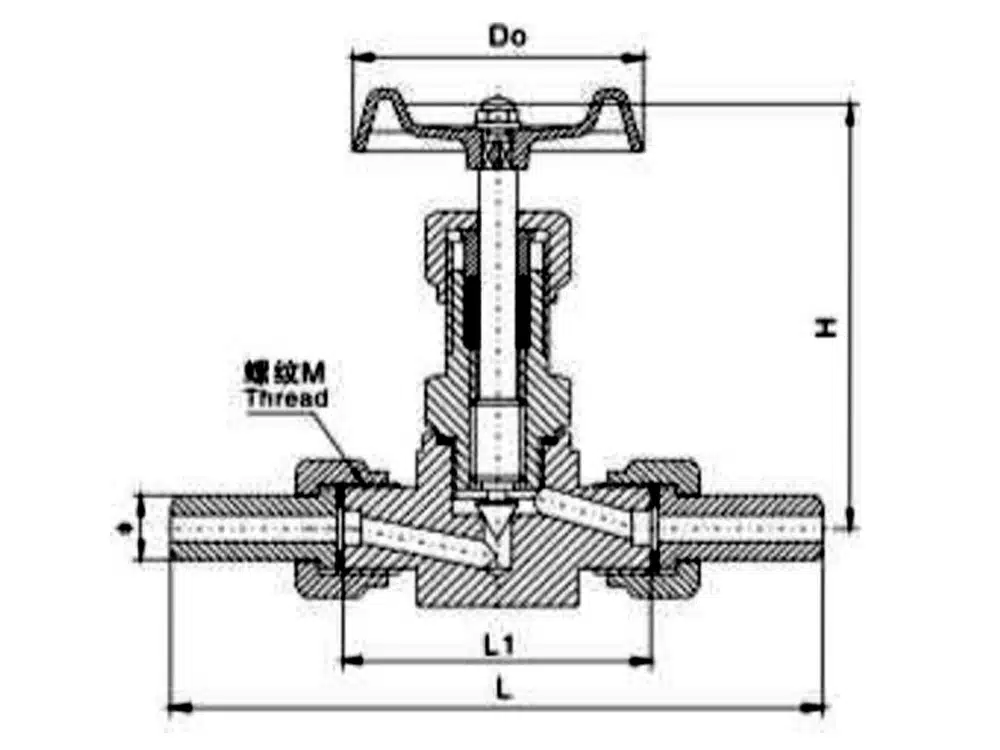

Product Size Guide
