Name: General Purpose Radial Pressure Gauge Y100 Series
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: General Purpose Radial Pressure Gauge Y100 Series

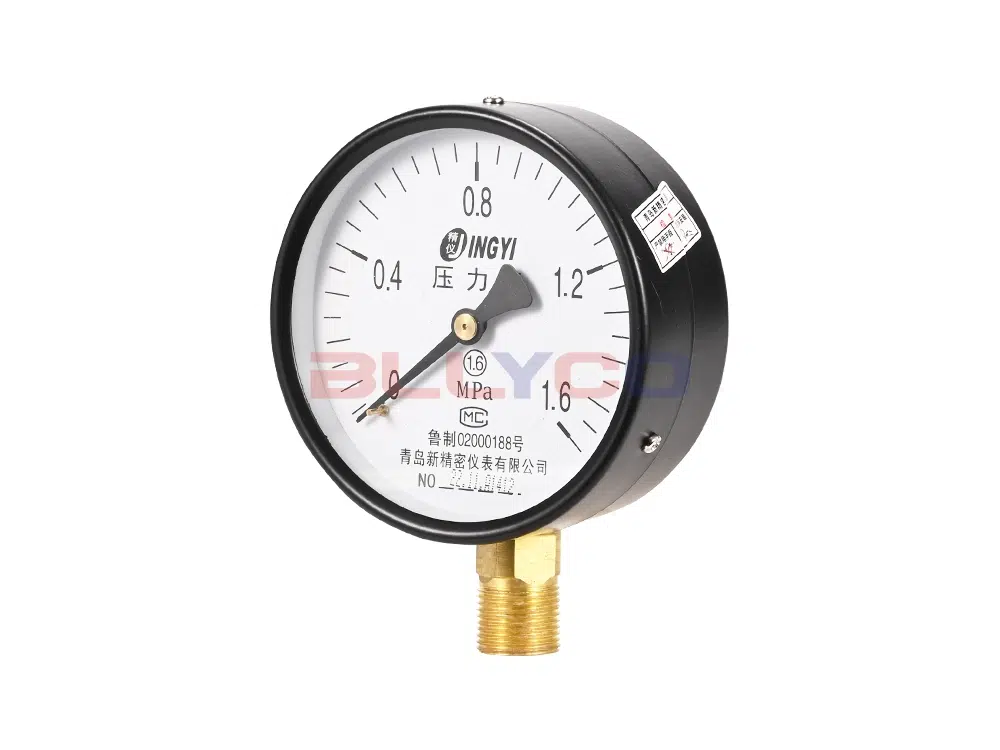

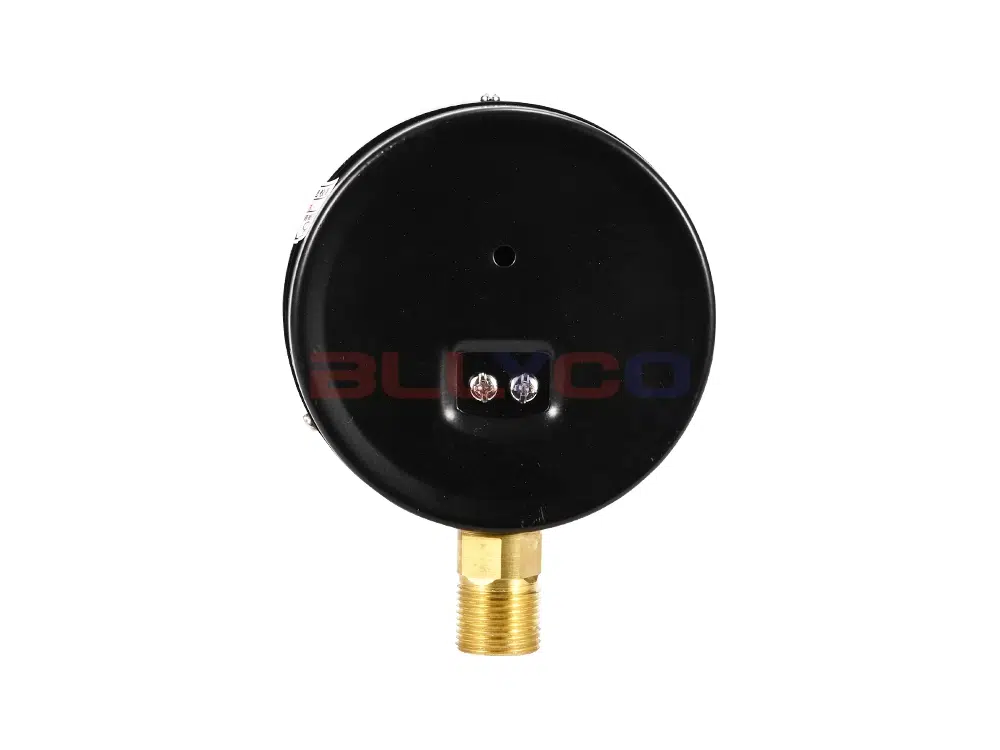

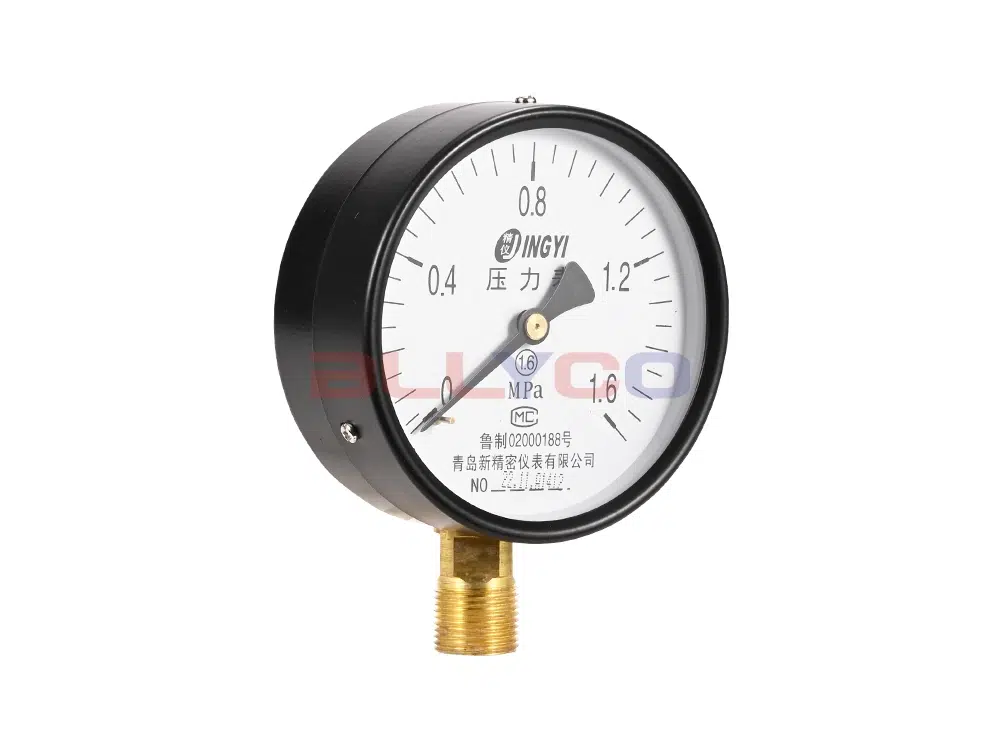

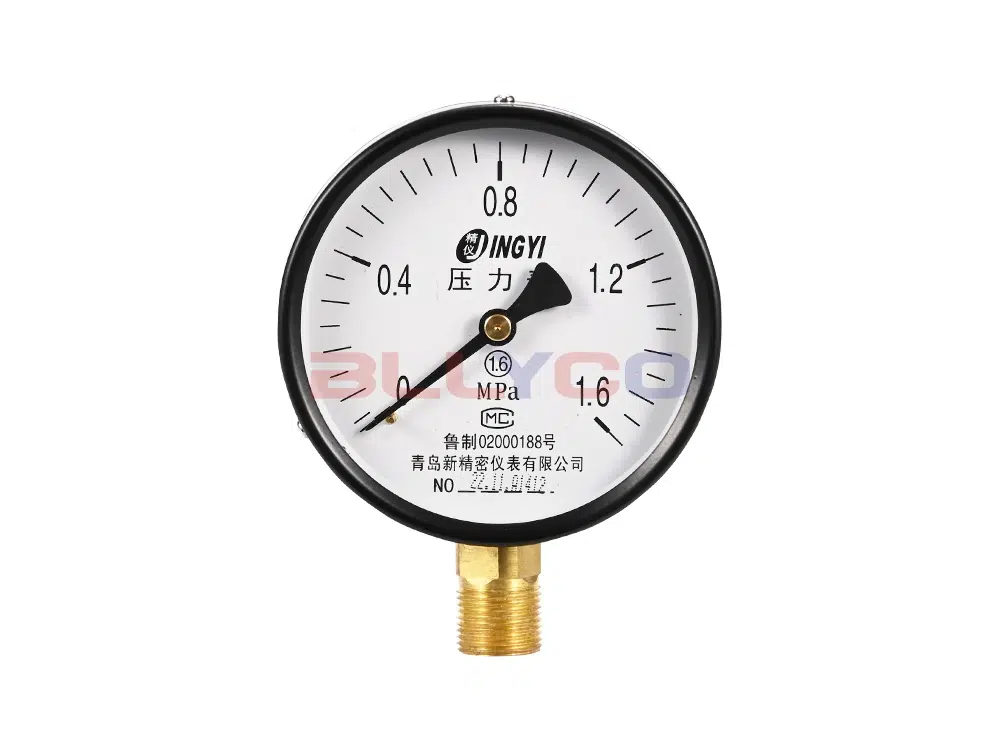

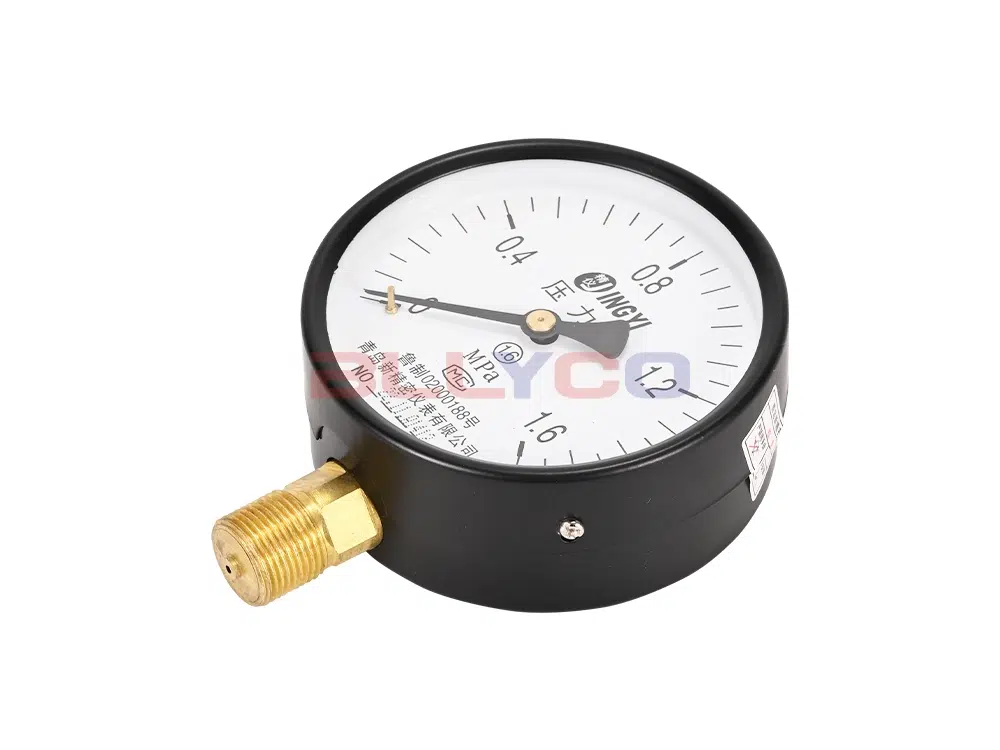

General Purpose Radial Pressure Gauge Y100 Series

Product Model: Y100 Series
Accuracy Class: Class 1.6
Process Connection: M20*1.5
Case Material: Carbon Steel
Socket Material: Brass (UNS C36000 equivalent)
Bourdon Tube Material: Phosphor Bronze (CuSn4, equivalent to UNS C51100)/li>
Movement: Brass Movement

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

Y100 general purpose radial pressure gauge (0–1.6 MPa) is designed for measuring the pressure of liquids, steam, and gases that are non-explosive, non-crystallizing, non-solidifying, and non-corrosive to steel, copper, and copper alloys.

Structural Principles

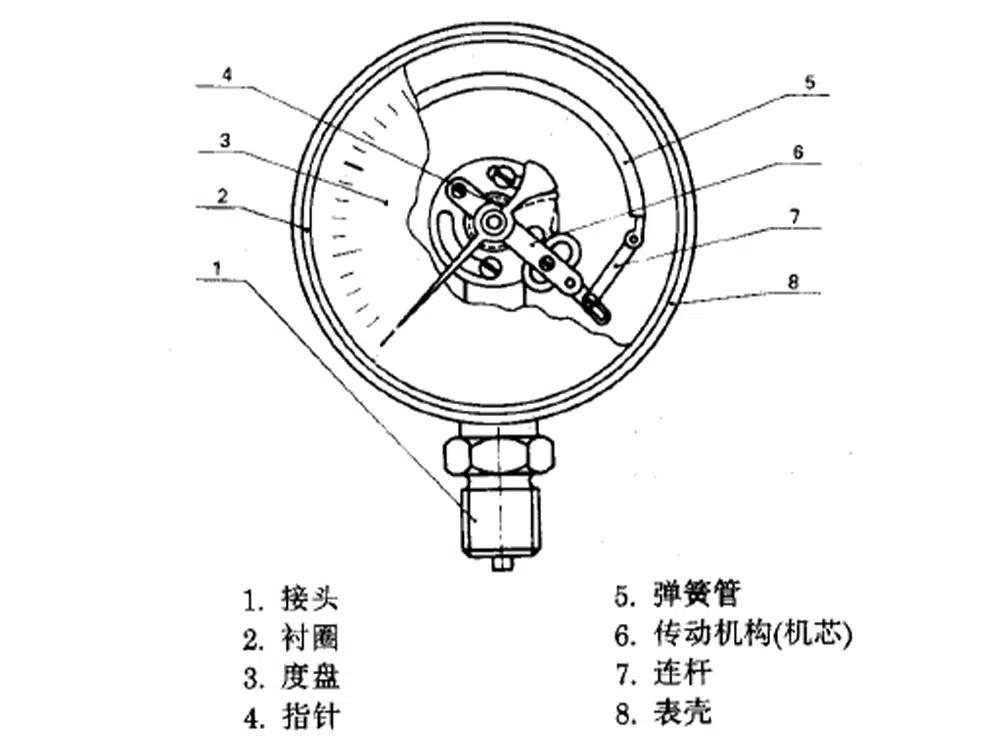

The measuring system of a pressure gauge consists of a connection fitting, a spring-loaded Bourdon tube, and a transmission mechanism, which work together to indicate the reading via a pointer. When the pressure of the measured medium is transmitted through the connection fitting to the spring-loaded Bourdon tube, the tube undergoes elastic deformation under the pressure, thereby driving the transmission mechanism and the pointer. The scale value indicated by the pointer on the pressure gauge dial at this moment represents the pressure of the measured medium.

Model Examples

Y100 refers to a standard radial-type pressure gauge with a dial diameter of 100 mm.
Y100Z refers to a standard axial-type pressure gauge with a dial diameter of 100 mm.
Y100ZT denotes a standard axial-type pressure gauge with a rimmed face and a 100-mm dial diameter.

Product Specifications

Product Model	Y100 Series
Accuracy Class	Class 1.6
Measuring Range	0–1.6 MPa (0–0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60, or -0.1 to 0, 0.06, 0.15, 0.3, 0.5, 0.9, 1.5, 2.4 MPa)
Process Connection	M20*1.5
Case Material	Carbon Steel
Socket Material	Brass (UNS C36000 equivalent)
Bourdon Tube Material	Phosphor Bronze (CuSn4, equivalent to UNS C51100)
Movement	Brass Movement
Ambient Temperature Range	-40°C to +70°C, with relative humidity not exceeding 85%
Temperature Effect	≤ 0.4% per 10°C (when operating temperature deviates from 20°C ± 5°C)
Weight	Approx. 0.5 kg

Product Size Guide

Model	D	L	B	H	d	d1
Y100	100	20	90	42	M20*1.5	6
