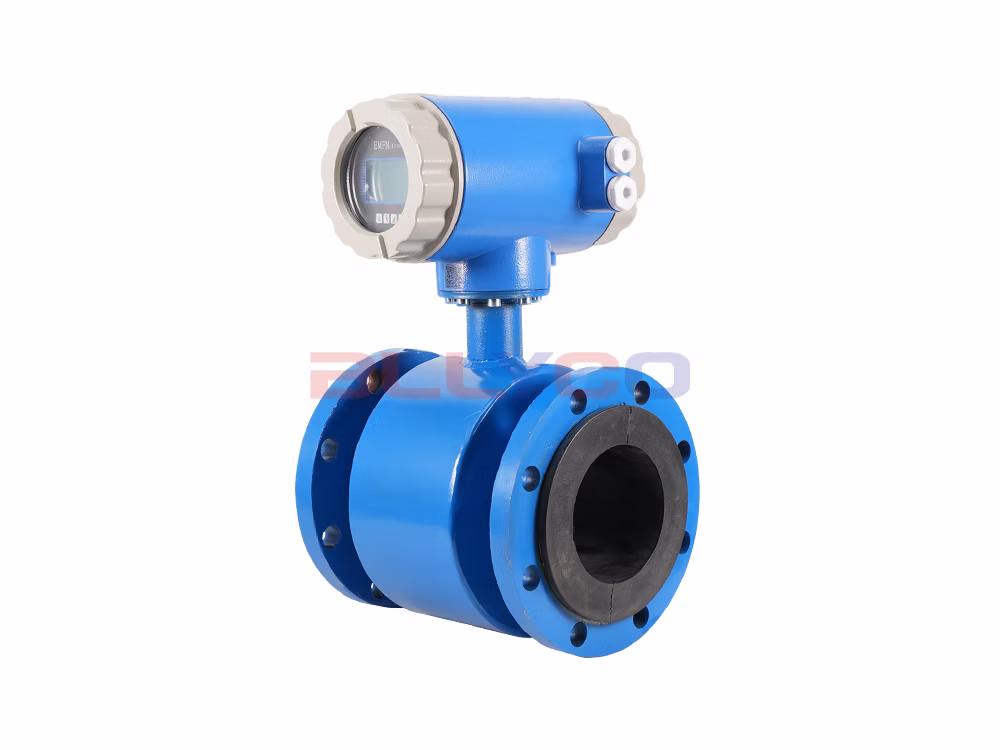

Product Description

The LDG series intelligent electromagnetic flowmeter is a fully intelligent flowmeter developed based on Faraday's law of electromagnetic induction, featuring an internationally advanced level of technology. Its design incorporates extensive long-term field experience, delivering high reliability, stability, and repeatability. The instrument consists of two main components: the electromagnetic flow sensor and the intelligent converter. The sensor comprises a measuring tube, electrodes, a liner, and excitation coils. Its primary function is to generate an induced electromotive force (EMF) proportional to the flow velocity, and to transmit this EMF signal to the converter via cables for intelligent processing. The converter outputs analog DC signals corresponding to the measured flow rate, as well as cumulative pulse signals and other outputs.

Product Description

The measurement results are independent of physical parameters such as flow velocity distribution, fluid pressure, temperature, density, and viscosity.
The measurement range can be adjusted online on-site based on the user's actual needs.
Measurements are not affected by changes in fluid density, viscosity, temperature, pressure, or conductivity.
The measurement pipeline contains no moving parts and experiences no pressure loss; the requirements for straight pipe sections are low, and there is virtually no additional pressure loss during measurement.
Electromagnetic flow sensors can be equipped with grounding electrodes to ensure proper grounding of the instrument.
The electromagnetic flow sensor utilizes advanced manufacturing processes, giving the instrument excellent resistance to negative pressure.
Fully digital processing, high resistance to interference, reliable measurements, and high accuracy.
High-definition backlit LCD display with a fully Chinese-language menu; easy to use and simple to operate, with clear readings visible both in bright sunlight and at night.
It features bidirectional flow measurement and bidirectional totalization capabilities, with bidirectional output for current and frequency.

Selection of Electrode Materials

Electrode Materials	Code Name	Corrosion Resistance
316L Stainless Steel	L	For use with mildly corrosive media such as industrial water, domestic water, and wastewater, as well as neutral solutions and weak acids such as carbonic acid and acetic acid.
Titanium	Ti	Resistant to corrosion by seawater, various chlorides and hypochlorites, and various hydroxides.
Hastelloy C	Hc	Resistant to oxidizing acids, such as nitric acid, mixed acids, and mixtures of chromic acid and sulfuric acid. It is also resistant to corrosion in environments containing oxidizing salts or other oxidizing agents. It exhibits good corrosion resistance to seawater, alkaline solutions, and oxide solutions.
Hastelloy B	Hb	It exhibits good corrosion resistance against non-oxidizing acids such as sulfuric acid and phosphoric acid, as well as alkalis and salts.
Tantalum	Ta	With the exception of hydrofluoric acid, it is resistant to corrosion by almost all chemical media. Due to its high cost, it is used only for hydrochloric acid and concentrated sulfuric acid.
Tungsten Carbide	W	It offers excellent wear resistance and is specifically designed for abrasive media such as slurry and pulp.

Selection of Lining Materials

Lining Material	Corrosion Resistance	Operating Temperature	Scope of Application
Chloroprene Rubber (CR)	Resistant to corrosion by generally low-concentration acids, alkalis, and salts.	0~70℃	For industrial water, wastewater, and low-concentration acid, alkali, and salt solutions. Maximum temperature up to 95℃ as required. CR lining material available for sizes DN50 to DN2000.
Fluorinated Ethylene Propylene (FEP)	It offers excellent heat and corrosion resistance, high mechanical strength, and good wear resistance; the lining is not easily damaged when the surface is cleaned.	-20~100℃	All fluids, except for highly abrasive media such as mortar, can be used in applications with sanitary requirements, such as drinking water systems, and can withstand temperatures up to 180℃ as required. FEP lining material is available for sizes ranging from DN6 to DN400.
Polytetrafluoroethylene (PTFE)	It is resistant to corrosion by almost all chemical agents, but has poor wear resistance.	-40~150℃	Not suitable for use in negative-pressure pipelines or with highly abrasive fluids. PTFE lining is available for sizes DN25 through DN1000.

Product Specifications

Product Model	LDG Series (Compact)
Valve Body Material	Carbon Steel
Lining Material	Chloroprene Rubber (CR)
Electrode Material	SUS316 Stainless Steel
Power Supply Voltage	AC220V / DC24V
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, wastewater, low-concentration acid, alkali, and salt solutions, etc.
Operating Temperature	≤70℃

Product Size Guide

Nominal Diameter	L	H	B	b	ΦK	n-Φd	ΦD
DN20	160	254	185	135	75	4-Φ14	105
DN25	160	254	185	135	85	4-Φ14	115
DN32	160	270	185	135	100	4-Φ18	140
DN40	200	280	185	135	110	4-Φ18	150
DN50	200	294	185	135	125	4-Φ18	165
DN65	200	313	185	135	145	8-Φ18	185
DN80	200	326	185	135	160	8-Φ18	200
DN100	250	344	185	135	180	8-Φ18	220
DN125	250	372	185	135	210	8-Φ18	245
DN150	300	403	185	135	240	8-Φ22	285
DN200	350	460	185	135	295	12-Φ22	340
DN250	400	511	185	135	350	12-Φ22	390
DN300	500	565	185	135	400	12-Φ22	440
DN350	500	620	185	135	460	16-Φ22	500
DN400	600	675	185	135	550	16-Φ22	565
DN450	600	727	185	135	565	20-Φ26	615
DN500	600	782	185	135	620	20-Φ26	670
DN600	600	782	185	135	725	20-Φ30	780
DN700	700	1068	185	135	840	24-Φ30	895
DN800	800	1157	185	135	950	24-Φ34	1010
DN900	900	1230	185	135	1050	28-Φ34	1110
DN1000	1000	1332	185	135	1160	28-Φ36	1230
