A Detailed Overview of Check Valve Types and Their Applications

Check Valve play a critical role in industrial and residential fluid systems; they come in a wide variety of types and are used in a diverse range of applications.

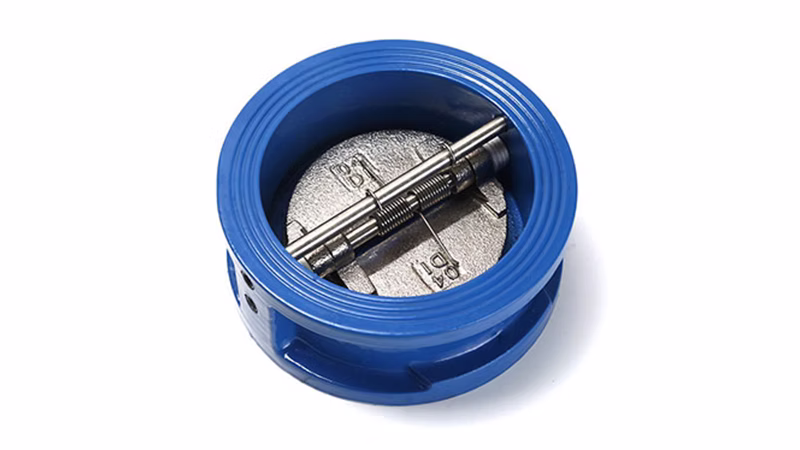

In terms of structural types, check valves are generally classified into two main categories: Swing Check Valve and lift check valves. Swing check valves are further subdivided into single-disc, double-disc, and multi-disc types. Among these, single-disc swing check valves have a relatively simple structure and are suitable for small- to medium-diameter pipelines and fluid systems with low flow rates, such as common water supply and drainage pipelines, where they effectively prevent water hammer from damaging equipment. Double-disc and multi-disc swing check valves, on the other hand, can handle higher flow rates and pressure fluctuations and are typically used in high-flow industrial pipelines, such as liquid transfer pipelines in chemical production.

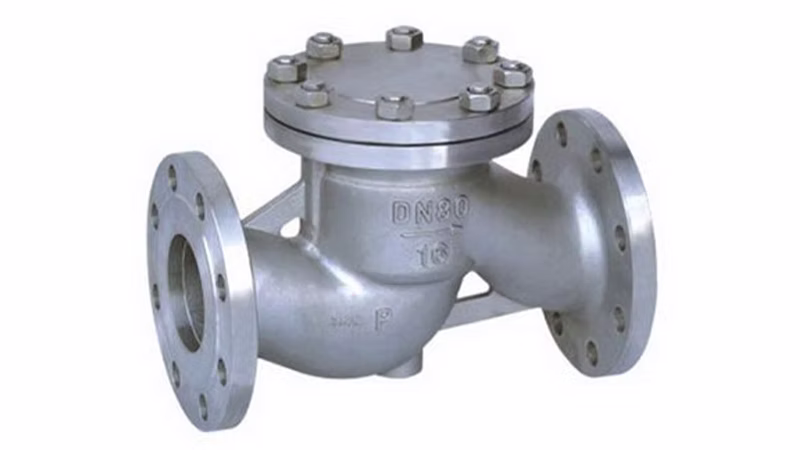

Lift Check Valve are classified into two types: vertical and horizontal. Vertical lift check valves are suitable for vertical piping, particularly in systems where the medium flows upward—such as hot water supply systems and heating systems—where they effectively prevent backflow of hot water. Horizontal lift check valves, on the other hand, are suitable for horizontal piping and are commonly used at branch connections in large-scale oil and natural gas long-distance transmission pipelines to ensure the normal flow of the medium within the main pipeline.

In terms of materials, check valves are available in various types, including cast iron, cast steel, and stainless steel. Cast iron check valves are relatively inexpensive and are typically used in building plumbing systems where corrosion resistance is not a major concern. Cast steel and stainless steel check valves, on the other hand, can withstand higher pressures and temperatures and offer excellent corrosion resistance; as a result, they are widely used in industries such as chemicals and power generation, where strict requirements regarding the properties of the medium are essential.

Although there are many types of check valves, their core function remains the same: to prevent backflow of fluids and ensure stable system operation. Different types of check valves are designed to better adapt to various complex operating conditions and media environments.
