The Role of Diaphragm Pump Safety Valve: Ensuring System Stability

A diaphragm pump Safety Valve is a safety protection device installed at critical points on the pump body or piping. Its primary function is to automatically activate when system pressure exceeds a preset safety limit, thereby relieving pressure and serving as the final line of defense for ensuring the stable operation of the entire conveyance system. Understanding and correctly applying safety valves is crucial for preventing equipment damage due to overload, reducing unplanned downtime, and avoiding media leakage incidents. This article will provide an in-depth analysis of the working principles and core protective functions of safety valves, offering clear guidelines for valve selection under various operating conditions. It will also provide a step-by-step explanation of their correct installation locations, routine maintenance methods, and rapid response strategies for common malfunctions. Finally, through real-world case studies, it will demonstrate how a scientifically designed safety valve configuration can translate theoretical safety protection into tangible improvements in system stability and economic benefits.

Understanding the role of safety valves helps improve system stability, extend equipment lifespan, and reduce the costs associated with potential hazards.

I. Definition of Diaphragm Pump Safety Valve: Principles and Core Functions

A diaphragm pump safety valve is a device used to limit or relieve excess pressure, typically installed on the pump body, discharge line, or at critical points in a pump station. Its operating principle is straightforward: when system pressure exceeds a preset value, the safety valve opens to discharge excess fluid or divert pressure back to the storage tank or a bypass line; it automatically closes once pressure returns to normal. Its core functions include:

Overvoltage Protection

Prevent diaphragm rupture, valve seat damage, or pipe bursts;

Preventing Backflow and Water Hammers

Under special operating conditions, safety valves can mitigate instantaneous pressure spikes;

Ensuring Process Stability

Maintain the set pressure range to ensure the stable operation of downstream equipment and processes;

Personal and Environmental Safety

Prevent high pressure from causing media leaks or the release of hazardous chemicals.

II. Main Types of Safety Valve and Key Considerations for Selection and Matching

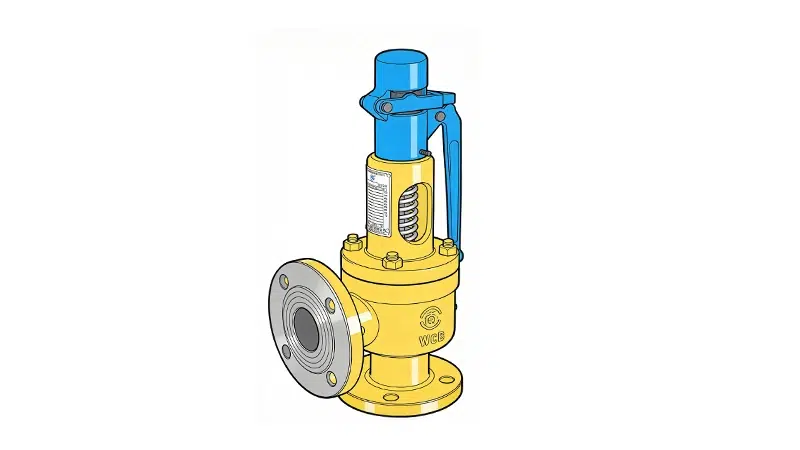

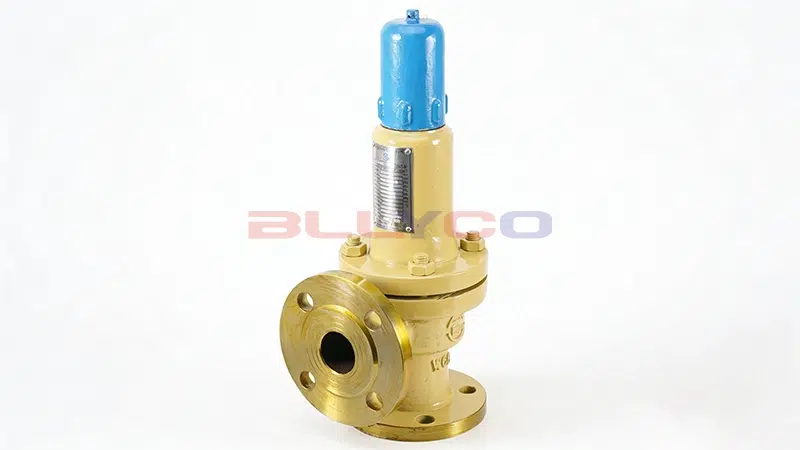

Types of Safety Valves and Selection Guidelines There are many types of safety valves on the market, with the most common being spring-loaded, weight-lever, pilot-operated, and open-type valves. When selecting a safety valve for a diaphragm pump, the following points should be considered:

Set Pressure

The opening pressure of the safety valve is determined based on the pump’s maximum allowable operating pressure and system conditions, typically with a certain safety margin;

Traffic Capacity

When a safety valve opens, it must be able to rapidly release sufficient flow to suppress overpressure; insufficient flow may cause the valve to oscillate frequently;

Material Compatibility

The choice of valve body and sealing materials (such as stainless steel, alloys, PTFE, etc.) is determined by factors such as the corrosiveness of the medium, solids content, and temperature;

Response Time and Reset Characteristics

For systems sensitive to transient high pressure, select a valve type with fast response and reliable reset;

Blocking Design

For media containing particles or viscous substances, select a clog-resistant design or a system equipped with a filter or bypass device.

III. Typical Use Cases and Practical Value

Chemical and Pharmaceutical

When transporting highly corrosive liquids, safety valves reduce the risk of leaks caused by overpressure and protect critical process equipment;

Wastewater and Water Supply and Drainage

To prevent damage to the pump caused by air being drawn into the pump or sudden pressure surges in the piping system, while also reducing the incidence of overflow incidents;

Food and Beverage

Ensure stable pressure under hygienic conditions to prevent contamination or rupture of sealed containers due to overpressure;

Oil and Gas

In high-pressure transmission systems, safety valves serve as the last line of defense for both equipment and operators.

IV. Summary of Key Considerations When Making a Purchase

When purchasing or upgrading a diaphragm pump system, consider safety valves an indispensable component. When evaluating them, look beyond just the valve specifications; also take into account on-site operating conditions, maintenance capabilities, and emergency response plans. The next section will provide practical advice and real-world examples regarding installation, maintenance, and troubleshooting common issues, helping you turn “theoretical protection” into “on-site reliability.” Stay tuned to learn the detailed techniques that will make your diaphragm pump system as solid as a rock.

V. Installation Guidelines: Ensure That the Safety Valve Is in the “Correct Position”

Even if the safety valve is selected with the utmost precision, improper installation can compromise its effectiveness. When installing the valve, follow these practical guidelines:

Site Selection

Valves should be located in positions that are easily visible and accessible for maintenance, and where liquid accumulation or air locks can be avoided;

Piping Design

Inlet and outlet piping should be as short and straight as possible to minimize resistance and stagnation;

Emissions-Driven

Discharge outlets should be equipped with appropriate deflectors or recovery pipes to prevent the medium from splashing directly or causing injury to personnel.

Preventive Measures

For media containing particles, it is recommended to install a filter or a blind flange upstream of the safety valve to reduce the risk of jamming.

VI. Maintenance and Inspection: Extending Service Life and Preventing Potential Hazards

Although safety valves are passive safety devices, they still require regular inspection and maintenance. Recommended routine maintenance includes:

Periodic Functional Testing

Simulate overpressure conditions to verify the reliability of valve opening and reset;

Cleaning and Sealing Inspection

Check key components such as the valve seat, springs, and diaphragms for corrosion or wear, and replace the seals if necessary;

Calibration Set Pressure

After prolonged operation, the set pressure may drift; perform regular calibration to ensure the valve operates as intended;

Recording and Tracking

Maintain a maintenance log to record each test, malfunction, and replacement of parts for long-term management.

VII. Troubleshooting Common Issues and Quick Solutions

When an issue arises, quick assessment and resolution can minimize losses. Common issues and troubleshooting approaches:

The Valve Won't Open

Check whether the set pressure is too high, the spring has failed, or the valve seat is stuck; for media containing sediment, check for blockages;

Frequent Valve Tripping

This may be due to excessive fluctuations in system pressure or a valve setpoint that is too close to normal pressure. Consider improving system pressure stabilization or adjusting the setpoint and bypass strategy;

Leakage or Incomplete Discharge

Replace the seal if it has aged or the valve seat is worn; if there is excessive resistance in the discharge line, optimize the routing or increase the diameter.

VIII. Case Study: Small Changes, Big Results

When a wastewater treatment plant was retrofitting its diaphragm pump station, the original design did not adequately account for backflow and transient pressure. During the initial operation phase, several diaphragm ruptures occurred, resulting in high downtime rates. Following an on-site assessment, the technical team installed spring-loaded safety valves with bypasses at the outlet of each diaphragm pump, while also installing coarse filters upstream of the valves and optimizing the discharge pipe diameter. After the retrofit, overpressure incidents virtually disappeared, diaphragm lifespan was significantly extended, and operational and maintenance costs were reduced.

This case study demonstrates that the proper installation of safety valves is not merely a passive requirement for safety compliance, but rather a proactive investment that directly enhances economic efficiency.

IX. Conclusion

Conclusion and Recommendations: In a diaphragm pump system, a safety valve is more than just a “valve”; it acts as a silent guardian. Proper selection, scientific installation, and regular maintenance can transform equipment protection from a reactive response to accidents into proactive risk management. If you are experiencing pump station instability, frequent diaphragm replacements, or concerns about high-pressure hazards, consider starting with an assessment of your safety valve configuration—a seemingly simple adjustment can often yield long-term and significant benefits.
