Brass Ball Valve Size Comparison Chart: A Complete Guide to Selection and Application

In modern buildings and plumbing systems, Brass Ball Valve are widely used in various applications—such as water supply, drainage, and heating—due to their excellent corrosion resistance and sealing performance. For professional plumbing engineers and home renovators, understanding the size reference chart for brass ball valves not only helps them select the right valves but also ensures the proper operation of the plumbing system. When selecting a brass ball valve, precise sizing is crucial; an incorrect choice may lead to problems such as leaks and poor sealing, which can compromise the safety and efficiency of the plumbing system.

The copper ball valve size reference table is organized according to different valve types, operating pressures, and connection methods. It covers various aspects, including nominal diameter, overall dimensions, threaded connections, and flanged connections. To help you better understand how to select and use copper ball valves, we’ll start by covering their common sizes and classifications.

The nominal diameter of a brass ball valve is generally selected based on the pipe’s inner diameter. For example, common sizes for brass ball valves include 1/2 inch, 3/4 inch, 1 inch, and 1 1/4 inch; these sizes correspond to the pipe’s inner diameter or connection size. When selecting a brass ball valve, you must ensure that the ball valve’s nominal diameter matches the pipe’s inner diameter; otherwise, problems such as restricted flow and pressure loss may occur. The external dimensions and installation method of a brass ball valve should also be selected based on actual requirements, as different installation methods can affect the ball valve’s external dimensions.

I. Common Connection Methods for Brass Ball Valves

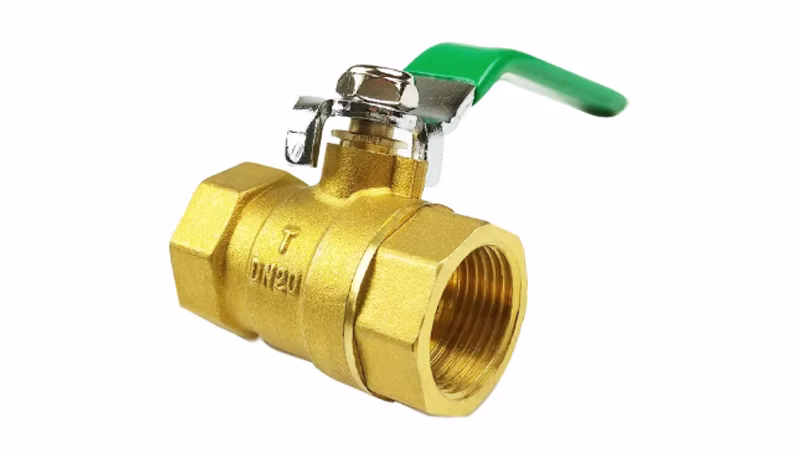

1.Internal Threaded Connection

This connection method is commonly used in small-diameter valves; it is easy to install and suitable for household plumbing and small piping systems.

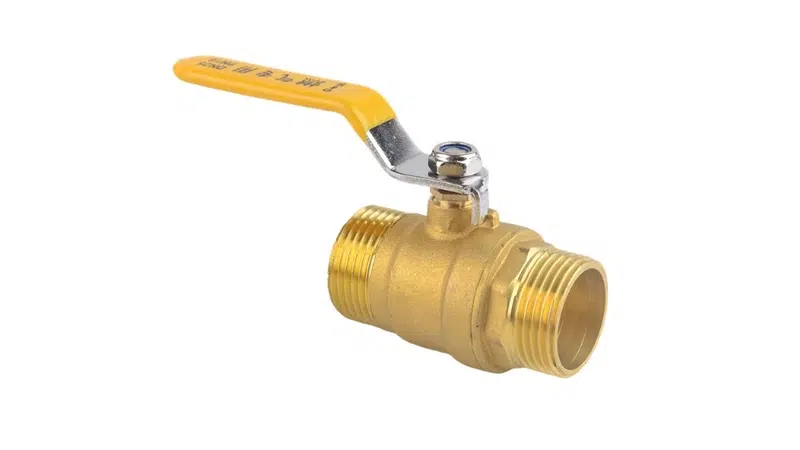

2.External Threaded Connection

Brass ball valves with external threaded connections are commonly used in large piping systems, where they provide more reliable sealing performance.

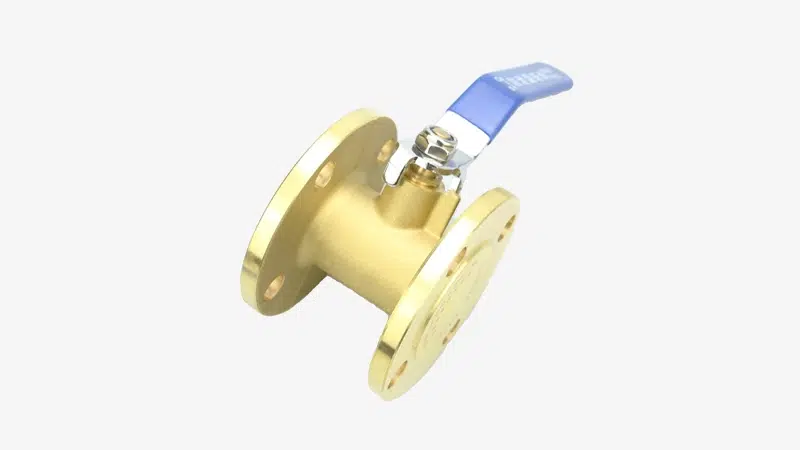

3.Flanged Connection

Flanged brass ball valves are commonly used in industrial and commercial piping systems because of their robust construction, excellent sealing performance, and ability to withstand high pressures.

By understanding the connection methods and dimensions of brass ball valves, you can better select the right one for your needs, ensuring the safety and efficiency of your system.

II. Important Notes for Selecting Brass Ball Valves

1.Sealing Performance and Material Requirements

The sealing performance of brass ball valves is also a key factor to consider when making a purchase. Brass ball valves control pipeline flow through the rotation of the ball, so their sealing performance directly affects the smooth flow of water in the piping system and the risk of leaks. Brass ball valves typically use high-performance sealing materials such as PTFE and FPM, which offer excellent resistance to aging, high temperatures, and corrosion, effectively ensuring the long-term reliability of the valves.

2.Quality Selection and the Importance of Brands

When selecting brass ball valves, in addition to size and connection method, another factor that should not be overlooked is the quality of the ball valve. With so many brands of brass ball valves on the market and quality varying widely, choosing a well-known brand can significantly reduce maintenance costs and operational risks caused by quality issues. Well-known brands of brass ball valves not only use high-quality brass but also adhere to stricter standards in manufacturing processes and sealing technology, ensuring the stability and reliability of the ball valves.

3.Selection Considerations for Different Application Environments

When selecting a brass ball valve, it is also necessary to determine the valve’s material and specifications based on the specific application environment. For example, when used in highly corrosive environments, a brass ball valve made of corrosion-resistant brass can be selected; whereas for high-temperature, high-pressure environments, a special brass ball valve capable of withstanding high temperatures and pressures must be chosen.

4.Selecting an Operating Mode

The operating method of brass ball valves is another factor to consider when making a purchase. Currently, brass ball valves on the market are primarily available in two types: manually operated and automatically controlled. Manually operated brass ball valves are suitable for general households and small commercial buildings, while automatically controlled brass ball valves are suitable for industrial applications and complex piping systems that require remote control. Automatically controlled brass ball valves are typically equipped with electric actuators, allowing the valve to be opened and closed via an external control system, making them ideal for piping systems that require frequent operation and remote control.

5.Maintenance and Usage Recommendations

In addition to basic dimensions and materials, the maintenance of brass ball valves is also an important consideration for long-term use. Regularly inspecting the operating condition of brass ball valves, promptly cleaning dirt from the valve surface, and avoiding prolonged exposure to high-pressure or high-temperature environments will all effectively extend the service life of brass ball valves.

III. Conclusion

Overall, brass ball valves play a crucial role in plumbing systems. Choosing the right size, understanding the valve’s characteristics, and ensuring quality can help users avoid many potential problems during installation and use. Selecting the appropriate valve based on the brass ball valve size reference chart ensures the efficient operation of the piping system, enhances the safety and stability of the plumbing system, and provides a more reliable water supply for your home or business.

After reading this article, we believe you now have a more comprehensive understanding of the brass ball valve size reference chart. When selecting a valve in the future, simply choose the appropriate size and material based on your needs to ensure a perfect fit and efficient operation of your brass ball valve.
