An Analysis of the Differences Between Brass Gate Valves and Brass Globe Valves: Choosing the Right Valve Is Crucial

Brass Gate Valve and Brass Globe Valve are two common types of valves used in piping systems. Although both are used to control the flow of fluids, they differ significantly in how they work and their scope of application. In practical applications, selecting the right valve can effectively enhance the safety and service life of a piping system. What exactly are the differences between brass gate valves and brass globe valves? How should you determine which one to choose? This article will explain it all.

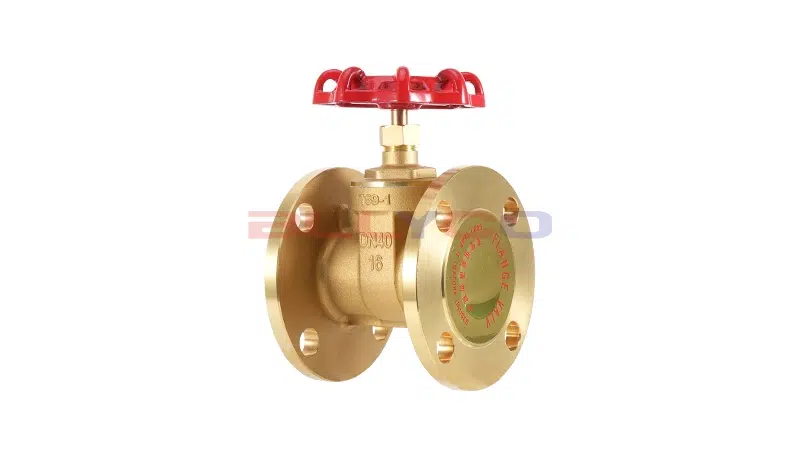

I. Features and How It Works for Brass Gate Valves

Brass gate valves are mainly used for controlling the passage of fluids in pipelines. Their working principle is relatively simple: the flow is controlled by lifting and lowering the gate, which moves perpendicular to the fluid direction. When the gate is fully open, fluid passes freely and the pipeline is completely open; when the gate is fully closed, fluid cannot pass and the pipeline is completely isolated. Due to the structural design of the gate valve, brass gate valves have low fluid resistance and are suitable for fully open or fully closed operation.

Common applications for brass Gate Valves include water, gas, and heating systems, where they provide fast and complete shutoff. The material of brass makes these valves highly resistant to corrosion and abrasion, and they can be adapted to a wide range of working conditions, and are particularly common in domestic or small industrial pipelines.

Advantages of Brass Gate Valve

High corrosion resistance: brass has excellent corrosion resistance, especially for water systems or fluids containing corrosive substances.

Simple structure, easy to operate: the structure of the brass gate valve is relatively simple, easy to open and close, and requires almost no special maintenance.

Long service life: the wear resistance of brass makes the brass Gate Valve able to operate stably for a long time, reducing the cost of frequent replacement.

Disadvantages of Brass Gate Valve

Limited flow regulation: the regulation function of brass gate valve is relatively weak, more suitable for full open or full close operation, not suitable for use in occasions where precise flow regulation is required.

Bulky: brass gate valves are bulky and may not be optimal for piping systems that require compact space.

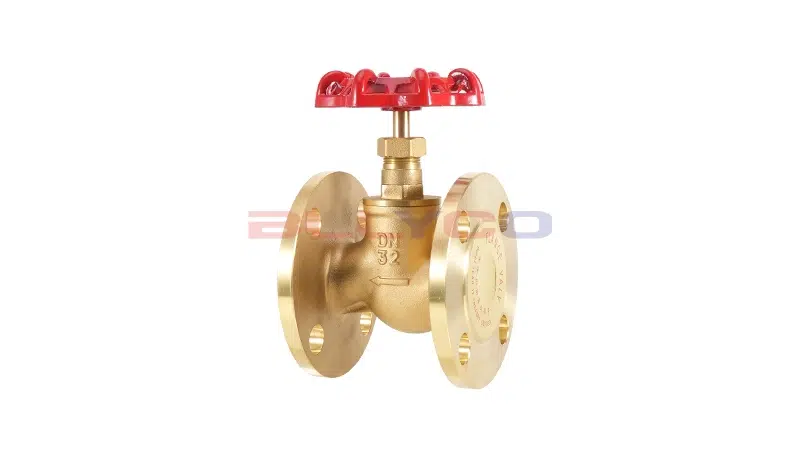

II. Features and How It Works of Brass Globe Valve

The main function of a brass globe valve is to control the flow of fluid. Its working principle is significantly different from that of a brass gate valve. The globe valve adopts a sealing design in which the valve seat and valve disc come into contact, and the valve disc rotates up and down via the screw to gradually close or open the flow path, thereby regulating the fluid flow. Unlike a brass gate valve, a brass globe valve allows for fine adjustment in flow control and can effectively respond to a wide range of changing flow requirements.

Globe valves are suitable for applications requiring precision flow regulation due to their good sealing properties, and are widely used in piping systems, especially in the control of fluids such as steam, oil, gas, and cooling water. The design of the brass globe valve allows it to not only provide better sealing performance but also ensure flow stability.

Advantages of Brass Globe Valve

Precise flow control: brass globe valves are capable of fine adjustment of flow on demand, suitable for those applications where precise control of fluid flow is required.

Good sealing: brass globe valves usually have good sealing to ensure that fluids in the piping system do not leak.

Flexible operation: the valve position can be regulated by rotating the handwheel, making operation more convenient.

Disadvantages of Brass Globe Valve

Longer opening time: the opening and closing of a brass globe valve requires more rotation of the handwheel, which is a slower action compared to the quick opening of a brass gate valve.

Complexity: brass globe valves require more components for flow regulation, making them more complex and potentially requiring more maintenance than brass gate valves.

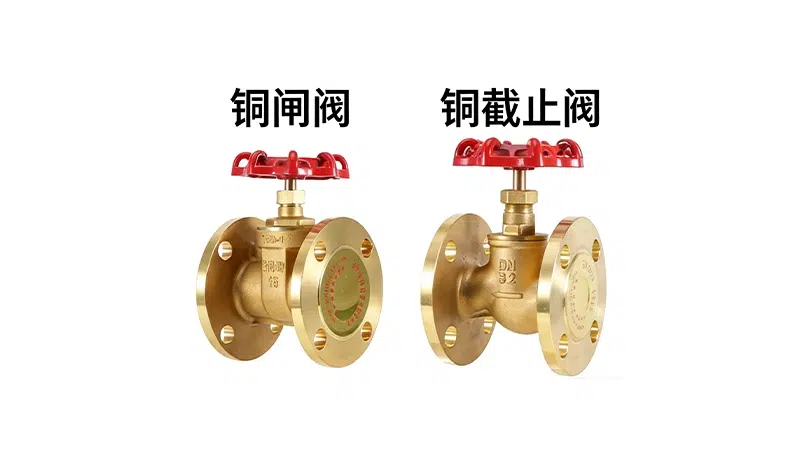

III. Comparative Analysis of Brass Gate Valve and Brass Globe Valve

Brass gate valves and brass globe valves each differ in design and function, which gives them their own advantages and limitations in practical applications. When choosing between these two types of valves, it is crucial to understand their differences. Below, we compare them in a few key areas to help you make a more informed choice.

Functions and Uses

Brass gate valves are mainly used for on/off control of pipelines, suitable for fully open or fully closed operation, and cannot precisely adjust the flow rate.

Brass globe valves are more focused on flow regulation and are suitable for applications that require fine flow control.

Opening Methods

Brass gate valves open faster and are suitable for emergency closing situations.

Brass globe valves open and close slowly, requiring the valve disc to be regulated by rotating the handwheel.

Sealing Performance

Brass globe valves generally provide good sealing performance, and they perform exceptionally well in high-pressure environments.

Brass gate valves have relatively poor sealing performance and are suitable for low-pressure applications and moderate flow rates.

Durability and Maintenance

Due to their simple structure and low maintenance costs, brass gate valves are suitable for long-term use.

Brass globe valves have a relatively complex structure and require regular inspection and maintenance, but they provide long-term flow control accuracy.

IV. How to Choose the Right Valve

Choosing the right valve for your needs is crucial. If you have a piping system that needs to open and close quickly and doesn't require much in the way of flow regulation, a brass gate valve is definitely a good choice. If you need to precisely regulate the flow in your pipeline or use it in high-pressure and complex fluid environments, a brass globe valve is more suitable.

By understanding the characteristics of copper gate valves and brass globe valves, you can make the most suitable choice according to the actual use scenario to ensure the long-term stable operation of the system.

As we continue our discussion on the selection of brass gate valves vs. brass globe valves, we also need to examine some common real-world application scenarios and how each valve performs in them.

V. Application Scenarios of Brass Gate Valve and Brass Globe Valve

Domestic Water Supply Systems

In household water supply systems, brass gate valves are usually used for the on/off control of the main water pipe. Since the control of water flow does not need to be precisely regulated, and full opening and closing operations are more convenient and efficient, gate valves are widely used in household water pipelines. Especially during home plumbing repairs or emergency shutdowns, gate valves can quickly disconnect the water flow to avoid waste and loss.

Industrial Piping Systems

In industrial pipelines, brass globe valves are widely used in chemical, pharmaceutical, petroleum, and other fields that require precise control of fluid flow, due to their ability to provide accurate flow regulation. Globe valves can flexibly adjust the flow rate according to demand to ensure the normal operation of each piece of equipment, and their performance is particularly outstanding in high-pressure environments.

Heating System

The piping in a heating system requires precise flow regulation to ensure consistent temperatures in different zones. Brass globe valves provide precise regulation in such systems to ensure a consistent flow of hot water, thus improving the heating effect.

Fire Protection System

In fire protection systems, brass gate valves are commonly used for emergency shutoff of water supply lines. Due to their fast opening speed, gate valves can quickly cut off the water flow and play a vital role at a fire scene. Brass globe valves can also be used to regulate the flow of firefighting water to meet different needs.

VI. Summary and Selection Recommendations

Copper gate valves and copper globe valves each have unique advantages and limitations, and selection decisions should be based on the actual needs of the piping system. A brass gate valve is ideal if fast on/off control is needed and flow regulation is not required, while a brass globe valve is more suitable if precise flow regulation is required and sealing is ensured. Understanding the differences between these two types of valves can help you better select the valve product that suits your needs, thereby improving the operational efficiency and safety of your piping system.

We hope that through the analysis in this article, you can gain a better understanding of copper gate valves and copper globe valves, and make a wise choice to ensure that your piping system operates efficiently and reliably.
