The Difference Between Wafer-Type and Flanged Butterfly Valve

Wafer-Type Butterfly Valve and Flanged Butterfly Valve are both common types of butterfly valves widely used in various fields of industrial fluid control systems. Although their core functions are the same, they differ significantly in structural design and installation methods, and these differences also lead to variations in their specific applications. This article will provide an in-depth analysis of the differences between wafer-type and flanged butterfly valves.

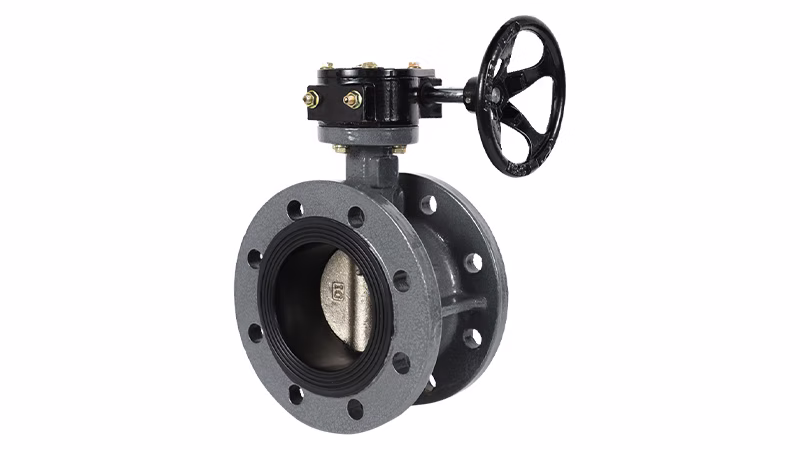

First, the differences between wafer-type butterfly valves and flanged butterfly valves are immediately apparent. Wafer-type butterfly valves are sandwiched between two pipe flanges; the valve body is secured by clamping both ends to the pipe flanges with bolts. This installation process is simple and quick, facilitating rapid disassembly, assembly, and maintenance, making it particularly suitable for situations with limited space or where frequent valve replacement is required. In contrast, flanged butterfly valves feature pre-fabricated flanges at both ends of the valve body, which must be mated with pipe flanges and secured with bolts. This design enhances connection stability, making them more suitable for applications in high-pressure environments.

Second, in terms of sealing performance, flanged butterfly valves typically provide superior sealing due to their tighter and more secure connections, particularly in high-pressure environments. In contrast, while wafer-type butterfly valves also offer excellent sealing performance, their stability may not match that of flanged butterfly valves when operating under extreme high-pressure conditions.

In terms of cost, maintenance, and installation, wafer-type butterfly valves, with their simple structure and lightweight design, are generally easier to install and maintain than flanged butterfly valves. The convenience of wafer-type butterfly valves makes them widely used in systems requiring frequent replacement or maintenance. Although the installation process for flanged butterfly valves is relatively complex and time-consuming, their robust design ensures reliability during long-term operation, making them particularly suitable for applications where the valve is not frequently disassembled after installation.

Finally, from an application perspective, wafer-type butterfly valves are widely used in ventilation systems, water treatment facilities, and light industrial production due to their ease of installation and high cost-effectiveness. Flanged butterfly valves, on the other hand, are better suited for industries such as petrochemicals, power generation, and utilities—particularly in systems with high operating pressure requirements—due to their superior sealing performance and pressure resistance.
