Selection and Application of Gate Valve, Ball Valve, Globe Valve, and Butterfly Valve: Helping Businesses Boost Production Efficiency

Through a detailed analysis of four common types of industrial valves—gate valves, ball valves, globe valves, and butterfly valves—this article provides enterprises with a guide to selecting the right valves, helping to improve production efficiency and ensure the safe and stable operation of piping systems.

With the rapid development of modern industry, valves are being used more and more widely in various production and piping systems. Valves are not only indispensable control components in piping systems; they also play a crucial role in ensuring the normal operation of production equipment, improving system efficiency, and guaranteeing production safety. Among the many types of valves, gate valves, ball valves, globe valves, and butterfly valves—which are common and serve different functions—are widely used across various industries. How can one select the most suitable valve based on specific requirements?

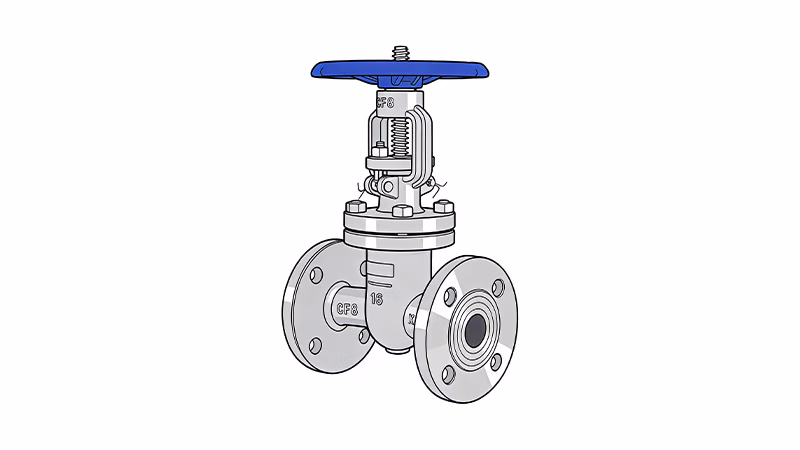

I. Gate Valve: Reliable Shut-off Control

As the name suggests, gate valves are primarily used for shutoff and flow control of fluids. They operate by raising or lowering a gate to open or close the flow path. When fully open, the valve offers virtually no resistance to fluid flow, allowing for high flow rates, making it suitable for applications where the valve remains fully open or fully closed for extended periods. Typically, gate valves are used in applications requiring either complete flow interruption or full flow passage; therefore, they are suitable for water, gases, and other fluids that do not contain solid particles.

The primary advantage of gate valves lies in their excellent sealing performance; their sealing surfaces can withstand high operating pressures, making them widely used in high-pressure piping systems. Compared to other types of valves, gate valves are generally not suitable for flow regulation, as opening and closing them can cause severe fluid impact, which can easily damage the valve body.

Gate valves operate relatively slowly, requiring a considerable amount of time to open or close. Therefore, they are not well-suited for applications that require rapid opening and closing. Typical applications include municipal water supply systems and petrochemical transmission pipelines.

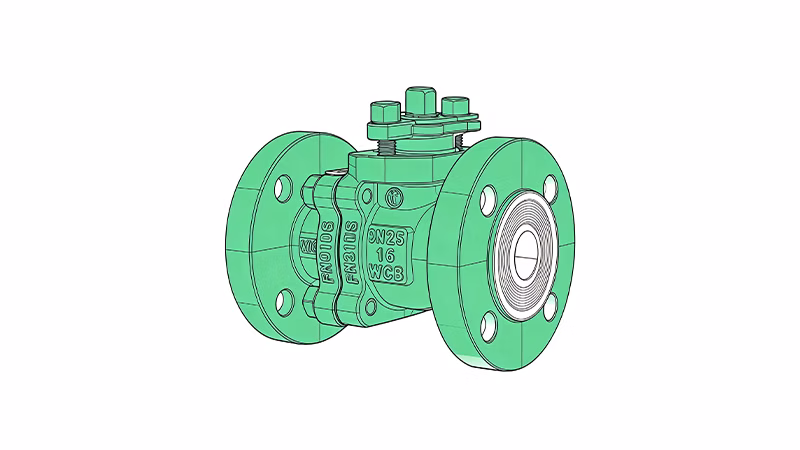

II. Ball Valve: Efficient and Rapid Flow Control

A ball valve is a type of valve designed for rapid opening and closing; it operates by rotating the ball to control the flow of fluid through the passageway. The core component of a ball valve is a spherical body, and flow is regulated by adjusting the position of the ball. With its compact design, rapid operation, and excellent sealing performance, the ball valve is a highly efficient type of valve.

Ball valves are commonly used for regulating and controlling the flow of liquids and gases, and are particularly suitable for applications requiring frequent on-off cycling or rapid opening and closing. Ball valves feature both soft and hard sealing surfaces, enabling them to meet the demands of various media and operating environments. Furthermore, ball valves ensure a complete seal when fully open or fully closed, reducing the risk of leakage and making them suitable for harsh operating environments.

Compared to gate valves, ball valves offer greater flexibility and speed of operation, particularly when it comes to controlling and adjusting flow. Ball valves can be quickly moved to any position for precise regulation. They are widely used in piping systems across industries such as petroleum, natural gas, power generation, chemicals, and food processing, and are particularly well-suited for applications requiring rapid opening and closing, such as automated control systems and systems with high-frequency operations.

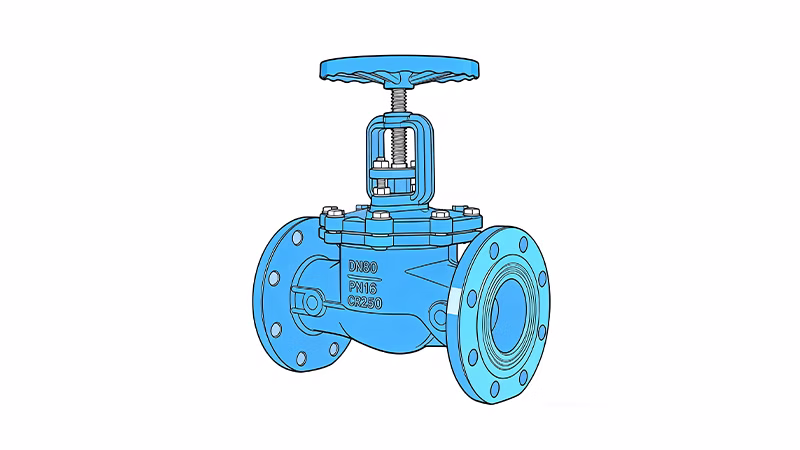

III. Globe Valve: Precise Flow Control

Globe valves are the most widely used type of valve in fluid control. Their primary feature is the ability to precisely regulate flow by adjusting the contact between the plug and the seat. Globe valves are often used in applications that require high control accuracy and frequent opening and closing. Unlike gate valves, globe valves have a more complex structure and require greater torque to open and close, resulting in relatively slower opening and closing speeds.

The advantage of globe valves lies in their ability to provide precise regulation across a wide range of flow rates, making them particularly suitable for applications that demand high-precision flow control, such as the regulation of liquid and gas flow in industrial production. Due to their precise regulation capabilities, globe valves are widely used in industries such as petrochemicals, pharmaceuticals, and food processing, and are especially well-suited for piping systems that require fine-tuned flow control.

The drawback of globe valves is that they open and close slowly and require considerable operating force; therefore, they may not be suitable for piping systems that require frequent operation. Globe valves have high fluid resistance, which can lead to excessive pressure loss when used in high-flow pipelines. Therefore, in applications with high flow rates, alternative valve types should be considered.

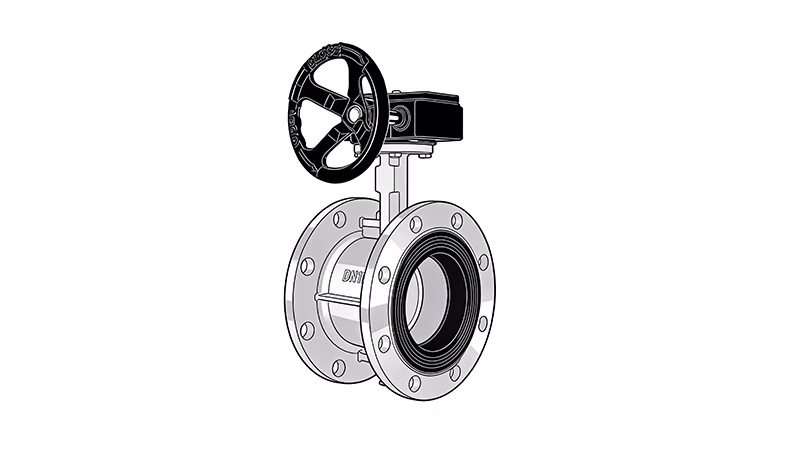

IV. Butterfly Valve: Cost-Effective Flow Control

Butterfly valves are energy-efficient valves widely used in applications involving large-diameter pipes, low pressure, and situations where flow regulation requirements are not particularly stringent. Butterfly valves work by rotating the disc to regulate the flow of fluid. Compared to ball valves, butterfly valves offer advantages such as compact size, light weight, and simple construction, and they perform exceptionally well in high-flow, low-pressure piping systems.

The primary advantages of butterfly valves lie in their lightweight design and energy efficiency, making them particularly suitable for large-diameter, high-flow fluid pipelines. Butterfly valves provide excellent flow control, and their superior sealing performance effectively prevents fluid leakage. With high corrosion resistance, they are suitable for highly acidic or alkaline media and are therefore widely used in the chemical, metallurgical, and water supply and drainage industries.

The disadvantage of butterfly valves is that they do not offer the same level of control precision as ball valves and globe valves; therefore, they are best suited for applications where flow rates do not vary significantly. If more precise flow control is required, it is advisable to select a different type of valve.

V. How to Choose the Right Valve

With so many types of valves available, how do you choose the one that best suits your production system? Selecting the right valve can not only improve production efficiency but also extend the service life of your piping system. The following points can serve as a guide when selecting a valve:

1. Fluid Properties and Operating Environment

Different valves are suitable for different fluids and operating conditions. For example, ball valves are suitable for regulating the flow of gases and liquids, while butterfly valves are suitable for large-diameter, low-pressure applications. Select the appropriate valve based on the fluid’s temperature, pressure, corrosiveness, and other characteristics.

2. Operating Frequency and Switching Speed

If a piping system requires frequent opening and closing, ball valves and butterfly valves are the better choices because they open and close quickly and are easy to operate. However, for applications that require a stable flow rate over long periods, gate valves are more suitable.

3. Flow Control Accuracy

If precise flow control is required, a globe valve is undoubtedly the best choice. It allows for relatively precise flow regulation and is suitable for production processes that require fine-tuned control.

4. Durability and Maintenance

The service life and maintenance costs of valves are also key factors to consider during the selection process. Ball valves and gate valves offer good sealing performance and are less prone to damage, whereas globe valves have a relatively complex structure and may be slightly more difficult to maintain.

5. Cost-Effectiveness

From a cost perspective, selecting the right valve requires considering not only the price of the valve itself, but also the long-term operating costs and maintenance expenses. Due to their simple design and lower cost, butterfly valves typically offer better value for money.

VI. Conclusion: Valve Selection as a Catalyst for Future Business Growth

Whether in the petroleum, chemical, power, food, or water treatment industries, valves play a critical role. Each type of valve is designed with unique advantages and specific applications; understanding their characteristics and scope of application can help companies make more informed decisions in their actual production processes.

Gate valves, ball valves, globe valves, and butterfly valves each have their own unique advantages and play crucial roles in various industries. Selecting the right valve not only improves production efficiency and reduces failure rates but also optimizes the overall performance of piping systems. It is our hope that the analysis in this article will help companies make more informed valve selections in their actual production processes, thereby laying a solid foundation for future growth.
