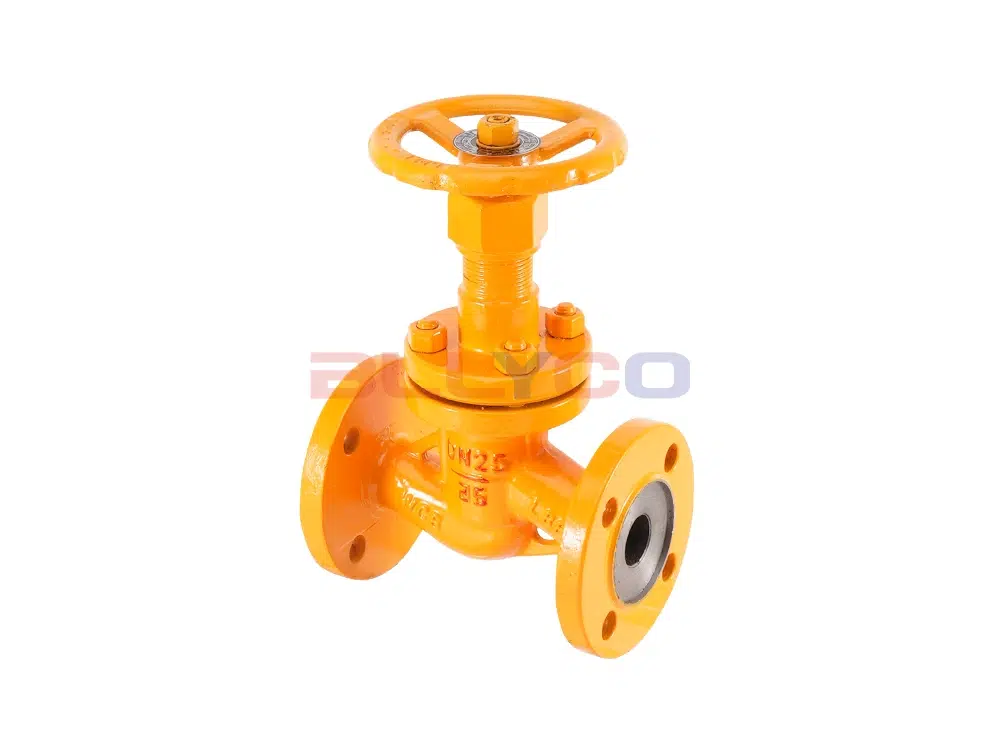

J41F gas flange disconnecting valve has the features of stable sealing performance, safe and reliable use, strong corrosion resistance, no media leakage, external leakage as well as light operation, etc. It has successfully solved the problem of poor corrosion resistance, easy to perforate the shell as well as poor sealing performance and easy to leakage of the ordinary valves for chemical pipelines. Especially suitable for chemical industry ammonia, gas pipeline transmission, and to meet the requirements of long-term reliable use of its sealing, maintainability, safety and so on. Widely used in freezing, refrigeration, chemical, petroleum, food, smelting, liquefied gas and other industries.
Product Features
- Aiming at the shortcomings of ordinary valves with poor corrosion resistance and easy perforation of the shell, according to the specific characteristics of the medium, the ammonia valve is made of corrosion-resistant steel (low-temperature carbon steel with added corrosion-resistant alloying elements), which can be resistant to ammonia and liquid ammonia corrosion, and the low temperature can be as low as -40 ℃, to ensure that the use of the working conditions to the maximum extent possible requirements.
- Gas flange disconnecting valve sealing vice pair structure type adopts ball, plane type, sealing automatic compensation, to achieve the effect of double insurance, stable sealing performance, no adhesive wear, effectively solve the chemical pipeline with ordinary valve sealing performance is poor, easy to leak the problem.
- The center flange of the product adopts a concave-convex sealing structure, which ensures absolutely reliable sealing of the center flange even under fluctuating pipeline pressure.
- Multi-stage PTFE sealing material is used in the upper sealing device to form a combination of sealing to ensure that the valve has no leakage of medium in the packing box during the service life, eliminating the possibility of weak sealing of the packing box of ordinary valves and easy leakage of medium, even causing accidents.
Product Parameters
Product Model | J41F-25C |
Valve body material | Cast Steel |
Nominal pressure | ≤2.5Mpa |
Applicable medium | Ammonia, Ammonia Liquid, etc. |
Applicable temperature | ≤150°C |

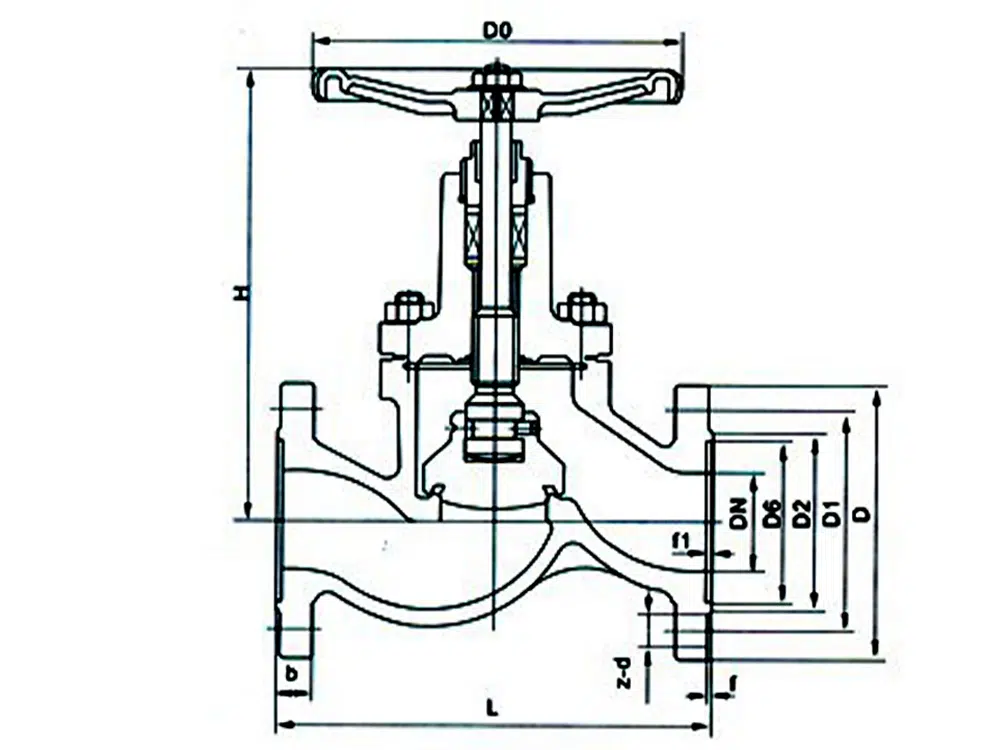

Product Size Reference
DN | L | D | D1 | D2 | D6 | b | f | f1 | z-d |
15 | 130 | 95 | 65 | 45 | 40 | 16 | 2 | 4 | 4-14 |
20 | 150 | 105 | 75 | 55 | 51 | 18 | 2 | 4 | 4-14 |
25 | 160 | 115 | 85 | 65 | 58 | 18 | 2 | 4 | 4-14 |
32 | 180 | 135 | 100 | 78 | 66 | 20 | 2 | 4 | 4-18 |
40 | 200 | 145 | 110 | 85 | 76 | 20 | 3 | 4 | 4-18 |
50 | 230 | 160 | 125 | 100 | 88 | 22 | 3 | 4 | 4-18 |
65 | 290 | 180 | 145 | 120 | 110 | 24 | 3 | 4 | 8-18 |
80 | 310 | 195 | 160 | 135 | 121 | 26 | 3 | 4 | 8-18 |
100 | 350 | 230 | 190 | 160 | 150 | 30 | 3 | 4.5 | 8-23 |
125 | 400 | 270 | 220 | 188 | 176 | 32 | 3 | 4.5 | 8-25 |
150 | 480 | 300 | 250 | 218 | 204 | 32 | 3 | 4.5 | 8-25 |
200 | 600 | 360 | 310 | 278 | 260 | 34 | 3 | 4.5 | 12-25 |
250 | 650 | 425 | 370 | 335 | 310 | 36 | 3 | 4.5 | 12-30 |
300 | 750 | 485 | 430 | 390 | 364 | 40 | 3 | 4.5 | 16-30 |
